Netgear

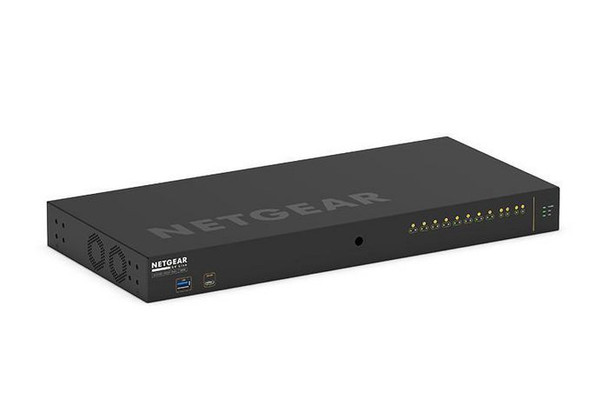

Netgear GSM4212P-111EUS 8X1G Poe+ 125W 2X1G And 2Xsfp GSM4212P-111EUS
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- GSM4212P-111EUS
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
Designed with input from industry professionals, this switch is engineered for 1G AV over IP. Enjoy rear-facing ports that ensure a clean integration in AV racks, and pre-configuration for out-of-the-box functionality.
POWERFUL AV SWITCHES MADE SIMPLE
Pre-configured to get you up and running faster
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for under-table or wall mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.
FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.
REFINED DESIGN PROVIDES MOUNTING FLEXIBILITY
Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.
Data transmission
Latency (1 Gbps)
2.27 µs
MAC address table
16000 entries
Store-and-forward
Yes
Switching capacity
24 Gbit/s
Throughput
17.86 Mpps
Design
Form factor
1U
LED indicators
PoE, Power, Status
Product colour
Black
Rack mounting
Yes
Management features
Quality of Service (QoS) support
Yes
Switch layer
L2/L3
Switch type
Managed
Multicast features
IPv4 multicast entries
2000
IPv6 multicast entries
2000
Multicast support
Yes
Network
10G support
No
Broadcast storm control
Yes
Full duplex
Yes
Link aggregation
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Number of VLANs
4093
Rate limiting
Yes
Spanning tree protocol
Yes
Virtual LAN features
MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
VLAN support
Yes
Operational conditions
Heat dissipation
559.555 BTU/h
Non-operating altitude
0 - 3000 m
Operating altitude
0 - 3000 m
Operating relative humidity (H-H)
0 - 90 %
Operating temperature (T-T)
0 - 50 °C
Storage relative humidity (H-H)
0 - 95 %
Storage temperature (T-T)
-20 - 70 °C
Package dimensions
Gross Weight (Package, kg)
3.77 kg
Packaging data
Manual
Yes
User guide
Yes
Performance
Built-in processor
Yes
Internal memory
2048 MB
Mean time between failures (MTBF)
778769 Hour
Noise level
30.06 dB
Processor frequency
1250 MHz
Processor model
ARM Cortex-A9
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
10
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) power per port
30 Watt
Power over Ethernet plus (PoE+) ports quantity
8
Total Power over Ethernet (PoE) budget
150 Watt
Product dimensions
Net Weight (Product, kg)
2.9 kg
Product Depth
20 cm
Product Height
4.32 cm
Product Width
44 cm
Security
Access Control List (ACL)
Yes
Authentication
MAC-based authentication
Authentication type
RADIUS
BPDU filtering/protection
Yes
DHCP features
DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
IGMP snooping
Yes
Loop protection
Yes
SSH/SSL support
Yes
Vendor information
Brand Name
Netgear
Warranty
1 Year(s)
View AllClose
