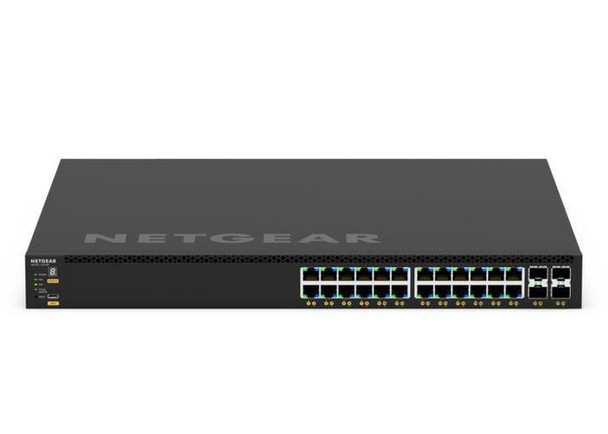

Netgear GSM4328-100NES Gsm4328-100Ajs Managed L3 GSM4328-100NES

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY
CONFIGURATION
FOR AV PROS

A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT
NOT FAN NOISE

Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR
AV OVER IP
RIGHT OUT OF
THE BOX

With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Data transmission



MAC address table



16000 entries


Packet buffer memory



16 MB


Switching capacity



128 Gbit/s


Throughput



95.23 Mpps


Design



Form factor



1U


Product colour



Black


Rack mounting



Yes


Stackable



Yes


Management features



Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


Traffic shaping



Yes


Web-based management



Yes


Network



10G support



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x


Number of VLANs



4093


VLAN support



Yes


Operational conditions



Operating temperature (T-T)



0 - 45 °C


Storage temperature (T-T)



-20 - 70 °C


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Performance



Noise level



52 dB


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



24


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Installed SFP+ modules quantity



4


Power



Power source



AC


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) power per port



30 Watt


Power over Ethernet plus (PoE+) ports quantity



24


Total Power over Ethernet (PoE) budget



648 Watt


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



40 cm


Product Height



4.32 cm


Product Width



44 cm


Security



DHCP features



DHCP server, DHCP snooping, DHCPv6 snooping


Vendor information



Brand Name


Netgear


Warranty



1 Year(s)
