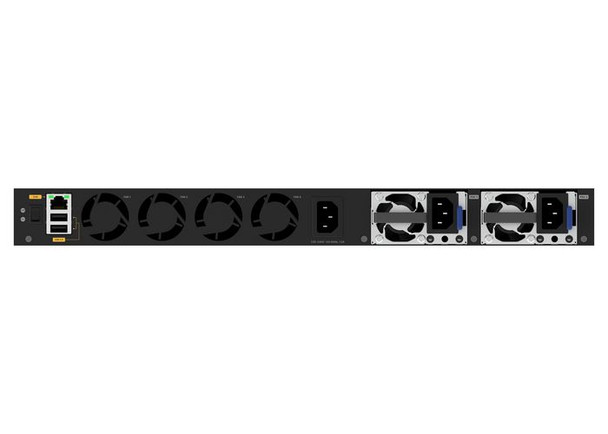

Netgear GSM4352-100NES M4350-48G4Xf Managed L3 GSM4352-100NES

POWER AND THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus� provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus�, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Data transmission



Jumbo frames



12000


Jumbo frames support



Yes


Latency (1 Gbps)



2.2 �s


Latency (10 Gbps)



0.7 �s


MAC address table



16000 entries


Packet buffer memory



32 MB


Store-and-forward



Yes


Switching capacity



176 Gbit/s


Throughput



130.94 Mpps


Design



Airflow direction



Front-to-back airflow


Form factor



1U


LED indicators



Y, Yes


Product colour



Black


Rack mounting



Yes


Stackable



Yes


Management features



ARP inspection



Yes


Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


Web-based management



Yes


Multicast features



Multicast Listener Discovery (MLD) snooping



Y


Multicast support



Yes


Network



10G support



Yes


6to4 tunnel



Yes


Broadcast storm control



Yes


Flow control support



Yes


Full duplex



Yes


IPv4 routes



512


IPv6 routes



256


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u


Number of VLANs



4093


Policy-based routing



Yes


Rate limiting



Yes


Spanning tree protocol



Yes


Virtual LAN features



MAC address-based VLAN, Private VLAN, Voice VLAN


VLAN support



Yes


Operational conditions



Non-operating altitude



0 - 3000 m


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



0 - 90 %


Operating temperature (T-T)



0 - 45 �C


Storage relative humidity (H-H)



0 - 95 %


Storage temperature (T-T)



-20 - 70 �C


Other features



Power supply



550 Watt


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Packaging data



Cables included



AC, USB Type-C


Included power plug types



EU, UK, NA


Quick start guide



Yes


Rack mount kit



Yes


Performance



Built-in processor



Yes


Flash memory



512 MB


Internal memory



2048 MB


Memory type



DDR4-SDRAM


Processor frequency



1800 MHz


Processor model



ARM Cortex-A57


sFlow



Yes


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



48


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Gigabit Ethernet (copper) ports quantity



48


Power connector



AC-in jack


SFP+ module slots quantity



4


Power



Power consumption (max)



348 Watt


Power consumption (typical)



99 Watt


Power source



AC


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) power per port



30 Watt


Power over Ethernet plus (PoE+) ports quantity



48


Total Power over Ethernet (PoE) budget



1440 Watt


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



40 cm


Product Height



4.32 cm


Product Width



44 cm


Protocols



GARP VLAN Registration Protocol (GVRP)



Yes


Management protocols



SNMP V1, V2, V3


Routing protocols



OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2


Security



Access Control List (ACL)



Yes


Access Control List (ACL) egress



1023


Access Control List (ACL) ingress



511


Authentication



Guest VLAN, MAC-based authentication


Authentication type



RADIUS, TACACS+


BPDU filtering/protection



Yes


DHCP features



DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping


DoS attack prevention



Yes


IGMP proxy



Yes


IGMP snooping



Yes


Loop protection



Yes


MAC address filtering



Yes


Password protection



Yes


Queue scheduling algorithms



Strict Priority Queue (SPQ), Weighted random early detection (WRED)


Root protection



Yes


Static port security



Yes


Sustainability



Sustainability certificates



BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)


Sustainability compliance



Yes


Vendor information



Brand Name


Netgear


Warranty



1 Year(s)
