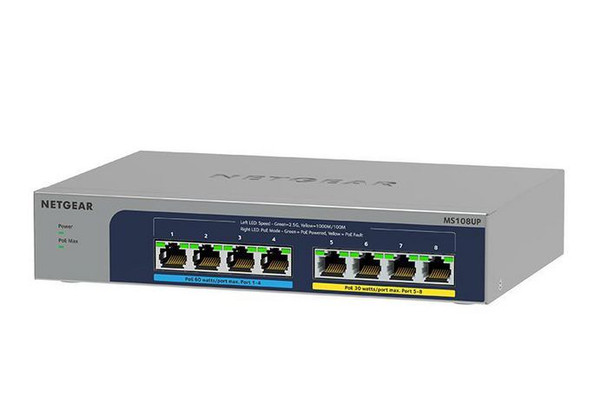

Netgear MS108UP-100EUS Ms108Up Unmanaged 2.5G MS108UP-100EUS

NETGEAR brings the first Unmanaged
Multi-Gigabit PoE++ switch MS108UP with 60Watts per port Ultra60 PoE++ technology, ideal for powerful PoE++ installations with PoE budgets up to 230W, a compact size, plug-and-play
installation, and reliable performance at affordable prices. The new model MS108UP supports 2.5 Gigabit speed connectivity and Power-Over-Ethernet (PoE) that can provide up to 60W/port. The new switch model can power devices such as VoIP phones, surveillance IP cameras, wireless access
points and many other applications. This new Unmanaged switch provides PoE Auto-Balance to help automatically balance the PoE power based on the device needs independent of PoE class detected. With the growing deployment of applications and an allin-one solution, providing multi-speed and high power to these applications would be ideal.

Data transmission



Jumbo frames



12000


Jumbo frames support



Yes


Latency (1 Gbps)



3.593 �s


MAC address table



16000 entries


Packet buffer memory



1.5 MB


Packet forwarding rate (1 Gbps)



1488000 pps


Switching capacity



40 Gbit/s


Design



Certification



CB, CSA, CCC, BSMI, RCM


Electromagnetic compatibility



CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM


Housing material



Metal


LED indicators



Activity, Link, PoE, Power


Rack mounting



No


Wall mountable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch type



Unmanaged


Network



10G support



No


Auto MDI/MDI-X



Yes


Auto-sensing



Yes


Ethernet LAN data rates



100, 1000, 2500


Full duplex



Yes


Half duplex



Yes


Head-of-line (HOL) blocking



Yes


Networking standards



IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x


Number of VLANs



64


VLAN support



Yes


Operational conditions



Heat dissipation



923.49 BTU/h


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



0 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-20 - 70 �C


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Performance



Fanless



Yes


Mean time between failures (MTBF)



373643.7 Hour


Ports & interfaces



2.5G Ethernet (copper) ports quantity



8


Basic switching RJ-45 Ethernet ports quantity



8


Basic switching RJ-45 Ethernet ports type



2.5G Ethernet (100/1000/2500)


Power



DC input voltage



54 V


Input current



4.7 A


Power source



DC


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet plus (PoE+) ports quantity



8


Total Power over Ethernet (PoE) budget



230 Watt


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



14 cm


Product Height



4 cm


Product Width



21 cm


Vendor information



Brand Name


Netgear


Warranty



1 Year(s)
