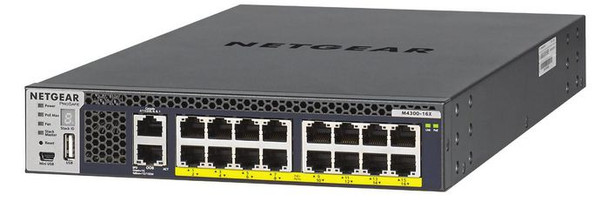

Netgear XSM4316PA-100NES M4300-16X Managed L3 10G XSM4316PA-100NES

The world�s only 1G, 10G and 40G stackable platform designed for server and audiovisual installations, converged access layer and dependable core in SMB environments. M4300 stacking topologies deliver 384-port 1G, 768-port 10G, 192-port 40G, or a combination in redundant, unstoppable systems for edge to core connectivity.

The NETGEAR M4300 Stackable Switch Series delivers L2/L3/L4 and IPv4/IPv6 cost-effective services for mid-enterprise edge with full PoE+ and SMB core deployments with unrivalled ease of use: 10 Gigabit models can seamlessly stack with 1 Gigabit models within the series, enabling spine and leaf line-rate stacking topologies. Non-stop forwarding (NSF) virtual chassis architectures provide advanced High Availability (HA) with hitless failover across the stack. Dual redundant, modular power supplies equipping full width models contribute to business continuity management. Layer 3 feature set includes static, dynamic and policy-based routing � as standard. The NETGEAR M4300 Switch Series is perfect for wireless access, unified communications and professional AV-over-IP installations.

Data transmission



Jumbo frames



9000


Jumbo frames support



Yes


MAC address table



16000 entries


Number of queues



8


Number of static routes



64


Store-and-forward



Yes


Switching capacity



320 Gbit/s


Throughput



238 Mpps


Design



Airflow direction



Front-to-back airflow


Form factor



1U


Product colour



Black


Rack mounting



Yes


Stackable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


Multicast features



Multicast support



Yes


Number of multicast groups filtered



4000


Network



10G support



Yes


Auto-sensing



Yes


IP routing



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u


Number of VLANs



4093


Port mirroring



Yes


Virtual LAN features



Private VLAN, Tagged VLAN, Voice VLAN


VLAN support



Yes


Operational conditions



Heat dissipation



186 BTU/h


Package dimensions



Depth (package,cm)



57.2 cm


Gross Weight (Package, kg)



4.98 kg


Height (package,cm)



9 cm


Width (package,cm)



34.8 cm


Packaging data



Rack mount kit



Yes


Performance



Built-in processor



Yes


Harmonized System (HS) code



85176990


Internal memory



1024 MB


Mean time between failures (MTBF)



690301 Hour


Noise level



36 dB


Physical stacking (units)



8


Processor frequency



800 MHz


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



16


Basic switching RJ-45 Ethernet ports type



10G Ethernet (100/1000/10000)


Console port



RJ-45/Mini-USB


USB 2.0 ports quantity



1


Power



Number of power supply units



1


Power consumption (max)



49 Watt


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) power per port



30 Watt


Power over Ethernet plus (PoE+) ports quantity



16


Total Power over Ethernet (PoE) budget



199 Watt


Product dimensions



Net Weight (Product, kg)



3.22 kg


Product Depth



34.5 cm


Product Height



4.4 cm


Product Width



21.2 cm


Protocols



GARP VLAN Registration Protocol (GVRP)



Yes


Routing protocols



OSPF, OSPFv3, RIP, RIP-1, RIP-2


Security



Access Control List (ACL)



Yes


Authentication



Guest VLAN, MAC-based authentication


BPDU filtering/protection



Yes


DHCP features



DHCP client, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping


IGMP snooping



Yes


Vendor information



Brand Name


Netgear


Warranty



1 Year(s)
