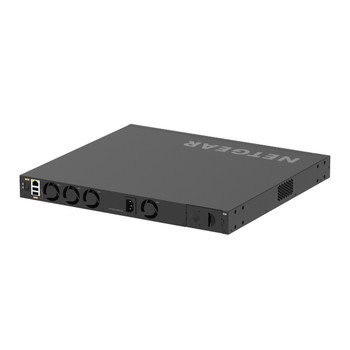

Netgear XSM4328FV-100NES NETGEAR M4350-24F4V Managed XSM4328FV-100NES

POWER AND THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100 Gigabit, all within 15.75in (40cm) of depth.

Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.

Multicast in an Instant
NETGEAR IGMP Plus� provides multicast functionality right out of the box for most AV over IP applications.

Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.

Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.

FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.

DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus�, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

Data transmission



Jumbo frames



12000


Jumbo frames support



Yes


Latency (1 Gbps)



1.06 �s


Latency (10 Gbps)



0.63 �s


MAC address table



16000 entries


Packet buffer memory



32 MB


Static route



Yes


Store-and-forward



Yes


Switching capacity



680 Gbit/s


Throughput



505.92 Mpps


Design



Airflow direction



Front-to-back airflow


Form factor



1U


LED indicators



Y, Yes


Product colour



Black


Rack mounting



Yes


Stackable



Yes


Management features



ARP inspection



Yes


Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


Web-based management



Yes


Multicast features



Multicast Listener Discovery (MLD) snooping



Y


Multicast support



Yes


Network



10G support



Yes


6to4 tunnel



Yes


Broadcast storm control



Yes


Flow control support



Yes


Full duplex



Yes


IPv4 routes



512


IPv6 routes



256


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u


Number of VLANs



4093


Policy-based routing



Yes


Rate limiting



Yes


Spanning tree protocol



Yes


Virtual LAN features



MAC address-based VLAN, Private VLAN, Voice VLAN


VLAN support



Yes


Operational conditions



Heat dissipation



374.6 BTU/h


Non-operating altitude



0 - 3000 m


Operating altitude



0 - 3000 m


Operating relative humidity (H-H)



0 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage relative humidity (H-H)



0 - 95 %


Storage temperature (T-T)



-20 - 70 �C


Other features



Power supply



240 Watt


Package dimensions



Gross Weight (Package, kg)



1.3 kg


Packaging data



Cables included



AC, USB Type-C


Included power plug types



EU, NA, UK


Rack mount kit



Yes


User guide



Yes


Performance



Built-in processor



Yes


Flash memory



512 MB


Internal memory



2048 MB


Mean time between failures (MTBF)



778741 Hour


Memory type



DDR4-SDRAM


Noise level



61.8 dB


Processor frequency



1800 MHz


Processor model



ARM Cortex-A57


sFlow



Yes


Ports & interfaces



Basic switching RJ-45 Ethernet ports type



No


Console port



RJ-45


Power connector



AC-in jack


SFP+ module slots quantity



24


SFP28 ports quantity



4


USB 2.0 ports quantity



2


Power



AC input frequency



50/60 Hz


AC input voltage



100 - 240 V


Input current



6.3 A


Power consumption (typical)



119.3 Watt


Power source



AC


Power supply included



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



1 kg


Product Depth



40 cm


Product Height



4.32 cm


Product Width



44 cm


Protocols



GARP VLAN Registration Protocol (GVRP)



Yes


Management protocols



SNMP V1, V2, V3


Routing protocols



OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2


Security



Access Control List (ACL)



Yes


Access Control List (ACL) egress



1023


Access Control List (ACL) ingress



511


Authentication



Guest VLAN, MAC-based authentication


Authentication type



RADIUS, TACACS+


BPDU filtering/protection



Yes


DHCP features



DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping


DoS attack prevention



Yes


IGMP proxy



Yes


IGMP snooping



Yes


Loop protection



Yes


MAC address filtering



Yes


Password protection



Yes


Queue scheduling algorithms



Strict Priority Queue (SPQ), Weighted random early detection (WRED)


Root protection



Yes


Static port security



Yes


Sustainability



Sustainability certificates



BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)


Sustainability compliance



Yes


Vendor information



Brand Name


Netgear


Warranty



1 Year(s)
