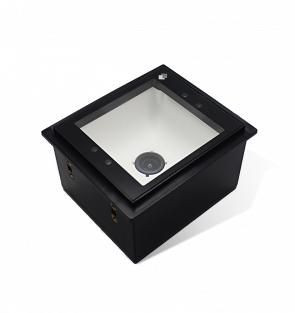

Newland FM3080V2-20 FM30 Hind 2D CMOS Mega Pixel NLS-FM3080V2-20

Snappy on-screen barcode capture.
The FM3080 Hind is armed with Newland�s sixth-generation of UIMG� technology. This CPU-based scanner excels at reading on-screen barcodes that contain a large amount of data.

Instant visual feedback.
With up to 4 color options available, the white scanning window of the FM3080 Hind can light up each scan. It can be programmed for different barcodes, a successful read, or to match your company brand.

Small form factor.
Dimensions of 78.7 x 67.7 x 47.5mm make the FM3080 Hind the smallest of the FM30 series. As a result, it takes up minimal space in a kiosk or at the POS.

IR and light sensors.
In order to achieve higher productivity, the FM3080 Hind has a combination of an IR sensor and light sensor. This combination creates improved sensitivity in activating the scanner to scan the presented barcode.

IP65 sealing.
The FM3080 Hind possesses a high IP-rating of IP65, making it resistant to water and dust.

Anti Reflection
The updated FM3080 Hind has a coating on the underside of the glass to reduce the reflection and glare, making reading barcodes from screens, even snappier and user friendly.

Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-20 - 60 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.132 kg


Performance



Buzzer



Yes


Certification



FCC Part15 Class B, CE EMC Class B


International Protection (IP) code



IP65


LED indicators



Y, Yes


Product colour



Black


Protection features



Electrostatic Discharge (ESD) protection


Ports & interfaces



Connectivity technology



Wired


Standard interfaces



USB


Power



Input voltage



5 V


Power consumption



250 mA


Power source type



USB


Product dimensions



Net Weight (Product, kg)



0.12200000000000001 kg


Product Depth



6.77 cm


Product Height



4.75 cm


Product Width



7.87 cm


Scanning



2D (matrix & stacked) barcodes supported



Aztec Code, Data Matrix, Micro QR Code, PDF417, QR Code


Linear (1D) barcodes supported



Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, Plessey, UPC-A, UPC-E


Optical sensor resolution (W x H)



800 x 800 Pixels


Pitch reading angle



-40 - 40 �


Scanner type



2D


Sensor type



CMOS


Type



Fixed bar code reader


Yaw reading angle



0 - 360 �


Vendor information



Brand Name


Newland


Warranty



2 Year(s)
