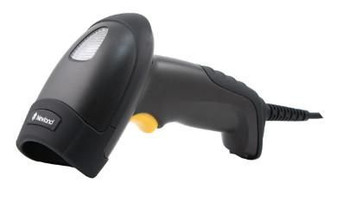

Newland HR1550-38 HR15 Wahoo 1D CCD Handheld NLS-HR1550-38

The HR15 Wahoo handheld scanner is the corded model of HR15 Wahoo series and comes with a coiled cable. This model supports standard RS-232 / USB / PS2 PC interface.

Enables all day scanning comfort to protect productivity in scan-intensive applications.
The HR15 Wahoo corded handheld scanner presents a rugged and compact solution for use in supermarkets, shopping malls and warehouse environments.

Data Acquisition.
The HR15 Wahoo Corded handheld scanner is the corded model of HR15 Wahoo series and comes with a coiled cable. It supports common 1D barcodes and PDF417 and MicroPDF417 stacked 2D barcodes.

Lightweight ergonomic design.
This corded handscanner lies comfortably in your hand and enables all day scanning comfort in scan-intensive situations. This helps reduce fatigue and protects the workforce productivity.

Interface.
The HR15 Wahoo Corded supports standard RS-232 / USB / PS2 PC interfaces.

Durable Construction.
The HR15 Wahoo Corded was created to perform in harsh and demanding environments. With a sealing of IP54, this handheld scanner is protected against dust and moisture. With a drop resistance of 1.5m, it can withstand everyday drops and bumps.

Application scenarios.
With good performance, this rugged and compact scanner is suitable for applications in supermarkets, shopping malls, warehouse environment application and more.

1D CCD Handheld Reader (black surface) with RS232 cable and multi plug adapter, autosense, smart stand ready.

Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-20 - 50 �C


Storage temperature (T-T)



-20 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.6 kg


Packaging data



Cables included



AC, RS-232


External power adapter



Yes


Performance



Buzzer



Yes


Certification



FCC Part15 Class B, CE EMC Class B, IEC62471, KC


Housing material



Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC)


International Protection (IP) code



IP54


Keys quantity



1 keys


Product colour



Black


Protection features



Drop proof, Electrostatic Discharge (ESD) protection


Ports & interfaces



Connectivity technology



Wired


Standard interfaces



RS-232


Power



AC adapter output voltage



100 - 240 V


Input frequency



50 - 60 Hz


Input voltage



5 V


Power consumption



13 mA


Power source type



DC


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



7.3 cm


Product Height



15.9 cm


Product Width



11.35 cm


Scanning



Linear (1D) barcodes supported



Codabar, Code 128, Code 93, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), ISBN, Interleaved 2 of 5, PDF417, Plessey, UPC-E


Pitch reading angle



-55 - 55 �


Read rate (max)



300 reads/s


Scanner type



1D


Sensor type



LED


Tilt reading angle



-75 - 75 �


Type



Handheld bar code reader


Wavelength



620 nm


Working distance



46.55 cm


Technical details



Sustainability certificates



RoHS


Vendor information



Brand Name


Newland


Warranty



5 Year(s)
