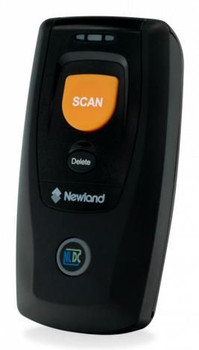

Newland NLS-BS8080-2D BS80 Piranha II 2D CMOS BT NLS-BS8080-2D

BS80 Piranha II 2D CMOS Bluetooth scanner, reads both 1D and 2D barcodes. Supports Apple iOS, Android & Windows devices. Compatible with Bluetooth 4.0/3.0/2.1+EDR up to 50 mtr. 1MB memory.
______________________________________________

Superior Reading Performance
The BS80 Piranha II is offered in 2 versions, containing a 1D or a 1D+2D barcode scanning engine. Both of these engines read virtually any barcode from paper or screen. The 2D device has been equipped with a laser aimer with a red cross to make barcode reading easier and faster.

Easy Bluetooth Pairing
With Bluetooth 4.0 wireless technology, the BS80 Piranha II enables effortless pairing to any Android, iOS, or Windows device, making it simple and convenient for users to transmit data.

Seamless Barcode Capture and Storage
Offering versatile barcode scanning capabilities, the BS80 Piranha II enables fast real-time scanning with seamless data transfer to the host via Bluetooth. However, users can also take advantage of the 1MB memory when operating in batch collection mode, which can store thousands of barcodes offline for subsequent download via Bluetooth or cable.

Edits On the Go
The BS80 Piranha II boasts not only a reliable scan button but also two extra buttons for convenient data editing. For data collection mode, the Delete button allows users to quickly rectify scanning errors by deleting the last scanned barcode. Meanwhile, the Function button serves as a virtual keyboard recall feature, enabling manual data input on a wide range of host devices, including iOS products. This makes the BS80 Piranha II an ideal companion for all your data collection needs.

Versatile Charging & Communication
The BS80 Piranha II features a fast and reliable USB-C port that can be used both for charging and establishing a connection to a host to download data or access the EasySet configuration software. In addition, the device also supports the use of pogo pins to charge via the cradle.

Multi-Device Charging
The BS80 Piranha II offers an optional two-bay charging solution that can be easily linked together to create a multi-charging station. With optimized charging capabilities, users can daisy-chain up to five cradles, allowing them to charge up to ten scanners simultaneously using a single power supply.

Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-20 - 50 �C


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.73 kg


Performance



Buzzer



Yes


Certification



TELEC, IEC 62471, IEC60825


Internal memory



1 MB


International Protection (IP) code



IP42


LED indicators



Y, Yes


Print contrast



20 %


Product colour



Black, Orange


Programming function



Yes


Protection features



Drop proof


Vibration function



Yes


Ports & interfaces



Bluetooth Low Energy (BLE)



Yes


Bluetooth version



4.0


Connectivity technology



Wired & Wireless


Operating frequency



2400 - 2500 MHz


Standard interfaces



Bluetooth, USB


Wireless range



50 m


Power



Battery capacity



900 mAh


Battery life



5 Hour


Battery technology



Lithium-Ion (Li-Ion)


Battery type



Built-in battery


Battery voltage



3.7 V


Power consumption



0.28 mA


Power source type



Battery


Product dimensions



Net Weight (Product, kg)



0.63 kg


Product Depth



8.8 cm


Product Height



2.45 cm


Product Width



4.6 cm


Scanning



2D (matrix & stacked) barcodes supported



Aztec Code, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code


Linear (1D) barcodes supported



China Post, Codabar, Code 128, Code 39, Code 93, EAN-13, EAN-8, GS1 DataBar, GS1-128 (UCC/EAN-128), ISBN, ISSN, Interleaved 2 of 5, MSI, PDF417, POSTNET, Plessey, UPC-A, UPC-E


Optical sensor resolution (W x H)



1280 x 800 Pixels


Pitch reading angle



-60 - 60 �


Scanner type



1D/2D


Sensor type



CMOS


Type



Handheld bar code reader


Technical details



Sustainability certificates



CE, Federal Communications Commission (FCC), RoHS


Sustainability compliance



Yes


Vendor information



Brand Name


Newland


Warranty



3 Year(s)
