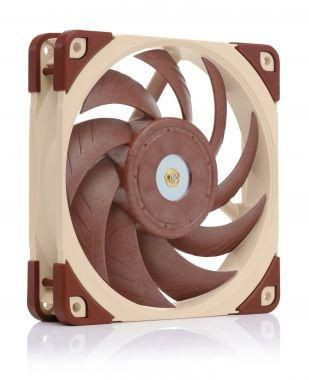

Noctua NF-A12X25 ULN Nf A12X25 Uln Computer Case NF-A12X25 ULN

The NF-A12x25 is a highly optimised next-generation 120mm fan that integrates Noctua�s latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance. It takes state-of-the-art technologies such as the AAO (Advanced Acoustic Optimisation) frame or Flow Acceleration Channels and combines them with a record tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox� liquid-crystal polymer (LCP) compound as well as a metal-reinforced motor hub and axis for ultimate precision. Following the approach of Noctua�s A-series, the NF-A12x25 is a true all-rounder that yields superb results in all types of usage, regardless of whether it�s in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on heatsinks and watercooling radiators. The 3-pin ULN version provides super-slow 1200/900rpm speed settings for ultra-low-noise applications and highly noise-sensitive users who demand near-silent acoustics. Topped off with exceptional running smoothness, Noctua�s reference-class SSO2 bearing, a rich bundle of accessories and 6-year manufacturer�s warranty, the NF-A12x25 is a premium-quality product through and through. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for the most discerning demands.

Design



Fan connector



3-pin


Material



Liquid Crystal Polymer (LCP)


Number of fans



1 fan(s)


Product colour



Beige, Brown


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Performance



Airflow



55.7 m�/hr


Bearing type



Self-Stabilising Oil-pressure Bearing (SSO)


Fan diameter



12 cm


Maximum air pressure



0.82 mmH2O


Mean time between failures (MTBF)



150000 Hour


Minimum air pressure



0.41 mmH2O


Noise level (high speed)



12.1 dB


Noise level (low speed)



7.6 dB


Quantity per pack



1 pc(s)


Rotational speed (max)



1200 RPM


Rotational speed (min)



900 RPM


Suitable location



Computer case


Type



Fan


Product dimensions



Net Weight (Product, kg)



0.2 kg


Vendor information



Brand Name


Noctua


Warranty



1 Year(s)
