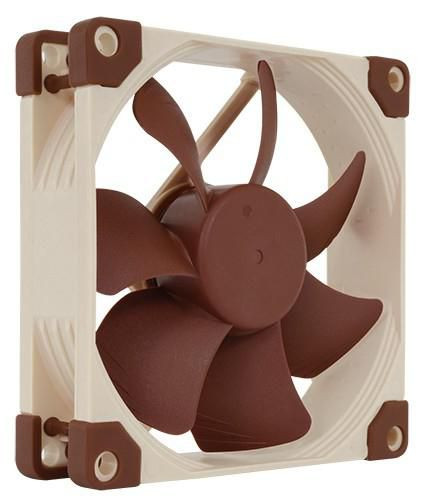

Noctua NF-A9 FLX NF-A9 FLX Fan - 92mm NF-A9 FLX

The NF-A9 is a highly optimised, premium quality quiet 92mm fan. Featuring Noctua�s AAO (Advanced Acoustic Optimisation) frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A9 further improves the renowned quiet cooling performance of the award-winning NF-B9. The FLX version provides 1600/1250/1050rpm speed settings via the supplied Low-Noise Adaptors in order to provide full flexibility in fine-tuning the fan for maximum ventilation performance or near-silent operation. Its superb running smoothness, reference-class SSO2 bearing and Noctua�s trusted premium quality make it an elite choice for the highest demands.
NF-A9 Succeeding the award-winning NF-B9
Noctua�s NF-B9 fan has become a default-choice among PC enthusiasts looking for a premium quality quiet 92mm fan. Thanks to its thoroughgoing aerodynamic optimisations, the NF-A9 provides higher static pressure and an even better airflow/noise ratio than its much acclaimed predecessor.

Flow Acceleration Channels
The NF-A9 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise. button

AAO Frame
Noctua�s AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua�s proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan�s performance/noise efficiency. button

Stepped Inlet Design
Noctua�s Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments. button

Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency. button

Integrated Anti-Vibration Pads
Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.

SSO2 Bearing
The NF-A9 features the further optimised second generation of Noctua�s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability. button

Smooth Commutation Drive 2
The latest version of Noctua�s advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the NF-A9 remarkably quiet even at very close distance. button

3 speed settings for full flexibility
Providing 1600, 1250 and 1050 rpm speed settings via the supplied Low-Noise and Ultra-Low-Noise Adapters, the NF-A9 FLX (Flexibility) can be fine-tuned for superior airflow or maximum quietness.

Extensive Cabling Options
The fan�s short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.

6 years manufacturer�s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A9 features an MTBF of more than 150.000 hours rating and comes with a full 6 years manufacturer�s warranty.

Design



Number of fans



1 fan(s)


Product colour



Beige, Brown


Other features



Connector(s)



3-pin


Harmonized System (HS) code



84733080


Package dimensions



Gross Weight (Package, kg)



0.5 kg


Performance



Fan diameter



9.2 cm


Maximum air pressure



1.62 mmH2O


Maximum airflow



64.6 cfm


Mean time between failures (MTBF)



150000 Hour


Noise level (high speed)



17.1 dB


Rotational speed (max)



1600 RPM


Suitable for



Computer case


Suitable location



Computer case


Type



Fan


Power



Maximum current



0.07 A


Power consumption (typical)



0.84 Watt


Voltage



12 V


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



2.5 cm


Product Height



9.2 cm


Product Width



9.2 cm


Vendor information



Brand Name


Noctua


Warranty



1 Year(s)
