Noctua

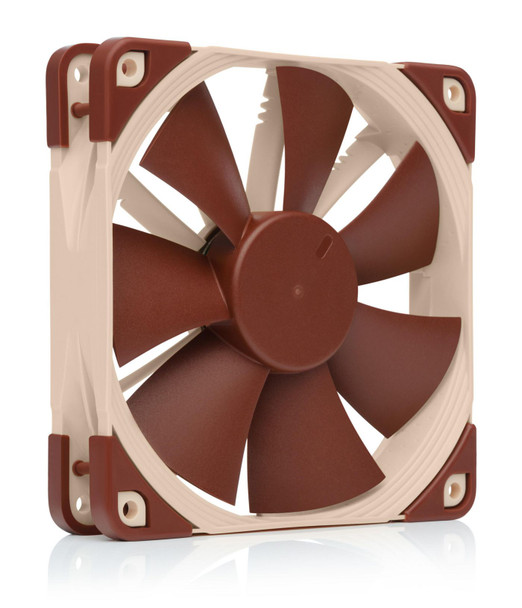

Noctua NF-F12 5V PWM Nf-F12 Computer Case Fan 12 NF-F12 5V PWM
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- NF-F12 5V PWM
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
The NF-F12 5V PWM is a PWM-enabled 5V variant of Noctua�s award-winning, premium-quality NF-F12 120mm fan. Featuring an AAO (Advanced Acoustic Optimisation) standard frame and sophisticated aerodynamic design measures such as the FocusedFlow� system, the NF-F12 is renowned for its superior performance and outstanding quietness of operation. Smooth Commutation Drive technology and Noctua�s reference class SSO2 bearing guarantee superb running smoothness and excellent long-term stability. Topped off with the included USB power adaptor cable, OmniJoin� adaptor set and 6-year manufacturer�s warranty, the NF-F12 5V PWM is a premium choice for demanding 5V applications that require PWM control.
Being a 5V fan, the NF-F12 5V PWM cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers.
5V PWM version
5V fans are used in various devices and applications. With the included USB power adaptor cable and OmniJoin� adaptor set, the NF-F12 5V PWM is a proven premium solution that gives you full flexibility both for replacing existing 5V fans and for new, custom applications.
Focused Flow� frame
Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow� frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.
Varying Angular Distance and Vortex Control Notches
The NF-F12's stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan's sound pattern more agreeable to the human ear.
Heptaperf� Impeller
Custom designed for the new Focused Flow� frame and to work in tandem with the eleven stator guide vanes, the NF-F12's seven blade Heptaperf� impeller has been carefully optimised to achieve a perfect balance between power and quietness.
AAO frame
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design
Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated anti-vibration pads
Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
Custom-designed PWM IC with SCD
Supporting fully automatic PWM speed control, the NF-F12 5V PWM uses Noctua's novel, custom-designed NE-FD3 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.
Polarity protection
As many devices using 5V fans feature proprietary connectors, and documentation of the pin alignment may not be available, the fan features an integrated diode for polarity protection. This way, you're on the safe side if you accidentally connect it with reverse polarity.
SSO2 Bearing
The NF-F12 is the first fan to feature the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Metal bearing shell
In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-F12 sports a CNC milled bearing shell made entirely from brass.
OmniJoin� Adaptor Set
Many devices featuring 5V fans use proprietary fan headers, so the NF-F12 5V PWM comes with Noctua�s OmniJoin adaptor set. Just cut the original fan�s cable, fix it to the adaptor using the supplied 3M Scotchlok� connectors and you can plug the NF-F12 5V PWM to proprietary fan headers!
USB power adaptor cable
The fan includes a USB power adaptor cable that allows it to run on power banks, devices with USB host ports or USB power supplies such as those used for smartphones, giving you near endless possibilities for using the fan in your home, in your car or wherever a need for cooling occurs!
Extensive cabling options
The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.
6-year manufacturer�s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-F12 features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer's warranty.
Design
Certification
CE
Fan connector
4-pin
Number of fan blades
7
Number of fans
1 fan(s)
Product colour
Beige, Brown
Logistics data
Harmonized System (HS) code
84733080
Master (outer) case gross weight
13.1 kg
Master (outer) case height
38 cm
Master (outer) case length
36 cm
Master (outer) case width
35 cm
Products per master (outer) case
36 pc(s)
Other features
Anti-vibration system
Yes
Mean time to failure (MTTF)
150000 Hour
Package dimensions
Depth (package,cm)
3.4 cm
Gross Weight (Package, kg)
0.26 kg
Height (package,cm)
21 cm
Width (package,cm)
15 cm
Packaging content
Screws included
Yes
Performance
Airflow
93.4 m�/hr
Bearing type
Self-Stabilising Oil-pressure Bearing (SSO)
Compatible processor series
Not supported
Fan diameter
12 cm
Maximum air pressure
2.61 mmH2O
Noise level (high speed)
22.4 dB
Pulse-width modulation (PWM) support
Yes
Rotational speed (max)
1500 RPM
Rotational speed (min)
300 RPM
Suitable location
Computer case
Supported processor sockets
Not supported
Type
Fan
Power
Maximum current
0.15 A
Power supply
0.75 Watt
Voltage
5 V
Product dimensions
Net Weight (Product, kg)
0.2 kg
Product Depth
2.5 cm
Product Height
12 cm
Product Width
12 cm
Technical details
Sustainability certificates
RoHS
Vendor information
Brand Name
Noctua
Warranty
1 Year(s)
Weight & dimensions
Cable length
0.3 m
View AllClose
Being a 5V fan, the NF-F12 5V PWM cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers.
5V PWM version
5V fans are used in various devices and applications. With the included USB power adaptor cable and OmniJoin� adaptor set, the NF-F12 5V PWM is a proven premium solution that gives you full flexibility both for replacing existing 5V fans and for new, custom applications.
Focused Flow� frame
Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow� frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.
Varying Angular Distance and Vortex Control Notches
The NF-F12's stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan's sound pattern more agreeable to the human ear.
Heptaperf� Impeller
Custom designed for the new Focused Flow� frame and to work in tandem with the eleven stator guide vanes, the NF-F12's seven blade Heptaperf� impeller has been carefully optimised to achieve a perfect balance between power and quietness.
AAO frame
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design
Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated anti-vibration pads
Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
Custom-designed PWM IC with SCD
Supporting fully automatic PWM speed control, the NF-F12 5V PWM uses Noctua's novel, custom-designed NE-FD3 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.
Polarity protection
As many devices using 5V fans feature proprietary connectors, and documentation of the pin alignment may not be available, the fan features an integrated diode for polarity protection. This way, you're on the safe side if you accidentally connect it with reverse polarity.
SSO2 Bearing
The NF-F12 is the first fan to feature the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Metal bearing shell
In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-F12 sports a CNC milled bearing shell made entirely from brass.
OmniJoin� Adaptor Set
Many devices featuring 5V fans use proprietary fan headers, so the NF-F12 5V PWM comes with Noctua�s OmniJoin adaptor set. Just cut the original fan�s cable, fix it to the adaptor using the supplied 3M Scotchlok� connectors and you can plug the NF-F12 5V PWM to proprietary fan headers!
USB power adaptor cable
The fan includes a USB power adaptor cable that allows it to run on power banks, devices with USB host ports or USB power supplies such as those used for smartphones, giving you near endless possibilities for using the fan in your home, in your car or wherever a need for cooling occurs!
Extensive cabling options
The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.
6-year manufacturer�s warranty
Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-F12 features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer's warranty.
Design
Certification
CE
Fan connector
4-pin
Number of fan blades
7
Number of fans
1 fan(s)
Product colour
Beige, Brown
Logistics data
Harmonized System (HS) code
84733080
Master (outer) case gross weight
13.1 kg
Master (outer) case height
38 cm
Master (outer) case length
36 cm
Master (outer) case width
35 cm
Products per master (outer) case
36 pc(s)
Other features
Anti-vibration system
Yes
Mean time to failure (MTTF)
150000 Hour
Package dimensions
Depth (package,cm)
3.4 cm
Gross Weight (Package, kg)
0.26 kg
Height (package,cm)
21 cm
Width (package,cm)
15 cm
Packaging content
Screws included
Yes
Performance
Airflow
93.4 m�/hr
Bearing type
Self-Stabilising Oil-pressure Bearing (SSO)
Compatible processor series
Not supported
Fan diameter
12 cm
Maximum air pressure
2.61 mmH2O
Noise level (high speed)
22.4 dB
Pulse-width modulation (PWM) support
Yes
Rotational speed (max)
1500 RPM
Rotational speed (min)
300 RPM
Suitable location
Computer case
Supported processor sockets
Not supported
Type
Fan
Power
Maximum current
0.15 A
Power supply
0.75 Watt
Voltage
5 V
Product dimensions
Net Weight (Product, kg)
0.2 kg
Product Depth
2.5 cm
Product Height
12 cm
Product Width
12 cm
Technical details
Sustainability certificates
RoHS
Vendor information
Brand Name
Noctua
Warranty
1 Year(s)
Weight & dimensions
Cable length
0.3 m
Additional Information
Shipping: |
Available to Order - Call for ETA |
Delivery: |
Available to Order - Call for ETA |
