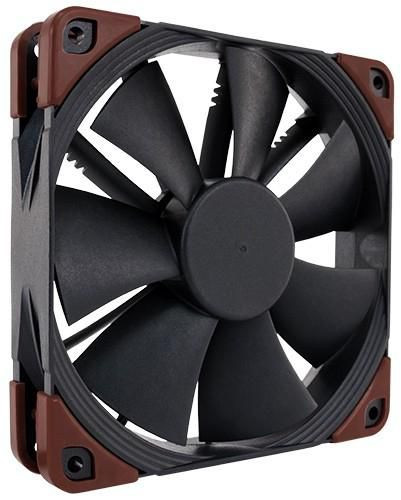

Noctua NF-F12 IPPC-2000 PWM Nf-F12 Industrialppc-2000 Pwm NF-F12 IPPC-2000 PWM

Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-F12 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-F12 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-F12 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTBF of over 150.000hrs. Topped off with Noctua�s trusted reliability and 6 years manufacturer�s warranty, the NF-F12 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.

Design



Material



Fiberglass, Polyamide


Product colour



Black, Brown


Logistics data



Harmonized System (HS) code



84733080


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Performance



Airflow



121.8 m�/hr


Compatible processor series



Not supported


Fan diameter



12 cm


Maximum air pressure



3.94 mmH2O


Mean time between failures (MTBF)



150000 Hour


Noise level (high speed)



29.7 dB


Rotational speed (max)



2000 RPM


Rotational speed (min)



450 RPM


Suitable location



Computer case


Supported processor sockets



Not supported


Type



Fan


Power



Power consumption (typical)



1.2 Watt


Rated current



0.1 A


Voltage



12 V


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



12 cm


Product Height



2.5 cm


Product Width



12 cm


Technical details



Bearing technology



SSO2


Vendor information



Brand Name


Noctua


Warranty



1 Year(s)
