Noctua

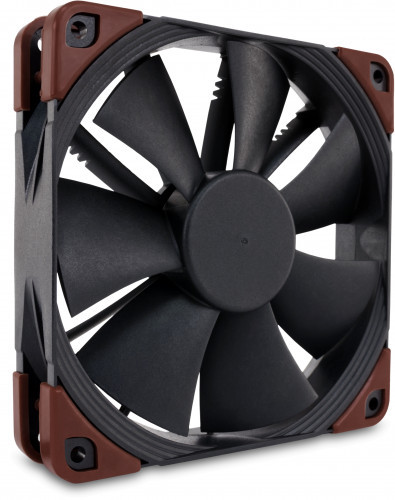

Noctua NF-F12 iPPC SP 24V 3000RPM PWM IP67 120mm High Performance Fan NF-F12-IPPC-SP-24V-3000-PWM-IP
- UPC:
- 9010018100587
- MPN:
- NF-F12-IPPC-SP-24V-3000-PWM-IP
- Condition:
- New
- Availability:
- Available with FREE Delivery (usually delivered within 5-7 working days)
Description
[features] These 24V SP variant uses Noctua’s new NE-FD5 high-efficiency single-phase motor driver IC in order to support 24V-based industrial and automotive applications. Its sophisticated inrush current suppression and extreme electrical robustness with extended burst and surge immunity allow it to operate safely in sensitive or hostile electronic environments. Thanks to the outstanding aerodynamic efficiency of the NF-F12 design and the high-performance single-phase motor; the industrialPPC SP version provides superior airflow and pressure capacity while keeping noise and power consumption at a moderate level as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-F12 industrialPPC suitable for operation in challenging surroundings; the renowned SSO2 bearing technology guarantees an MTTF of over 150;000hrs. Topped off with Noctua’s trusted reliability and 6-year manufacturer’s warranty; the NF-F12 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability. Award-winning NF-F12 design Having received more than 150 awards and recommendations from the international press; Noctua's NF-F12 has become a proven premium choice for 120mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world. 3000rpm industrialPPC version Running twice as fast as the 1500rpm retail version; the NF-F12 industrialPPC-3000 PWM provides extreme airflow and pressure performance. Combined with the industrialPPC series' robust polyamide construction and advanced protection features; this makes the fan ideal for challenging industrial applications. 24V SP version The industrialPPC 24V SP models use Noctua's new NE-FD5 high-performance single-phase PWM motor driver IC. Thanks to its excellent commutation efficiency; the NE-FD5 enables the SP versions to achieve exactly the same performance as previous models with three-phase motors. Lower speed and noise levels in 12V PC environments While the industrialPPC 24V model has been designed with 24V industrial applications in mind; it runs at a maximum speed of around 1100rpm in 12V PC environments and can be slowed down further via PWM; thus combining industrialPPC features and design with Noctua’s signature quietness. NE-FD5 PWM IC with SCD Supporting fully automatic PWM speed control; the fan uses Noctua’s custom-designed NE-FD5 PWM IC for 24V single-phase motors. The NE-FD5 provides excellent energy efficiency and integrates Noctua's proprietary Smooth Commutation Drive (SCD) technology; which suppresses PWM switching noise and thus makes the fan quieter at lower speeds. High electrical robustness Meeting stringent requirements for burst and surge protection; the 24V SP version’s high electrical robustness permits the fan to be used not only in automotive projects but also in other harsh environments with transients from electric motors and other inductive switching loads. Inrush current suppression The fan’s voltage-stabilised inrush current suppression provides a smooth power-up and dramatically reduces power line transients that otherwise could affect other electronic components connected to the power line. This makes the fan safe to use in sensitive electronic environments. Three-phase motor design While most axial fans use single-phase motors with 4 slots; Noctua's industrialPPC fans feature a three-phase design with 6 slots; which provides smoother transitions between the slots and thus allows for even higher running smoothness; further reduced vibrations and unprecedented energy efficiency. Certified IP67 water- and dust protection The motor and PCB of the IP67 version are completely cast in a special; highly heat conductive resin that combines thoroughgoing protection and effective motor heat dissipation. Complying with the ingress protection rating IP67; this fan is not only fully dust tight but also completely waterproof up to 1m water depth. Fibre-glass reinforced polyamide construction Both the impeller and the frame of Noctua’s industrialPPC fans are made entirely from fibre-glass reinforced polyamide. This material can withstand temperatures up to 140°C and makes the fans even more robust and break-proof than Noctua’s standard fibre-glass reinforced PBT fans. Focused Flow frame Designed for pressure demanding applications such as heatsinks and radiators; the Focused Flow frame features eleven stator guide vanes that straighten; channel and focus the airflow; which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds. AAO frame Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures; both of which further refine the fan's performance/noise efficiency. Stepped Inlet Design Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow; which reduces tonal intake noise; improves flow attachment and increases suction capacity; especially in space-restricted environments. Inner Surface Microstructures With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures; flow separation from the suction side of the blades is significantly suppressed; which results in reduced blade passing noise and improved airflow and pressure efficiency. Integrated anti-vibration pads Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems. SSO2 Bearing The NF-F12 industrialPPC features the further optimised second generation of Noctua's renowned; time-tested SSO bearing. With SSO2; the rear magnet is placed closer to the axis to provide even better stabilisation; precision and durability. Metal bearing shell In order to guarantee the highest possible degree of manufacturing precision; minimum tolerance and excellent long-term stability; the NF-F12 industrialPPC sports a CNC milled bearing shell made entirely from brass. 6-year manufacturer’s warranty Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans; the NF-A14 industrialPPC features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer’s warranty.
View AllClose
Additional Information
Shipping: |
Usually shipped within 3-5 working days |
Delivery: |
Usually delivered within 5-7 working days |
