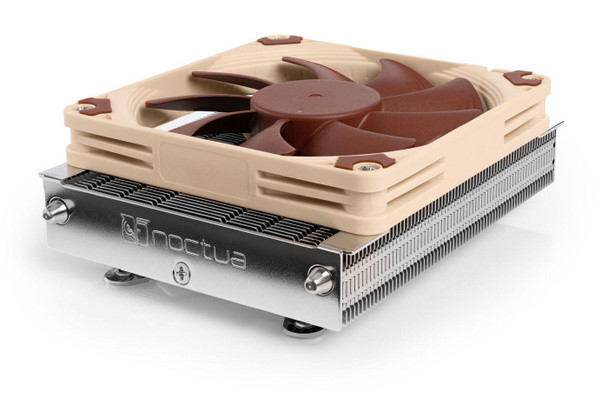

Noctua NH-L9A-AM5 Processor Air Cooler 9.2 Cm NH-L9A-AM5

The NH-L9a-AM5 is the latest, AM5-specific revision of Noctua�s award-winning NH-L9a low-profile CPU cooler for AMD Ryzen based HTPCs and Small Form Factor (SFF) systems. At a height of only 37mm, the NH-L9a is ideal for extremely slim cases and, due to its small footprint, it provides 100% RAM and PCIe compatibility as well as easy access to near-socket connectors even on tightly packed mini-ITX motherboards. The custom-designed SecuFirm2� mounting system for the AM5 socket makes installation a breeze and, thanks to the highly optimised NF-A9x14 92mm fan that supports fully automatic speed control via PWM, the NH-L9a-AM5 runs remarkably quietly. Topped off with Noctua�s renowned NT-H1 thermal compound, the NH-L9a-AM5 combines everything users have come to expect from Noctua�s larger coolers into a super-compact, premium-quality package for ITX and HTPC builds with AMD AM5 processors.

Design



Base plate material



Copper


Material



Aluminium, Copper


Number of fan blades



9


Number of fans



1 fan(s)


Product colour



Beige, Brown


Radiator material



Aluminum


Package dimensions



Gross Weight (Package, kg)



0.26 kg


Packaging content



Mounting kit



Yes


Number of screws



4


Package type



Box


Screws included



Yes


Performance



Airflow



40.8 m�/hr


Compatible processor series



AMD A


Fan diameter



9.2 cm


Mean time between failures (MTBF)



150000 Hour


Noise level (high speed)



23.6 dB


Noise level (low speed)



14.8 dB


Number of speeds



3


Rotational speed (max)



2500 RPM


Rotational speed (min)



600 RPM


Suitable location



Processor


Supported processor sockets



Socket AM5


Type



Air cooler


Power



Power supply



2.52 Watt


Voltage



12 V


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



9.2 cm


Product Height



3.7 cm


Product Width



11.4 cm


Technical details



Warranty period



6 year(s)


Vendor information



Brand Name


Noctua


Warranty



1 Year(s)


Weight & dimensions



Fan dimensions (W x D x H)



92 x 92 x 25 mm


Fan weight



75 g


Radiator depth



9.2 cm


Radiator height



2.3 cm


Radiator width



11.4 cm
