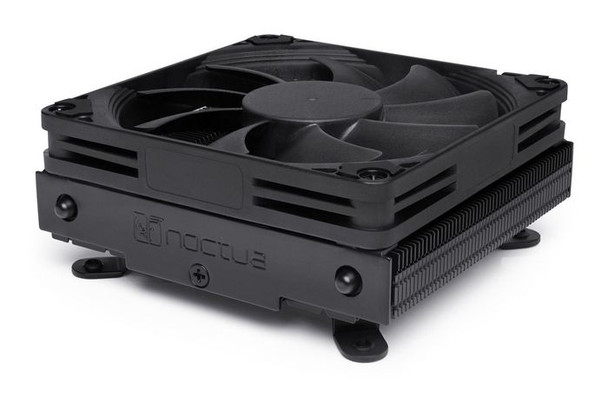

Noctua NH-L9I-17XX CH.BK Computer Cooling System NH-L9I-17XX CH.BK

The NH-L9i-17xx chromax.black is an all-black version of Noctua�s award-winning NH-L9i-17xx low-profile quiet CPU cooler for Intel LGA1700 (LGA17xx family) based HTPCs and Small Form Factor (SFF) builds. Thanks to the same proven heatsink design and NF-A9x14 PWM fan, it stays true to the NH-L9i-17xx�s successful formula of fusing a height of only 37mm with strong performance and excellent quietness of operation, as well as 100% RAM and PCIe compatibility. At the same time, the chromax.black version with its black fan and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2 low-profile mounting system for Intel LGA1700 (LGA17xx family), Noctua�s enthusiast-grade NT-H1thermal compound and a full 6-year manufacturer�s warranty, the NH-L9i-17xx chromax.black is a premium choice for customers who seek an ultra-compact heatsink that looks just as great as it cools.

Award-winning NH-L9i cooler
Tens of thousands of enthusiast users all over the world swear by the NH-L9i�s quality and performance. Recommended by more than 150 international hardware websites and magazines, it is renowned as being one of the best low-profile coolers on the market.

100% compatibility with PCIe cards on mini-ITX
Some mini-ITX motherboards have the PCIe slot sitting close to the 95x95mm socket zone. While larger coolers that exceed this zone are likely to block the PCIe slot, the 95x95mm sized NH-L9i provides full compatibility with PCIe cards.

Soldered interface between heatpipes and fins
With many heatsinks, the fins are press-fitted to the heatpipes. Due to the different thermal expansion coefficients of copper and aluminium, this fit can loosen over years of thermal cycling, which may lead to reduced performance. By contrast, the NH-L9i�s fins are soldered to the heatpipes in order to guarantee a superior thermal interface that doesn�t deteriorate even after many years of usage.

Design



Product colour



Black


Package dimensions



Gross Weight (Package, kg)



0.83 kg


Performance



Airflow



57.5 m�/hr


Fan diameter



9.2 cm


Mean time between failures (MTBF)



150000 Hour


Noise level



23.6 sone


Rotational speed (max)



2500 RPM


Rotational speed (min)



600 RPM


Suitable location



Processor


Supported processor sockets



LGA 1700


Type



Fan


Power



Power supply



2.52 Watt


Voltage



12 V


Product dimensions



Net Weight (Product, kg)



0.64 kg


Product Depth



9.5 cm


Product Height



3.7 cm


Product Width



9.5 cm


Vendor information



Brand Name


Noctua


Warranty



1 Year(s)
