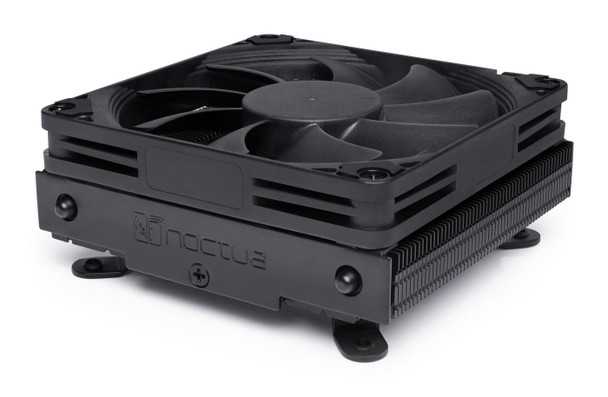

Noctua NH-L9I CH.BK Nh-L9I Chromax.Black NH-L9I CH.BK

The NH-L9i chromax.black is an all-black version of Noctua�s award-winning NH-L9i low-profile quiet CPU cooler for HTPCs and Small Form Factor (SFF) builds. Thanks to the same proven heatsink design and NF-A9x14 PWM fan, it stays true to the NH-L9i�s successful formula of fusing a height of only 37mm with strong performance and excellent quietness of operation, as well as 100% RAM and PCIe compatibility. At the same time, the chromax.black version with its black fan and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2� low-profile mounting system for Intel LGA115x, Noctua�s enthusiast-grade NT-H1 thermal compound and a full 6-year manufacturer�s warranty, the NH-L9i chromax.black is a premium choice for customers who seek an ultra-compact heatsink that looks just as great as it cools.

Award-winning NH-L9i cooler
Tens of thousands of enthusiast users all over the world swear by the NH-L9i�s quality and performance. Recommended by more than 150 international hardware websites and magazines, it is renowned as being one of the best low-profile coolers on the market.

chromax.black designchromax.black design
The NH-L9i chromax.black is black from head to toe: Featuring a black coated heatsink, a black fan with black anti-vibration-pads, black fan screws and black mounting parts, it�s right at home in all-black builds and easy to integrate with other colour schemes.

37mm low profile37mm low profile
Due to the slim 23mm heatsink and the NF-A9x14 low profile fan that measures only 14mm in thickness, the NH-L9 stands a mere 37mm tall, which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer minimum clearance for CPU coolers.

100% RAM compatibility100% RAM compatibility
The NH-L9i has a 95x95mm footprint that complies exactly with the Intel LGA115x socket keep-out zone. This means that it won't cause issues with chipset coolers and doesn't overhang the RAM slots, so it's fully compatible with tall memory modules.

100% compatibility with PCIe cards on mini-ITX 100% compatibility with PCIe cards on mini-ITX
Most Intel LGA115x based mini-ITX motherboards have the PCIe slot sitting right next to the 95x95mm socket zone. While larger coolers that exceed this zone are likely to block the PCIe slot, the 95x95xmm sized NH-L9i provides full compatibility with PCIe cards.

NF-A9x14 PWM premium fanNF-A9x14 PWM premium fan
The highly optimised NF-A9x14 premium fan features Noctua's proprietary AAO frame as well as sophisticated aerodynamic design measures. Supporting PWM for fully automatic speed control, the NF-A9x14 allows the NH-L9i to stay remarkably quiet.

Low-Noise AdaptorLow-Noise Adaptor
Allowing to reduce the maximum speed of the NF-A9x14 fan from 2500 to 1800rpm, the included (L.N.A.) makes it possible to achieve near-silent setups using CPUs with less than 65W TDP.
Custom-designed SecuFirm2� mounting for LGA115xCustom-designed SecuFirm2� mounting for LGA115x
The NH-L9i bundles a custom-designed, backplate-less SecuFirm2� mounting system for LGA115x that offers extended compatibility with mini-ITX boards and makes installation easier than ever, all while maintaining the trusted SecuFirm2� quality.

Optional SecuFirm2� mounting kit for AMD AM4Optional SecuFirm2� mounting kit for AMD AM4
While the NH-L9i�s construction is tailored to the keep-out zone of Intel�s LGA115x platform, it can be installed on many AMD AM4 boards using the optional NM-AM4-L9aL9i mounting kit, which can be ordered on Noctua�s website free of charge.

NT-H1 thermal compoundNT-H1 thermal compound
Noctua�s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. Chosen again and again by overclockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds.

Soldered interface between heatpipes and finsSoldered interface between heatpipes and fins
With many heatsinks, the fins are press-fitted to the heatpipes. Due to the different thermal expansion coefficients of copper and aluminium, this fit can loosen over years of thermal cycling, which may lead to reduced performance. By contrast, the NH-L9i�s fins are soldered to the heatpipes in order to guarantee a superior thermal interface that doesn�t deteriorate even after many years of usage.

Design



Base plate material



Copper


Fan connector



4-pin


Fins material



Aluminium


Product colour



Black


Logistics data



Master (outer) case gross weight



16.5 kg


Master (outer) case height



44.1 cm


Master (outer) case length



24.8 cm


Master (outer) case width



44 cm


Products per master (outer) case



24 pc(s)


Other features



Heatsink dimensions (W x D x H)



95 x 95 x 23 mm


Mean time to failure (MTTF)



150000 Hour


Package dimensions



Depth (package,cm)



5.2 cm


Gross Weight (Package, kg)



0.49 kg


Height (package,cm)



21.3 cm


Width (package,cm)



1.4 cm


Packaging content



Cables included



Fan


Package type



Box


Screws included



Yes


Performance



Airflow



57.5 m�/hr


Airflow with LNA (max)



40.8 m�/hr


Bearing type



Self-Stabilising Oil-pressure Bearing (SSO)


Fan diameter



9.2 cm


Maximum air pressure



2.11 mmH2O


Maximum air pressure with LNA



1.06 mmH2O


Noise level (high speed)



23.6 dB


Noise level with LNA (max)



14.8 dB


Rotational speed (max)



2500 RPM


Rotational speed (min)



600 RPM


Rotational speed with LNA (max)



1800 RPM


Suitable location



Processor


Supported processor sockets



LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), Socket AM4


Type



Cooler


Power



Power supply



2.52 Watt


Rated voltage



12 V


Product dimensions



Net Weight (Product, kg)



0.38 kg


Product Depth



9.5 cm


Product Height



3.7 cm


Product Width



9.5 cm


Vendor information



Brand Name


Noctua


Warranty



1 Year(s)


Weight & dimensions



Heatsink weight



320 g
