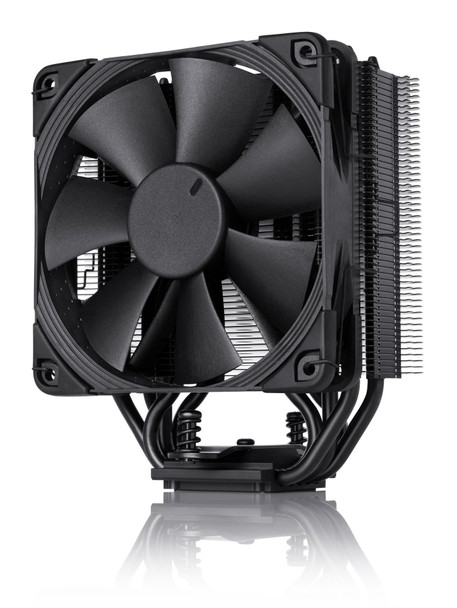

Noctua NH-U12S CHROMAX.BLACK Processor Cooler 12 Cm NH-U12S CHROMAX.BLACK

The NH-U12S chromax.black is an all-black version of Noctua’s award-winning NH-U12S premium-quality quiet CPU cooler. Thanks to the same proven slim-tower heatsink design and NF-F12 PWM fan, it stays true to the NH-U12S’s successful formula of fusing excellent cooling performance with superb quietness of operation and outstanding RAM, case and PCIe compatibility. At the same time, the chromax.black version with its black fan and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2™ multi-socket mounting system, Noctua’s enthusiast-grade NT-H1 thermal compound thermal compound and a full 6-year manufacturer’s warranty, the NH-U12S chromax.black is a premium choice for customers who seek a highly compatible 120mm heatsink that looks just as great as it cools.

Award-winning NH-U12S cooler
Tens of thousands of enthusiast users all over the world swear by the NH-U12S’s quality and performance. Recommended by more than 200 international hardware websites and magazines, it is renowned as being one of the best 120mm coolers on the market.

chromax.black designchromax.black design
The NH-U12S chromax.black is black from head to toe: Featuring a black coated heatsink, black fans with black anti-vibration-pads, black fan clips and black mounting parts, it’s right at home in all-black builds and easy to integrate with other colour schemes.

Colour-customisableColour-customisable
Using the optional NA-HC1 and NA-HC2 heatsink covers as well as the NA-SAVP1 anti-vibration pads (available in black, blue, green, red, yellow, white), the NH-U12S chromax.black can be fully customised to fit popular build colour schemes such as black and red or black and white.

100% RAM compatibility100% RAM compatibility
Thanks to its slim design with only 45mm fin depth, the NH-U12S will not overhang the RAM slots even with two fans installed. This gives the user full access to the memory modules on all current CPU sockets and guarantees 100% compatibility with tall heatspreaders or optional memory fans.

Classic 120mm tower size for excellent overall compatibilityClassic 120mm tower size for excellent overall compatibility
Standing 158mm tall, the NH-U12S is short enough to fit most modern mid- or high-end tower cases. Measuring 125mm wide (including fan and fan clips), the cooler stays clear of the top PCIe slot on most standard ATX or Micro-ATX motherboards, ensuring optimum compatibility with multi-GPU setups.

NF-F12 120mm Focused Flow™ fanNF-F12 120mm Focused Flow™ fan
Recommended by more than 150 hardware publications and thousands of enthusiasts world-wide, the Noctua's premium quality NF-F12 Focused Flow™ 120mm fan is renowned to combine superb static pressure, excellent heatsink performance and surprising quietness of operation.

PWM support and Low-Noise AdaptorPWM support and Low-Noise Adaptor
The NF-F12 120mm fan supplied with the NH-U12S supports PWM for convenient automatic speed control through the motherboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.

Anti-vibration pads and fan-clips for second NF-F12 (optional)Anti-vibration pads and fan-clips for second NF-F12 (optional)
For users who want to achieve even better performance by adding a second, optional NF-F12 PWM chromax.black.swap fan to create a push/pull setup, the NH-U12S includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode.

SecuFirm2™ multi-socket mounting systemSecuFirm2™ multi-socket mounting system
Noctua’s SecuFirm2™ mounting systems have become synonymous with quality, safety and easy installation. Supporting Intel LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) and LGA20xx (LGA2066, LGA2011-0, LGA2011-3), as well as AMD AM4, AM3(+), AM2(+), FM2(+) and FM1, the SecuFirm2™ mounting included with the NH-U12S is straightforward to install, provides perfect contact pressure and will stand the test of time even under heavy use.

Compatibility with past and future socketsCompatibility with past and future sockets
Thanks to Noctua’s SecuFirm™ ecosystem, the NH-U12S can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets, which makes the NH-U12S a safe long-term investment.

NT-H1 thermal compoundNT-H1 thermal compound
Noctua’s much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. Chosen again and again by overclockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds.

Soldered interface between heatpipes and finsSoldered interface between heatpipes and fins
With many heatsinks, the fins are press-fitted to the heatpipes. Due to the different thermal expansion coefficients of copper and aluminium, this fit can loosen over years of thermal cycling, which may lead to reduced performance. By contrast, the NH-U12S’s fins are soldered to the heatpipes in order to guarantee a superior thermal interface that doesn’t deteriorate even after many years of usage.

Design



Base plate material



Copper


Fan connector



4-pin


Fins material



Aluminium


Number of fans



1 fan(s)


Product colour



Black


Logistics data



Master (outer) case gross weight



18.5 kg


Master (outer) case height



46 cm


Master (outer) case length



44 cm


Master (outer) case width



35.5 cm


Products per master (outer) case



12 pc(s)


Other features



Heatsink dimensions (W x D x H)



125 x 45 x 158 mm


Mean time to failure (MTTF)



150000 Hour


Package dimensions



Depth (package,cm)



14.5 cm


Gross Weight (Package, kg)



1.73 kg


Height (package,cm)



21.2 cm


Width (package,cm)



16.9 cm


Packaging content



Package type



Box


Performance



Airflow



93.4 m³/hr


Airflow with LNA (max)



74.3 m³/hr


Bearing type



Self-Stabilising Oil-pressure Bearing (SSO)


Compatible processor series



AMD A, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®


Fan diameter



12 cm


Maximum air pressure



2.61 mmH2O


Maximum air pressure with LNA



1.83 mmH2O


Noise level (high speed)



22.4 dB


Noise level with LNA (max)



18.6 dB


Pulse-width modulation (PWM) support



Yes


Rotational speed (max)



1500 RPM


Rotational speed (min)



300 RPM


Rotational speed with LNA (max)



1200 RPM


Suitable location



Processor


Supported processor sockets



LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM1, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+


Type



Cooler


Power



Power supply



0.6 Watt


Rated voltage



12 V


Product dimensions



Net Weight (Product, kg)



1.33 kg


Product Depth



7.1 cm


Product Height



15.8 cm


Product Width



12.5 cm


Vendor information



Brand Name


Noctua


Warranty



1 Year(s)


Weight & dimensions



Fan dimensions (W x D x H)



120 x 120 x 25 mm


Heatsink weight



580 g
