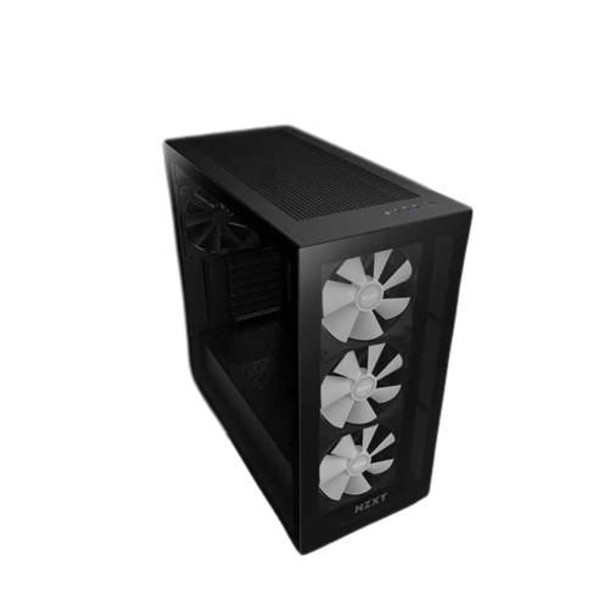

NZXT CM-H71EB-02 H7 Elite Midi Tower Black CM-H71EB-02

Light up your build to fit your style. The H7 Elite features excellent RGB features and a glass front panel to showcase your ideal build.

LIGHT IT UP
Achieve a vibrantly colorful build with pre-installed F140 RGB Core fans. This case also offers personalization and NZXT CAM controls, thanks to a built-in RGB controller.

KEEP IT COOL
Get excellent thermal efficiency thanks to a perforated top panel. The perforated panel provides improved ventilation as warm air flows through the top of the chassis, enabling even cooler temperatures. The top and front of the case support radiators up to 360mm for maximum cooling support. Three pre-installed RGB fans mean users get RGB cooling right out of the box.

BUILD WITH EASE
Streamline the build process with an improved cable management system. Wider cable channels provide more room to easily route cables, while the addition of hooks adds stability to hold everything in place. Ample space and clearance make the H7 Flow and H7 Elite a spacious chassis for ambitious builds.

Cooling



Fan 2 maximum air pressure



1.14 mmH2O


Fan 2 maximum airflow



99.56 cfm


Fan speed



500 - 1500 RPM


Front fans diameters supported



120, 140


Front fans installed



3x 140 mm


Front radiator sizes supported



360


Maximum air pressure



3.22 mmH2O


Maximum airflow



90.8 cfm


Noise level (high speed)



34 dB


Number of front fans supported (max)



3


Number of rear fans supported (max)



1


Number of top fans supported (max)



3


Rear fans diameters supported



120, 140


Rear fans installed



1x 140 mm


Rear radiator sizes supported



140


Top fans diameters supported



120, 140


Top radiator sizes supported



360


Design



Anti-dust filter



Yes


Cable management



Yes


Form factor



Midi Tower


Material



SGCC, Tempered glass


Maximum CPU cooler height



18.5 cm


Maximum graphics card length



40 cm


Maximum PSU length



20 cm


Number of 2.5" bays



6


Number of 3.5" bays



2


Number of expansion slots



7


Product colour



Black


Side window



Yes


Supported motherboard form factors



ATX, micro ATX, Mini-ITX


Type



PC


Logistics data



Master (outer) cases per pallet layer



12 pc(s)


Pallet gross height



126 cm


Pallet gross length



94 cm


Pallet gross width



116 cm


Other features



Screws included



Yes


Package dimensions



Depth (package,cm)



56.5 cm


Gross Weight (Package, kg)



6.5 kg


Height (package,cm)



31 cm


Width (package,cm)



57 cm


Packaging data



Package volume



101657.5 cm�


Ports & interfaces



Audio input



Yes


Audio output



Yes


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity



2


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity



1


Power supply



Power supply included



No


Product dimensions



Net Weight (Product, kg)



5 kg


Product Depth



48 cm


Product Height



50.5 cm


Product Width



23 cm


Storage



HDD/SSD combo cage



Yes


Supported HDD sizes



2.5, 3.5


Vendor information



Brand Name


NZXT


Warranty



1 Year(s)
