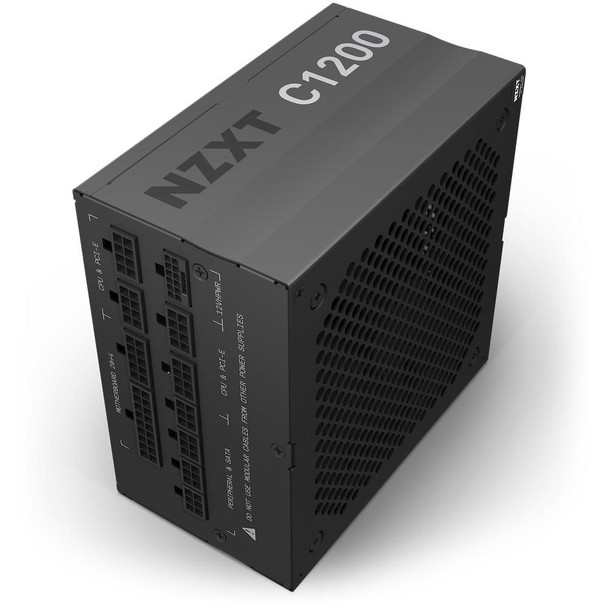

NZXT PA-2G1BB-EU C1200 Gold Power Supply Unit PA-2G1BB-EU

Utilizing the ATX v3.0 power standard, the NZXT C1200 Gold pumps up to 600 watts of power to NVIDIA 40-series graphics cards over a single cable while maintaining highly efficient, low-noise performance.

Next-Gen Power
Provides up to 600W of power to PCIe 5.0 GPUs, such as the NVIDIA GeForce RTX 4090 - over a single 16-pin connector.

Future-Proof Design
Built to handle massive power spikes from next-gen GPUs.

High-Quality Components
Constructed with all Japanese 105C-rated capacitors for the highest standard in performance, reliability, and longevity.

Single Cable Connection
Featuring a single 16-pin connection cable�perfect for 40 Series cards. Installation is easier, safer, and less likely to damage parts without requiring any bulky adapters.

Elite Efficiency
With over 90% efficiency at 50% load, the C1200 reduces energy usage to lower monthly costs and extend your PC's lifespan. No wasted energy - it only draws the power your system needs.

Silent Operation
The 135mm PWM fan with a fluid dynamic bearing runs quietly, even at high loads. Zero Fan Mode shuts it off for total silence when under 40% load.

Design



Fan diameter



13.5 cm


Fan speed



0 - 2300 RPM


Number of fans



1 fan(s)


Product colour



Black


Operational conditions



Operating temperature (T-T)



0 - 50 �C


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Packaging content



Cables included



AC


Performance



80 PLUS certification



80 PLUS Gold


ATX version



3.0


Bearing technology



FDB


Mean time between failures (MTBF)



100000 Hour


Power supply unit (PSU) form factor



ATX


Purpose



PC


Ports & interfaces



ATX Power connector (24-pin)



Yes


CPU power connector (4+4 pin)



Yes


Motherboard power connector



24-pin ATX


Number of SATA power connectors



8


PCI Express power connectors (6+2 pin)



2


Peripheral (Molex) power cable length



150, 500


Peripheral (Molex) power connectors (4-pin)



4


SATA power cable length



150, 500


Power



AC input frequency



50/60 Hz


AC input voltage



100 - 240 V


Combined power (+12V)



1200 Watt


Combined power (+3.3V)



120 Watt


Combined power (+5V)



15 Watt


Combined power (+5Vsb)



15 Watt


Combined power (-12V)



3.6 Watt


Input current



7 - 14 A


Max output current (+12V)



100 A


Max output current (+3.3V)



22 A


Max output current (-12V)



0.3 A


Power Factor Correction (PFC) type



Active


Total power



1200 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



15 cm


Product Height



8.6 cm


Product Width



15 cm


Technical details



Warranty period



10 year(s)


Vendor information



Brand Name


NZXT


Warranty



1 Year(s)
