NZXT

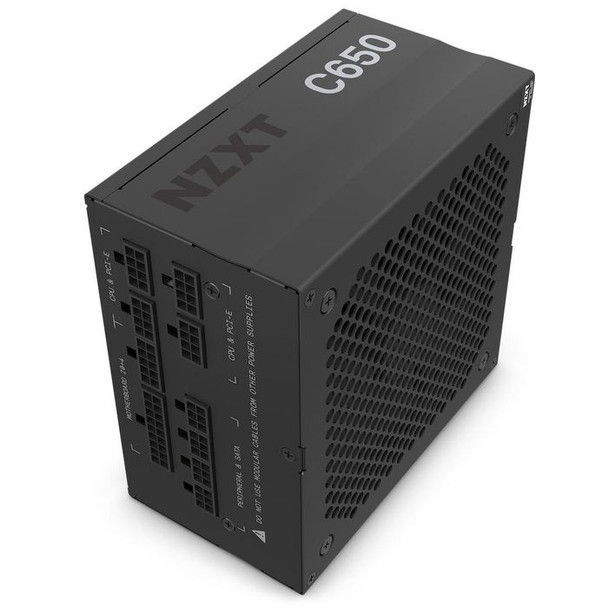

NZXT PA-6G1BB-EU Power Supply Unit 650 W PA-6G1BB-EU
(No reviews yet)
Write a Review
- UPC:
- 0000000000000
- MPN:
- PA-6G1BB-EU
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
This PSU delivers 650 watts of reliable power which is a great choice for almost every build.
Design
Cooling type
Active
Fan diameter
12 cm
Fan speed
0 - 2300 RPM
Number of fans
1 fan(s)
Product colour
Black
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Package dimensions
Gross Weight (Package, kg)
0.65 kg
Packaging content
Cables included
AC, PCIe, Peripheral (Molex), SATA
Performance
80 PLUS certification
80 PLUS Gold
ATX version
2.52
EPS version
2.92
Mean time between failures (MTBF)
100000 Hour
Noise level
44.5 dB
Power supply unit (PSU) form factor
ATX
Purpose
PC
Ports & interfaces
ATX Power connector (24-pin)
Yes
CPU power cable length
70 cm
Motherboard power cable length
60 cm
Motherboard power connector
24-pin ATX
Number of SATA power connectors
6
PCI Express power cable length
65 cm
PCI Express power connectors (6+2 pin)
6
Peripheral (Molex) power cable length
150, 500
Peripheral (Molex) power connectors (4-pin)
6
SATA power cable length
150, 500
Power
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Combined power (-12V)
3.6 Watt
Combined power (+12V)
650 Watt
Combined power (+3.3V)
120 Watt
Combined power (+5V)
120 Watt
Combined power (+5Vsb)
15 Watt
Efficiency
87.5 %
Input current
4 - 8 A
Max output current (-12V)
0.3 A
Max output current (+12V)
54.2 A
Max output current (+3.3V)
22 A
Max output current (+5V)
22 A
Max output current (+5Vsb)
3 A
Total power
650 Watt
Product dimensions
Net Weight (Product, kg)
0.5 kg
Product Depth
8.6 cm
Product Height
15 cm
Product Width
15 cm
Technical details
Sustainability certificates
CCC, CE, California Energy Commission (CEC), Low Voltage Directive (LVD), UKCA
Vendor information
Brand Name
NZXT
Warranty
1 Year(s)
