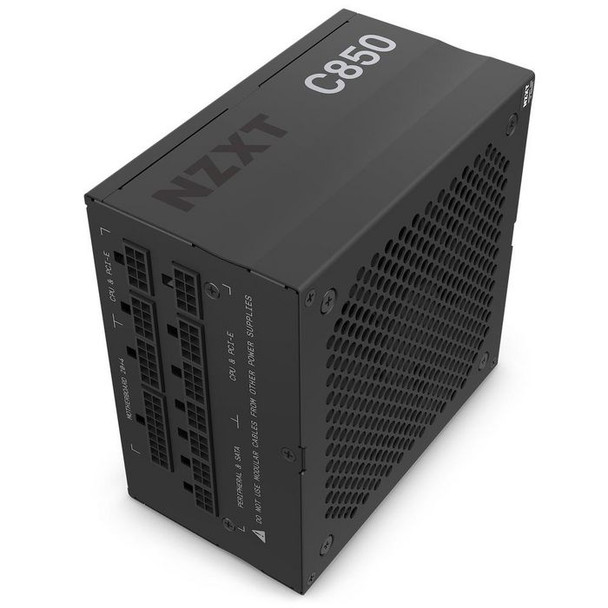

NZXT PA-8G1BB-EU Pa-8G1Bb Power Supply Unit PA-8G1BB-EU

This PSU delivers 850 watts of clean, stable power which is ideal for gaming PCs with multiple GPUs, or higher power requirements. It is also useful for SLI or Crossfire builds.

Design



Cooling type



Active


Fan diameter



12 cm


Fan speed



0 - 2300 RPM


Number of fans



1 fan(s)


Product colour



Black


Operational conditions



Operating temperature (T-T)



0 - 50 �C


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Packaging content



Cables included



AC, CPU, PCIe, Peripheral (Molex), SATA


Performance



80 PLUS certification



80 PLUS Gold


ATX version



2.52


Bearing technology



FDB


EPS version



2.92


Mean time between failures (MTBF)



100000 Hour


Noise level



44.5 dB


Power supply unit (PSU) form factor



ATX


Purpose



PC


Ports & interfaces



CPU power cable length



70 cm


Motherboard power cable length



60 cm


Motherboard power connector



24-pin ATX


Number of SATA power connectors



6


PCI Express power cable length



65 cm


PCI Express power connectors (6+2 pin)



6


Peripheral (Molex) power cable length



150, 500


Peripheral (Molex) power connectors (4-pin)



6


SATA power cable length



150, 500


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Combined power (+12V)



850 Watt


Combined power (+3.3V)



120 Watt


Combined power (-12V)



3.6 Watt


Efficiency



87.5 %


Max output current (+12V)



70.8 A


Max output current (+5V)



22 A


Max output current (+5Vsb)



3 A


Max output current (-12V)



0.5 A


Total power



850 Watt


Product dimensions



Net Weight (Product, kg)



0.5 kg


Product Depth



8.6 cm


Product Height



15 cm


Product Width



15 cm


Technical details



Sustainability certificates



CCC, CE, California Energy Commission (CEC), Low Voltage Directive (LVD), UKCA


Vendor information



Brand Name


NZXT


Warranty



1 Year(s)
