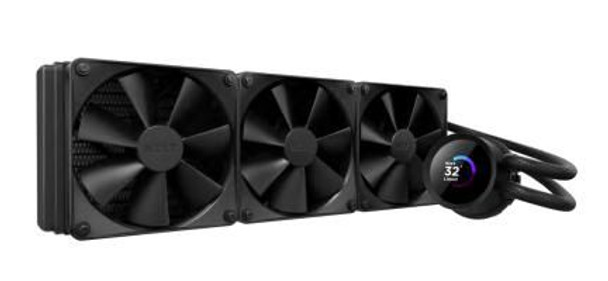

NZXT RL-KN360-B1 Kraken 360 Processor RL-KN360-B1

The Kraken delivers chillingly cool performance, an easy install, and a display screen for system specs or custom images.

PERFORMANCE IN REAL TIME
Proudly display custom images and system specs in real time. The 1.54" diameter LCD display screen provides a clean image.

STAY COOL
Powerfully quiet F Series Static Pressure fans provide cooling with superior heat dissipation capability. The 7th gen Asetek pump ensures your Kraken stays cool and quiet at 2800 RPM

SIMPLE INSTALL
Setup is made simple with a single breakout cable that takes the guesswork out of the installation process. The liquid tubes are protected with reinforced nylon-braided sleeves for added durability and worry-free handling.

NZXT CAM-READY
Personalize screen content with custom images or performance info with user-friendly NZXT CAM software. Control fan and pump speeds and run at 0 RPM mode at low temperatures to eliminate fan noise.

Design



Display size (HxV)



39.1 x 39.1 mm


Display type



TFT-LCD


Fan connector



4-pin


Material



Aluminium, Plastic


Number of fan blades



7


Number of fans



3 fan(s)


Product colour



Black


Radiator material



Aluminum


Other features



Tube material



Rubber


Package dimensions



Depth (package,cm)



14.8 cm


Gross Weight (Package, kg)



0.26 kg


Height (package,cm)



18.9 cm


Width (package,cm)



49.5 cm


Packaging content



Package type



Box


Performance



Compatible processor series



AMD Ryzen� 7, AMD Ryzen� Threadripper�, Intel� Core� i3, Intel� Core� i5, Intel� Core� i7, Intel� Core� i9, AMD Ryzen� 3, Intel� Pentium�, AMD Ryzen� 5, Intel� Celeron�


Fan bearing technology



Fluid Dynamic Bearing (FDB)


Fan diameter



12 cm


Fan noise level (max)



30.6 dB


Fan noise level (min)



17.9 dB


Fan speed (max)



1800 RPM


Fan speed (min)



500 RPM


Fan's mean time to failure (MTTF)



60000 Hour


Maximum air pressure



2.7 mmH2O


Maximum airflow



78.02 cfm


Minimum air pressure



0.75 mmH2O


Minimum airflow (imperial)



21.67 cfm


Pulse-width modulation (PWM) support



Yes


Pump motor speed (max)



2800 RPM


Pump motor speed (min)



800 RPM


Quantity per pack



1 pc(s)


Suitable location



Processor


Supported processor sockets



LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5, Socket TR4, Socket sTRX4


Type



All-in-one liquid cooler


Power



Fan current



0.23 A


Fan power consumption



2.76 Watt


Fan voltage



12 V


Pump current



300 mA


Pump voltage



12 V


Product dimensions



Net Weight (Product, kg)



0.2 kg


Vendor information



Brand Name


NZXT


Warranty



1 Year(s)


Weight & dimensions



Fan dimensions (W x D x H)



120 x 120 x 26 mm


Radiator depth



2.7 cm


Radiator height



12.1 cm


Radiator width



39.4 cm


Tube length



40 cm


Waterblock depth



8.19 cm


Waterblock height



5.95 cm


Waterblock width



8.19 cm
