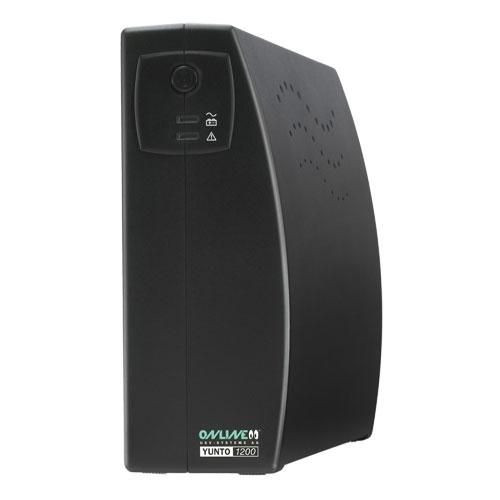

Online USV-Systeme Y1200 Yunto 1200 Line-Interactive Y1200

Battery



Battery capacity



7 Ah


Battery voltage



24 V


Cold start



Yes


Hot-swap battery



Yes


Typical backup time at full load



3 min


Typical backup time at half load



6 min


Design



Certification



EN62040-2 : 2006, CE


Form factor



Compact


International Protection (IP) code



IP20


Product colour



Black


Safety



EN62040-1 : 2008+A1:2013


Features



Efficiency



95 %


Input frequency



50/60 Hz


Input operation voltage (max)



270 V


Input operation voltage (min)



180 V


Maximum current



7.8 A


Output frequency regulation



50/60 Hz


Output operation voltage (max)



230 V


Output operation voltage (min)



230 V


Output power



720 Watt


Output power capacity



1.2 kVA


Output voltage regulation



+/-10 %


Surge protection



Yes


UPS topology



Line-Interactive


Logistics data



Harmonized System (HS) code



85078000


Operational conditions



Operating relative humidity (H-H)



0 - 90 %


Operating temperature (T-T)



0 - 40 �C


Storage temperature (T-T)



-15 - 50 �C


Package dimensions



Gross Weight (Package, kg)



7.02 kg


Packaging data



Cables included



Power load cable, USB cable


Quick installation guide



Yes


Ports & interfaces



AC outlet types



C13 coupler


AC outlets quantity



5 AC outlet(s)


Ethernet LAN (RJ-45) ports



2


Power plug



C14 coupler


USB 2.0 ports quantity



1


USB port



Yes


Product dimensions



Net Weight (Product, kg)



5.4 kg


Product Depth



28.2 cm


Product Height



23.87 cm


Product Width



9.09 cm


Vendor information



Brand Name


Online USV-Systeme


Warranty



1 Year(s)
