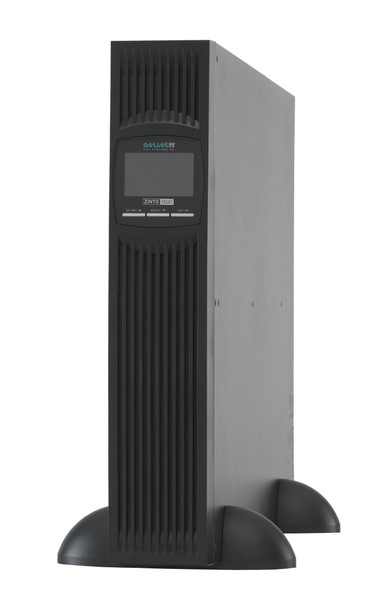

Online USV-Systeme Z1500 Zinto 1500 Line-Interactive Z1500

High grade: Technological advances as standard

ZINTO is the latest generation in the successful series of ON- LINE UPS systems. This generation is the result of almost 30 years of UPS experience and provides sensitive applications with power failure and data loss protection. The outstanding highlight of ZINTO is its future-oriented DYNAMIC POWER TECHNOLOGY (DPT). It dynamically adapts the output power of the UPS system to its load and increases where necessary the active power (watts) up to 90% of the UPS rated valve. More power is thus available than with conventional UPS systems. Noiseless operation is a further innovation. Under normal conditions all ZINTO up to 3000VA operate with- out fan and therefore noiseless. Another benefit is ZINTO's buck-and-boost function which electronically handles voltage fluctuations without using a battery. This increases the life expectancy and minimises ongoing costs.

ONLINE USV-Systeme AG (ONLINE) is one of the leading manufacturers of uninterruptible power supplies (UPS). Since 1988, the German company has focussed on the develop- ment, production, sale and support of UPS systems. Based on unit numbers sold, ONLINE products are the German number one in the UPS market and internationally recognised because of their top quality and excellent support.

Convincing: Multiple applications

Cost-effective purchasing, reliable operation

ZINTO distinguishes itself by offering more power, greater autonomy times and favourable price. Thanks to its convincing features, ZINTO is the global standard for protecting critical applications from power failure, data loss and cost-intensive operational interruptions.

Reliable blood testing:
In addition to being used in classic server or IT applications ZINTO is also used in the medical sector to analyse blood samples. In this case the analysis equipment defines, for examples, values for complete and partial blood counts or is used to detect infectious diseases such as HIV, malaria, hepatitis and tuberculosis. A UPS has to be especially reliable in this area. All samples would be unusable if the power supply were to be interrupted during the process of analysis.

In economic terms: ZINTO therefore pays for itself

The new and future-oriented DYNAMIC POWER TECHNOLOGY from ONLINE USV-Systeme is considered to be a pioneering breakthrough in the UPS sector. It provides the connected load up to 38% more effective power (watts) than conventional and widely available UPS systems. A smaller UPS model with lower purchase cost can therefore be used with ZINTO.

Battery



Battery capacity



9 Ah


Battery voltage



48 V


Cold start



Yes


Hot-swap battery



Yes


Typical backup time at full load



10 min


Typical backup time at half load



23 min


Design



Certification



EN62040-2 (EN61000-2-2, EN61000-3-2, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8), CE


Display type



LCD


Form factor



Rackmount/Tower


International Protection (IP) code



IP20


Mean time between failures (MTBF)



50000 Hour


Product colour



Black


Rack capacity



2U


Safety



EN62040-1


Features



Efficiency



97 %


Input frequency



50/60 Hz


Input operation voltage (max)



274 V


Input operation voltage (min)



176 V


Maximum current



11 A


Noise level



45 dB


Output frequency regulation



50/60 Hz


Output operation voltage (max)



240 V


Output operation voltage (min)



208 V


Output power



1350 Watt


Output power capacity



1.5 kVA


Output voltage regulation



+3 - -3 %


UPS topology



Line-Interactive


Logistics data



Harmonized System (HS) code



85078000


Operational conditions



Operating relative humidity (H-H)



0 - 90 %


Operating temperature (T-T)



0 - 40 �C


Package dimensions



Gross Weight (Package, kg)



27.3 kg


Packaging data



Cables included



Power load cable, USB cable


Quick installation guide



Yes


Rack mount kit



Yes


Ports & interfaces



AC outlet types



C13 coupler


AC outlets quantity



8 AC outlet(s)


Ethernet LAN (RJ-45) ports



2


Power plug



C14 coupler


RS-232 ports



1


Serial interface



Yes


Serial interface type



RS-232


USB 2.0 ports quantity



1


USB port



Yes


Product dimensions



Net Weight (Product, kg)



21 kg


Product Depth



51.2 cm


Product Height



8.8 cm


Product Width



43.8 cm


Vendor information



Brand Name


Online USV-Systeme


Warranty



1 Year(s)
