Panasonic HX012E H-X012E Camera Lens Slr HX012E

A wide view. Elaborate detail.

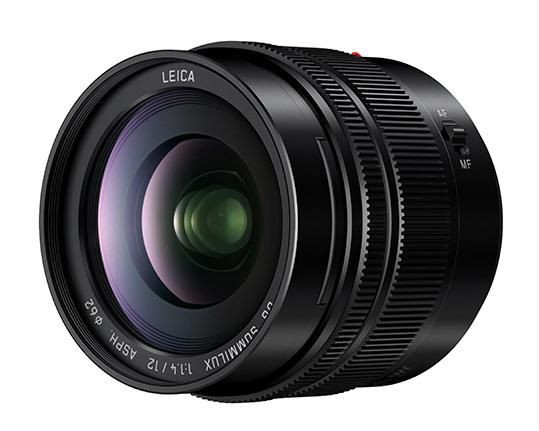

This 12mm LEICA DG lens with F1.4 (35mm camera equivalent: 24mm) was created to satisfy professional needs for shooting landscapes. It captures dynamic scenes with rich perspective and high resolution. Rendering each point of light with crisp clarity, making it ideal for shooting individual stars and tiny lights. In addition, its splash/dustproof structure and intuitive
aperture ring control handle a wide range of situations. The lens mount, the barrel and the hood are all made of metal to provide a sleek, sophisticated design that enhances the joy of shooting.

LEICA DG Lens � ultimate optics

Opt for a LEICA DG lens and get the ultimate in optical quality and performance. They naturally meet the strict quality standards set by Leica Camera AG.
Thanks to the sophisticated design of these lenses, you will enjoy brilliant clarity all the way to the edges of your photos. At the same time, distortions of all kind are prevented to enable precise, sharp picture rendering. This means you have the ideal tool for pro-level images in the palm of your hand.

Splash/Dustproof � more creative options

Brave the elements in nearly any kind of weather or shooting location. This lens features a splash/dustproof construction that is tough enough to withstand even heavy field use. It protects the lens system inside from sand, rain and more, making it perfect for shooting under
harsh conditions. Now there is nothing holding you back from capturing the creative nature or landscape shots you want.

Video Support � perfect video-recording

With video support any user has everything they need for recording with their LUMIX camera. Not only does it perform smooth aperture changes so there are no sudden
jumps in exposure, it also boasts a silent design for enhanced capture of the scene�s audio. What�s more, the stunning AF performance of this lens records excellent 4K video, where precise focusing is essential.

H-X012

15 elements in 12 groups:- 2 aspherical lenses
- 2 Ultra Extra-Low Dispersion
- 1 Extra-Low Dispersion lens

Aspherical (ASPH) lenses reduce size and weight, effectively preventing spherical and distortion aberration.
Extra-Low Dispersion (ED) and Ultra Extra-Low Dispersion (UED) lenses correct chromatic aberration rendering sharp, high-contrast images with clear colors from corner to corner.

H-X012

MTF Chart

For lenses that are capable of compensating distortion, the horizontal axis of the MTF shows the distance from the center of the corrected image.

Design



Material



Metal


Mounting type



Bayonet


Product colour



Black


Lens system



Closest focusing distance



0.2 m


Component for



SLR


Fixed focal length



1.2 cm


Lens mount interface



Micro Four Thirds (MFT)


Lens structure (elements/groups)



15/12


Lens type



Ultra-wide lens


Lens viewing angle, diagonal



84 �


Maximum aperture number



1.4


Maximum focal length (35mm film equiv)



2.4 cm


Minimum aperture number



16


Number of aspheric elements



2


Number of diaphragm blades



9


Package dimensions



Gross Weight (Package, kg)



0.65 kg


Packaging content



Bag included



Yes


Performance



Auto focus



Yes


Camera brands compatibility



Panasonic


Lens hood



Yes


Maximum magnification



0.1 x


Product dimensions



Net Weight (Product, kg)



0.5 kg


Vendor information



Brand Name


Panasonic


Warranty



1 Year(s)


Weight & dimensions



Diameter



7 cm


Filter size



6.2 cm


Length



7 cm
