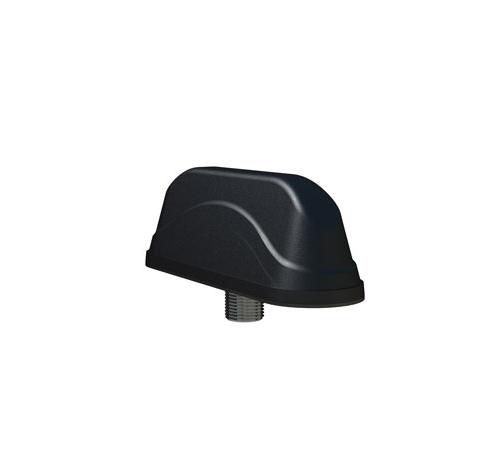

Panorama Antennas LGAM-7-27-24-58-1S LOW PROF MIMO 2/3/4G LGAM-7-27-24-58-1S

This high-performance antenna offers multiple antenna functions for applications where a cost-effective, efficient and robust antenna is essential. It is ideal for vending machines, payment terminals and other M2M applications.

The L[G]PAM consists of 2x2 MiMo function for 2G/3G/4G covering 698-3800MHz, 2x2 MiMo function for 2.4/5GHz WiFi and an optional active antenna for GPS/GLONASS/Galileo/BeiDou with 26dB gain LNA for high-quality positioning and filtering. The antenna maintains a high level of performance even when mounted on a non-metallic surface.

Features



Antenna type



Omni-directional antenna


Mounting pipe



0 - 18 mm


Product colour



Black


Package dimensions



Gross Weight (Package, kg)



0.4 kg


Performance



Antenna gain level (max)



6 dBi


Frequency band



0.698 - 0.96 / 1.71 - 2.17 / 2.5 - 3.8 GHz


Power



Power consumption (max)



25 Watt


Product dimensions



Net Weight (Product, kg)



0.34 kg


Product Depth



15 cm


Product Height



5 cm


Product Width



4.4 cm


Vendor information



Brand Name


Panorama Antennas


Warranty



1 Year(s)
