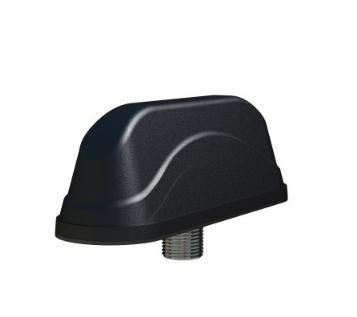

Panorama Antennas LGAM-7-27-S24-58 LOW PROF GPS+MIMO 2/3/4G LGAM-7-27-S24-58
- UPC:
- 5055416011510
- MPN:
- LGAM-7-27-S24-58
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
This high-performance antenna offers multiple antenna functions for applications where a cost-effective, efficient and robust antenna is essential. It is ideal for vending machines, payment terminals and other M2M applications.
The L[G]AM consists of 2x2 MiMo function for 2G/3G/4G/5G covering 698-3800MHz, 2x2 MiMo function for 2.4/5GHz WiFi and an optional active antenna for GPS/GLONASS/Galileo/BeiDou with 26dB gain LNA for high-quality positioning and filtering. The antenna maintains a high level of performance even when mounted on a non-metallic surface.
Features
Antenna connector type
SMA
Antenna type
Omni-directional antenna
Housing material
Acrylonitrile styrene acrylate (ASA)
Polarization
Vertical polarization
Product colour
Black
Voltage Standing Wave Ratio (VSWR)
2:1 � 4MHz
Operational conditions
Operating temperature (T-T)
-40 - 80 �C
Package dimensions
Gross Weight (Package, kg)
0.4 kg
Packaging content
Quantity
1
Quantity per pack
1 pc(s)
Performance
Antenna gain level (max)
26 dBi
Frequency band
0.698-0.960/1.71-2.17/2.5-3.8 GHz
Impedance
50 ?
Power
Power consumption (max)
25 Watt
Product dimensions
Net Weight (Product, kg)
0.34 kg
Product Depth
15 cm
Product Height
5 cm
Product Width
4.4 cm
Vendor information
Brand Name
Panorama Antennas
Warranty
1 Year(s)
View AllClose
The L[G]AM consists of 2x2 MiMo function for 2G/3G/4G/5G covering 698-3800MHz, 2x2 MiMo function for 2.4/5GHz WiFi and an optional active antenna for GPS/GLONASS/Galileo/BeiDou with 26dB gain LNA for high-quality positioning and filtering. The antenna maintains a high level of performance even when mounted on a non-metallic surface.
Features
Antenna connector type
SMA
Antenna type
Omni-directional antenna
Housing material
Acrylonitrile styrene acrylate (ASA)
Polarization
Vertical polarization
Product colour
Black
Voltage Standing Wave Ratio (VSWR)
Operational conditions
Operating temperature (T-T)
-40 - 80 �C
Package dimensions
Gross Weight (Package, kg)
0.4 kg
Packaging content
Quantity
1
Quantity per pack
1 pc(s)
Performance
Antenna gain level (max)
26 dBi
Frequency band
0.698-0.960/1.71-2.17/2.5-3.8 GHz
Impedance
50 ?
Power
Power consumption (max)
25 Watt
Product dimensions
Net Weight (Product, kg)
0.34 kg
Product Depth
15 cm
Product Height
5 cm
Product Width
4.4 cm
Vendor information
Brand Name
Panorama Antennas
Warranty
1 Year(s)
