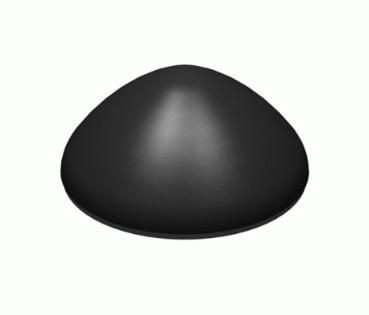

Panorama Antennas LP-7-38-3SP LOW PROF 4G/3G/2G DOME LP-7-38-3SP

The L[G]-7-38 antenna series is a range of very low profile antennas incorporating a combination of wideband cellular element covering 4G/5G frequencies along with an optional active GPS/GNSS patch with 26dB LNA gain and an optional dual band WiFi element all in a robust compact housing.

Designed to be tough yet cost effective, the antennas are completely enclosed in a moulded housing made from weather and impact resistant Lexan EXL plastic which meets UL94-V0 and IK10 according to EN62262. The range is supplied with full length cables with optional 1m (3') or 3m(10') lengths and SMA or FAKRA connectors

Features



Antenna connector type



SMA


Cable length



3 m


International Protection (IP) code



IP69K


Product colour



Black


Operational conditions



Operating temperature (T-T)



-40 - 85 �C


Package dimensions



Gross Weight (Package, kg)



0.46 kg


Packaging content



Quantity



1


Quantity per pack



1 pc(s)


Performance



Antenna gain level (max)



6 dBi


Frequency band



0.698-0.960/1.71-3.8 GHz


Impedance



50 ?


Power



Power consumption (max)



20 Watt


Product dimensions



Net Weight (Product, kg)



0.45 kg


Product Height



4.95 cm


Vendor information



Brand Name


Panorama Antennas


Warranty



1 Year(s)


Weight & dimensions



Diameter



11.1 cm
