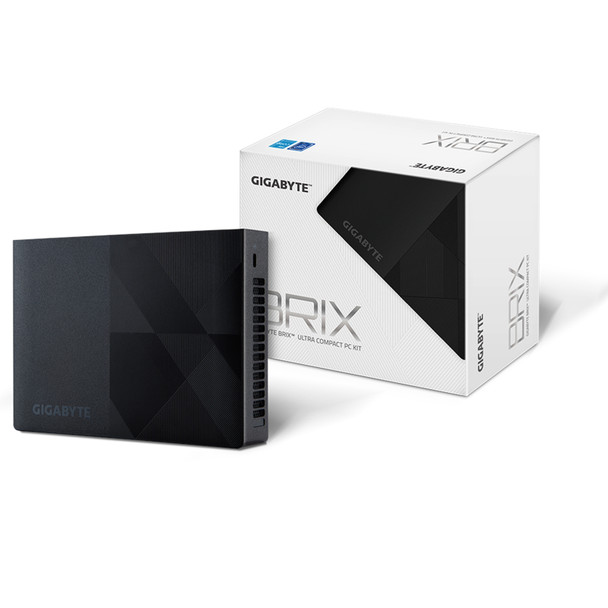

Pbgig-Brip-N200 GB-BN1P-N200

Intel® Processor and Intel® Core™ i3 N-Series Processors deliver the performance you need at an affordable price to allow you to connect, learn, and play anywhere. The new Intel “Gracemont” CPU microarchitecture built on the latest Intel 7 process features up to 8 efficient cores (“E-cores”), enabling easy, responsive, streamlined experiences. You can scale up to BRIX BNi3 series (Intel® Core™ i3-N305) with an Intel Core i3 N-series platform for a 3.8 GHz turbo frequency and enable Intel® Wi-Fi 6E (Gig+), next-gen Intel® UHD Graphics, enhanced Image Processing Unit (IPU 6) to enjoy a balance of performance and value for the essential BRIX that’s right for you. With the above technologies, users can experience faster browsing and better productivity to accomplish more. Intel N-series processors harness power and efficiency to support learning, streaming and productivity at an affordable cost.

Intel® Processor and Intel® Core i3 N-Series Processor is much more powerful than the prior generation. The all-new Intel 7nm manufacturing process and E-core (Efficient Core) architecture, users can benefit not only from the performance boost, but also compute with greater power efficiency. Overall, generational performance improvements are easily 30% or more.

USB Type-C Connector
The USB Type-C™ is a new reversible connector that comes with a variety of useful features, including support for USB 3.2 gen2, which provides transfer speeds of up to 10 Gb/s.

Support HDMI 2.1 / DP 1.4 Dual Output
HDMI 2.1 offers 18 Gb/s of bandwidth, which is nearly twice that of the previous generation, and it is also backward compatible with HDMI 1.4.

Dual M.2 Storage Supports
It can support dual M.2 SSDs (2x2280) based on PCI-e/SATA technology. Users can install two M.2 SSDs for faster boot-up and application loading, as well as a double-capacity HDD for all kinds of media content, files, and documents without any space limitations.

Dimension3.5 x 116.8 x 28.5 mm
0.54 L

Motherboard Size4 x 110 mm

CPU
Intel® Processor N200
CPU 3.2G
3.7G Turbo, 4C/4T Core, 6MB L3 Cache

Memory
1 x SO-DIMM DDR4 slot
3200MHz
Max. 32GB

LAN
2.5GbE LAN (Realtek RTL8125)

Wifi Card
Intel AX101
Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz

Graphics
Intel® UHD Graphics 750

Audio
Realtek ALC897

HDMI Resolution (Max.)
HDMI 2.1
Support 4K@60P HDR10
Mini DP Resolution (Max.)
DP 1.4
support 4K@60P HBR2

Storage
1 x M.2 2280 slots for SSD (PCI-e x2 or SATA)
1 x M.2 2280 slots for SSD (PCI-e x2)

Expansion Slots
1 x M.2 2280 slots for SSD (PCI-e x2 or SATA)
1 x M.2 2280 slots for SSD (PCI-e x2)
1 x M.2 2230 slot (PCI-e x1 ; A-E key slot occupied by the Wi-Fi+Bluetooth card)

Front I/O
1 x Power Button
1 x USB3.2 Gen2 Type-A
1 x USB3.2 Gen2 Type-C
1 x Headphone / Microphone

Rear I/O
2 x HDMI 2.1
1 x 2.5 GbE RJ45
3 x USB 2.0 Type-A
1 x USB 3.2 Gen2 Type-A
1 x DC-In
1 x DP 1.4
1 x Kensington lock slot

Power Supply
Input: AC 100-240V
Output: DC 19V/3.42A, 65W

VESA
VESA support
Supports 75 x 75 and 100 x 100 mm
*VESA Bracket to be purchased seperately.

Support OS
Win11 64bit

Environment
System Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C
