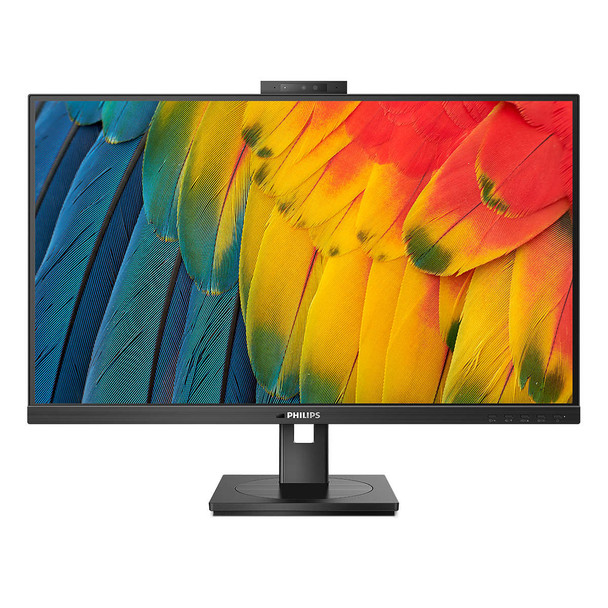

Philips 5000 series 24B1U5301H/00 23.8 " Full HD 75Hz IPS Monitor 24B1U5301H/00

This USB-C monitor is for data transfer, power delivery and watching videos. The integrated 5 MP webcam delivers sharp images, and the noise cancelling mic lets people hear you fine. Windows Hello Webcam for quick access and strong security.

Multimedia


Megapixel (approx?)

5 MP


Built-in microphone

Yes


Built-in speaker(s)

Yes


Built-in camera

Yes


RMS rated power

5 W


Number of speakers

2



Other features


Light sensor

Yes


Exterior finish type

Textured


Regulatory Approvals

CB; CE Mark; FCC Class B; ICES-003; CU-EAC; EAEU RoHS; TUV Ergo; TUV/GS; TUV Eye Comfort certified; cETLus


LowBlue mode

Yes


Mean time between failures (MTBF)

70000 h


Recyclable packaging material

100


EasyRead mode

Yes


Wake-on-LAN

Yes


Picture-by-Picture (PbP)

Yes


Picture enhancement

SmartImage


Ethernet LAN data rates

10,100,1000 Mbit/s



Ports & interfaces


USB Power Delivery

Yes


DisplayPort version

1.4


Headphone out

Yes


HDCP

Yes


DisplayPorts quantity

1


Built-in USB hub

Yes


USB Type-C downstream ports quantity

1


USB Power Delivery up to

90 W


USB Type-A downstream ports quantity

4


HDCP version

1.4/2.2


Number of upstream ports

1


HDMI ports quantity

1


USB hub version

3.2 Gen 2 (3.1 Gen 2)


USB Type-C DisplayPort Alternate Mode

Yes


DisplayPort output

Yes


HDMI

Yes


HDMI version

1.4


USB upstream port type

USB Type-C



Design


Front bezel colour

Black


Product colour

Black


Market positioning

Business


Feet colour

Black



Recycling data


Post-consumer recycled plastic

85



Weight & dimensions


Height (without stand)

323 mm


Height (with stand)

500 mm


Depth (without stand)

51 mm


Weight (with stand)

5.5 kg


Width (with stand)

540 mm


Depth (with stand)

205 mm


Width (without stand)

540 mm


Weight (without stand)

3.9 kg



Ergonomics


Cable lock slot

Yes


Panel mounting interface

100 x 100 mm


Pivot angle

-90 - 90�


On Screen Display (OSD) languages

Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian


Tilt angle range

-5 - 30�


LED indicators

Operation, Stand-by


Swivel angle range

-180 - 180�


Cable lock slot type

Kensington


VESA mounting

Yes


Height adjustment

15 cm


Swivelling

Yes


Picture-in-Picture

Yes


Pivot

Yes


Tilt adjustment

Yes


Plug and Play

Yes



Packaging content


Cables included

HDMI, DisplayPort, USB Type-C, AC


Manual

Yes


Stand included

Yes


Bundled software

SmartControl



Sustainability


Doesn't contain

Mercury, PVC/BFR


Sustainability compliance

Yes


European Product Registry for Energy Labelling (EPREL) code

1325579


Sustainability certificates

ENERGY STAR, TCO, RoHS



Network


Ethernet LAN

Yes



Operational conditions


Operating temperature (T-T)

0 - 40 �C


Operating relative humidity (H-H)

20 - 80


Storage temperature (T-T)

-20 - 60 �C


Non-operating altitude

3658 - 12192 m


Operating altitude

0 - 3658 m



Performance


AMD FreeSync

No


NVIDIA G-SYNC

No


Fast charging technology

Power Delivery


Low Blue Light technology

Yes


HBR3 support

Yes


Fast charging

Yes


Flicker-free technology

Yes


Component video sync

Separate sync


Compatible operating systems

Mac OS X Windows 11 / 10 / 8.1 / 8 / 7



Power


AC input voltage

100 - 240 V


AC input frequency

50 - 60 Hz


Power consumption (typical)

15.3 W


Power consumption (standby)

0.3 W


Power supply type

Internal


Energy efficiency class (SDR)

E


Energy efficiency scale

A to G


Energy consumption (SDR) per 1000 hours

18 kWh



Display


Viewable size, vertical

29.6 cm


Display sRGB

Yes


Colour depth

8 bit


Anti-glare screen

Yes


Contrast ratio (dynamic)

50000000:1


Panel type

IPS


Display number of colours

16.7 million colours


Viewable size, horizontal

52.7 cm


Contrast ratio (typical)

1000:1


DDC/CI

Yes


NTSC coverage (typical)

88


sRGB coverage (typical)

105


Display technology

LCD


Vertical scan range

48 - 75 Hz


Viewing angle, horizontal

178�


HD type

Full HD


Pixel pitch

0.2745 x 0.2745 mm


Touchscreen

No


Viewing angle, vertical

178�


Pixel density

93 ppi


Display brightness (typical)

300 cd/m�


Maximum refresh rate

75 Hz


Horizontal scan range

30 - 85 kHz


Haze rate

25


Native aspect ratio

16:9


Display diagonal

60.5 cm (23.8")


Screen shape

Flat


Surface hardness

3H


Response time

4 ms


Display diagonal (metric)

60.5 cm


Display resolution

1920 x 1080 pixels


Backlight type

W-LED


Dynamic contrast ratio marketing name

SmartContrast


RGB colour space

sRGB



Packaging data


Package height

406 mm


Package depth

198 mm


Package width

600 mm


Package weight

8.32 kg
