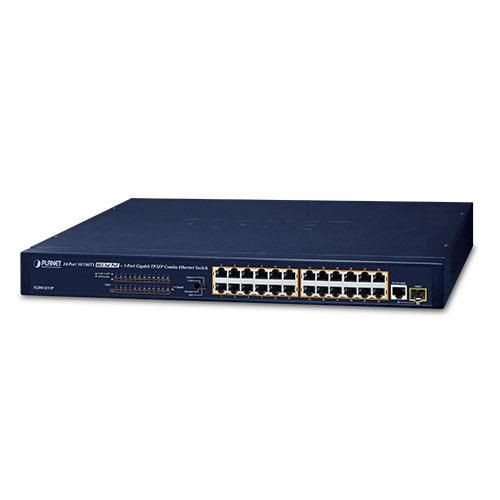

Planet FGSW-2511P 24-Port 10/100TX 802.3at FGSW-2511P

Centralized Power Distribution for HD IP Surveillance System

The FGSW-2511P, a new PLANET 802.3at PoE Fast Ethernet Switch, provides 24 10/100BASE-TX 802.3at PoE+ ports with a total of 190 watts of PoE budget, one 10/100/1000BASE-T uplink port, and one shared 1000BASE-X SFP slot. Its PoE power is more than enough for those network applications with Fast Ethernet speed transmission.

The 24 802.3at PoE+ ports feature PoE power injector function which is able to drive 24 IEEE 802.3at compliant powered devices. The FGSW-2511P also offers a simple, cost-effective and non-blocking wire-speed performance. It comes with a 19-inch metal housing, suitable for desktop deployment in SOHO office or department network application.

Distance Extended for Transmission of Power and Data

The built-in solid DIP switch provides "Standard", "VLAN", �QoS� and "Extend" operation modes.

- In the "Standard" operation mode, the FGSW-2511P operates as a normal IEEE 802.3at PoE+ Switch.
- The "VLAN" operation mode features port-based VLAN function that can help to prevent the IP camera�s multicast or broadcast storm from influencing each other.
- The "QoS" operation mode features port-based QoS function. Port 1 to Port 8 supports port priority; optimize port cache.
- In the "Extend" operation mode, PoE Port-1 to Port-8 of the FGSW-2511P can support 25-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable.

With this brand-new feature, the FGSW-2511P provides an additional solution for 802.3af/at PoE distance extension, thus saving the cost of Ethernet cable installation. Its VLAN isolation function isolates each port so as to prevent broadcast storm and defend DHCP spoofing in the �VLAN� operation mode.

Gigabit Uplink Port

The FGSW-2511P comes with one combo uplink interface with a transfer rate of 1000Mbps to ensure high-speed data and video transmission, and reliable assurance for connection between the surveillance system and outside network where the eight PoE+ ports can be used to their full potential.

Fiber-Optic Link Capability Enables Extension of Network Deployment

The mini-GBIC slot built in the FGSW-2511P supports 1000BASE-SX/LX SFP (small form-factor pluggable) fiber-optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver based on the transmission distance or the transmission speed required to extend the network efficiently. The distance can be extended from 550 meters to 2 kilometers (multi-mode fiber) and 10/20/30/40/50/60/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications to uplink to backbone switch and monitoring center in long distance.

Robust Protection

The FGSW-2511P protects against the ESD 4kV surge to improve product stability and also protects users� networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

Easy Installation and Cable Connection

As data transfer and high PoE are transmitted over a cable, the FGSW-2511P is able to reduce the need of extended cables and electrical outlets on the wall, ceiling or any unreachable place. It helps to lower the installation costs and simplify the installation effort. All RJ45 copper interfaces of the FGSW-2511P support 10/100Mbps or 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cable. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

Data transmission



MAC address table



16000 entries


Store-and-forward



Yes


Switching capacity



5.8 Gbit/s


Throughput



5.06 Mpps


Design



Certification



CE, FCC


Form factor



1U


Housing material



Metal


LED indicators



PoE, Power, System


Product colour



Blue


Rack mounting



Yes


Management features



Quality of Service (QoS) support



Yes


Switch type



Unmanaged


Traffic classification



Yes


Web-based management



Yes


Network



10G support



No


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Copper ethernet cabling technology



10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T, 1000BASE-TX


Flow control support



Yes


Full duplex



Yes


Half duplex



Yes


MAC address auto-aging supported



Yes


MAC address auto-learning supported



Yes


Networking standards



IEEE 802.3, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


VLAN support



Yes


Operational conditions



Heat dissipation



699.5 BTU/h


Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 50 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-10 - 70 �C


Package dimensions



Depth (package,cm)



57.5 cm


Gross Weight (Package, kg)



3.82 kg


Height (package,cm)



32 cm


Width (package,cm)



37.5 cm


Packaging data



Quick start guide



Yes


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



25


Basic switching RJ-45 Ethernet ports type



Fast Ethernet (10/100)


Combo SFP ports quantity



1


Fast Ethernet (copper) ports quantity



24


Gigabit Ethernet (copper) ports quantity



1


Power



AC input frequency



50 - 60 Hz


AC input voltage



100 - 240 V


Input current



3 A


Power consumption (max)



205 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) ports quantity



24


Power over Ethernet (PoE) power per port



30 Watt


Total Power over Ethernet (PoE) budget



190 Watt


Product dimensions



Net Weight (Product, kg)



2.51 kg


Product Depth



20 cm


Product Height



4.5 cm


Product Width



44 cm


Vendor information



Brand Name


Planet


Warranty



3 Year(s)
