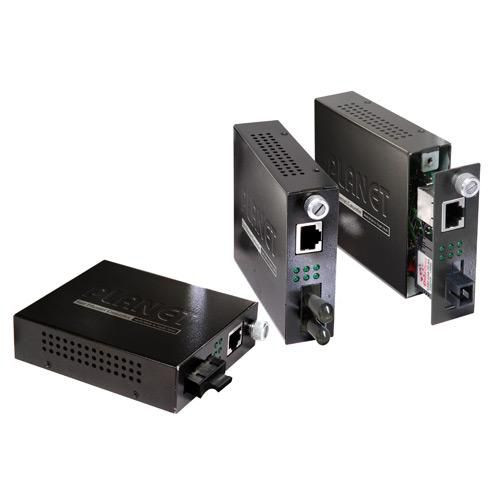

Planet FST-802S35- 10/100Base-TX to 100Base-FX FST-802S35-UK

Distance Extended with Fiber Optic Cable

PLANET FST-80x Smart Media Converter series provides media conversion between 10/100BASE-TX and 100BASE-FX interfaces, such as multi-mode ST/SC connectors (2km), single-mode SC connector (15/35/50km) and single fiber connector using the wavelength-division multiplexing (WDM) technology (20/60km) to enable to extend links over long distances using fiber optic cable.


Enhanced Smart Management Features

The FST-80x series provides auto MDI/MDI-X on their TP port and store-and-forward mechanism to eliminate faulty packets. Use the DIP switch from the FST-80x to configure the available smart functions, such as the half/full duplex, auto-negotiation / force and 10/100Mbps options for TP and fiber interfaces. Besides, the Link Loss Return (LLR) and Link Loss Carry Forward (LLCF) functions can immediately alarm network administrator once there is a media link issue, thus helping to monitor the status of the entire network.


Easy Installation

The FST-80x series can be connected easily and cost-effectively as these smart media converters can be used as a standalone unit when powered on by its DC adapter, or used as a slide-in module connected to PLANET 19-inch, 16-slot web smart/managed media converter chassis (MC-1600MR/MC-1600MR48 and MC-1610MR/MC-1610MR48). When working with the web smart/managed media converter chassis, the status of the FST-80x can be monitored via the local RS-232 console and remote web interface.

Design



Certification



FCC Class B, CE mark


Internal



No


LED indicators



Y, Yes


Product colour



Black


Network



Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Maximum data transfer rate



200 Mbit/s


Operational conditions



Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-10 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.55 kg


Performance



Maximum transfer distance



35000 m


Sensitivity



-34 dBmW


Tx power (max)



-8 dBmW


Wavelength



1310 nm


Ports & interfaces



Fiber optic connector



SC


Product dimensions



Net Weight (Product, kg)



0.22 kg


Product Depth



2.6 cm


Product Height



9.4 cm


Product Width



8.1 cm


Vendor information



Brand Name


Planet


Warranty



3 Year(s)
