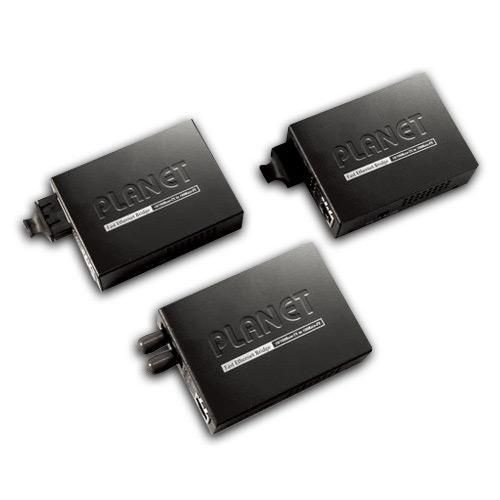

Planet FT-802S15- 10/100TX - 100Base-FX SC FT-802S15-UK

PLANET FT-80x is a Fast Ethernet Bridge 100Base-FX fiber to 10/100Base-TX shielded twisted pair (STP) converter. It supports both half-duplex and full-duplex operations and a variety of fiber options. The converter auto-adapts to the highest level of performance supported by the device connected to the STP port. When the device is a switch or a workstation that supports full duplex, the converter adapts to the full-duplex mode and provides an effective 200Mbps bandwidth. When the connected device is a hub or a workstation that supports only half duplex, the converter adapts to the half-duplex mode and provides the nominal 100Mbps bandwidth. An override switch provides total manual control over the half/full-duplex operation, in fiber-optic interface. The fiber port of converter operates at 1310 nm and uses ST, SC, MT-RJ, VF-45 or WDM connectors. Multi-mode models that support distances up to 2km and single-mode models that support distances up to 15/35/50km are available.

The FT-80x series is with LFP (Link Fault Pass through function) (LLCF/LLR) and the DIP switch design. LLCF/LLR can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the net. The DIP switch provides disable or enable the LFP function.

LLCF (Link Loss Carry Forward) means when a device is connected to the converter and the TP line loses the link, the converter's fiber will disconnect the link of transmit. LLR (Link Loss Return) means when a device is connected to the converter and the fiber line loses the link, the converter's fiber will disconnect the transmit link. Both can immediately alarm administrators the problem of the link media and provide efficient solution to monitoring the net.

Design



Certification



FCC Class A, CE Class A


Housing material



Metal


Internal



No


LED indicators



Y, Yes


Product colour



Black


Network



Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Converter input interface



100Base-TX


Converter output interface



100Base-FX


Copper ethernet cabling technology



100BASE-TX


Duplex system



Full, Half


Ethernet interface type



Fast Ethernet


Ethernet LAN data rates



10, 100


Fiber ethernet cabling technology



100BASE-FX


Link Loss Carry Forward (LLCF) supported



Yes


Link Loss Return (LLR) supported



Yes


Maximum data transfer rate



100 Mbit/s


Networking standards



IEEE 802.3, IEEE 802.3u


Operational conditions



Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.58 kg


Performance



Fiber cable diameters supported (core/cladding)



9/125


Fiber mode structure



Single-mode


Maximum transfer distance



15000 m


Sensitivity



-32 dBmW


Tx power (min)



-20 dBmW


Wavelength



1310 nm


Ports & interfaces



Connectivity technology



Wired


DC-in jack



Yes


Ethernet LAN (RJ-45) ports



1


Fiber optic connector



SC


Fiber ports quantity



1


Power



AC input frequency



50 - 60 Hz


Input voltage



100 - 240 V


Output current



2 A


Output voltage



5 V


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



2.6 cm


Product Height



9.4 cm


Product Width



7 cm


Vendor information



Brand Name


Planet


Warranty



3 Year(s)
