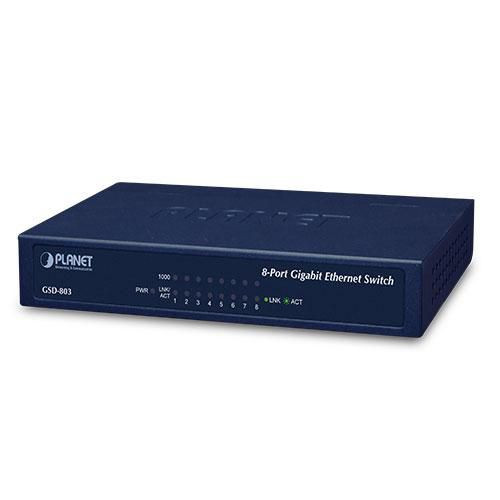

Planet GSD-803- 8-P 10/100/1000Mbps Gigabit GSD-803-UK

Optimal Solution for Energy Saving and Gigabit High Performance

PLANET Green Networking Switch-GSD-803 is an ideal solution in line with the energy-saving trend worldwide. The GSD-803 is an 8-port Gigabit Ethernet Switch bringing both benefits of energy saving and Gigabit wire speed performance. It is specially designed for home networking, SOHOs and enterprises.


Energy Saving

The GSD-803 incorporates two advanced Green Networking technologies and is able to provide power saving up to 40% less energy but maintains high performance efficiently.

(1) Hibernation Link Down power saving
The Hibernation Link Down power saving goes beyond IEEE specifications to automatically lower power for a given port when it is not linked. With the Hibernation Link Down power saving technology, the GSD-803 will automatically adjust power usage of the ports that are shut down or not connected to network device.

(2) Intelligent scales power based on cable length
Intelligent scales power, the other technology adopted, is an intelligent algorithm that actively determines the appropriate power level based on cable length. When the GSD-803 is connected with Ethernet cable shorter than 20m, a device can obtain maximum power saving because the GSD-803 would automatically detect the Ethernet cable length and diminish power usage. The connected device can substantially reduce the overall power consumption, which makes a significant contribution to energy saving.


Leading Home, SOHO and Workgroup Users to High-speed Networking Generation

The GSD-803 is designed with modern metal compact housing and easy for deployment of high speed Gigabit networking in home or SOHO applications. Providing 16Gbps internal switching fabric, the GSD-803 can handle an extremely large amount of data in a secure topology linking to a backbone or high capacity servers. The GSD-803 provides 4K MAC address table, and wire-speed packet transfer performance without risk of packet loss. The high data throughput of the device makes it ideal for most Gigabit environments, especially for the network to be upgraded to a Gigabit environment.


Plug & Play

All RJ-45 copper interfaces of the GSD-803 support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ-45 Category 5, 5e or 6 cables. They support standard auto-MDI/MDI-X feature which can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

Data transmission



MAC address table



4000 entries


Store-and-forward



Yes


Switching capacity



16 Gbit/s


Throughput



11.9 Mpps


Design



Certification



FCC Part 15 Class B, CE


Housing material



Metal


LED indicators



Y, Yes


Product colour



Blue


Wall mountable



Yes


Network



10G support



No


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Full duplex



Yes


Half duplex



Yes


MAC address auto-aging supported



Yes


MAC address auto-learning supported



Yes


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x


Operational conditions



Heat dissipation



11 BTU/h


Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



0 - 50 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-10 - 70 �C


Package dimensions



Gross Weight (Package, kg)



0.62 kg


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Power



DC input voltage



5 V


Input current



1 A


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



0.36 kg


Product Depth



2.6 cm


Product Height



15.5 cm


Product Width



8.6 cm


Vendor information



Brand Name


Planet


Warranty



3 Year(s)
