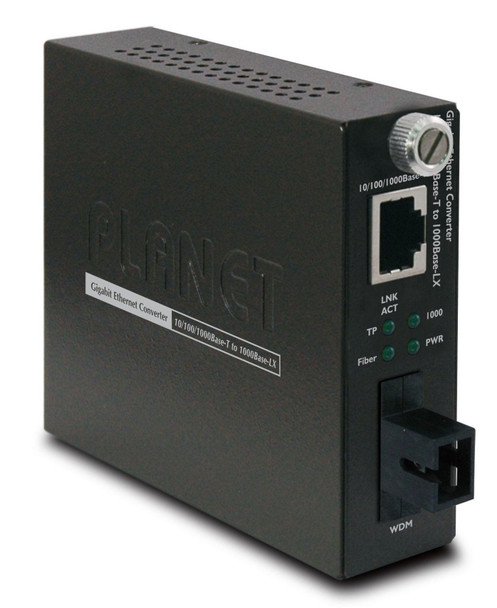

Planet GST-806B60 10/100/1000Base-T to WDM GST-806B60

To provide an easy use yet powerful solution for FTTX applications, PLANET has released a new 10/100/1000Base-T to 1000Base-SX/LX Smart Media Converter, GST-80x series, featuring plug & play and smart media conversion functions.


Distance Extension with High Performance and Steady Network Communication

PLANET GST-80x Smart Gigabit Media Converter series extends communication distance with highly Gigabit performance via fiber optical cable. The GST-80x series provides media conversion between 10/100/1000Base-T and 1000Base-SX/LX interfaces such as multi-mode LC/SC connectors (220m / 550m), single-mode LC/SC connectors (10/20/30/40/50/70/120km) and single fiber connectors (WDM,15/60km) for various fiber optic applications.


Enhanced Smart Management Features

The GST-80x series provides auto MDI/MDI-X on its TP port and the DIP switch to configure the available smart functions including the auto-negotiation / force for fiber interface and Link Pass-through function (LLCF/LLR). The Link Loss Carry Forward (LLCF) function works with Link Loss Return (LLR) to diagnose network connections. Also, the LLR function can immediately alarm network administrator the media link issue and provide efficient solution to monitoring the entire network.


Easy Installation

The GST-80x series allows two segments to connect easily. The Smart Media Converter can be used as a standalone unit when powered by its DC adapter or used as a slide-in module to PLANET 19-inch managed 16-slot media converter chassis (MC-1610MR / MC-1610MR48). When working with the Managed media converter chassis, the GST-80x is able to be managed and its status can be monitored through the local RS-232 console and remote web interface.

Design



Certification



FCC, CE


Internal



No


LED indicators



Y, Yes


Product colour



Black


Network



Auto MDI/MDI-X



Yes


Copper ethernet cabling technology



10BASE-T, 100BASE-T, 1000BASE-T


Data transfer rate



1000 Mbit/s


Ethernet interface type



Gigabit Ethernet


Ethernet LAN data rates



10, 100, 1000


Fiber ethernet cabling technology



1000BASE?LX


Jumbo frames



9000


Jumbo frames support



Yes


Maximum data transfer rate



2000 Mbit/s


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3z


Operational conditions



Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



0 - 50 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-40 - 70 �C


Package dimensions



Depth (package,cm)



58 cm


Gross Weight (Package, kg)



0.56 kg


Height (package,cm)



31 cm


Width (package,cm)



37 cm


Performance



Maximum transfer distance



60000 m


Wavelength



1550 nm


Wavelength-division multiplexing (WDM)



Yes


Ports & interfaces



Connectivity technology



Wired


DC-in jack



Yes


Ethernet LAN (RJ-45) ports



1


Power



Input current



2 A


Input voltage



5 V


Power consumption (typical)



3.1 Watt


Product dimensions



Net Weight (Product, kg)



0.21 kg


Product Depth



9.4 cm


Product Height



2.6 cm


Product Width



8.1 cm


Technical details



Harmonized System (HS) code



85176990


Vendor information



Brand Name


Planet


Warranty



3 Year(s)
