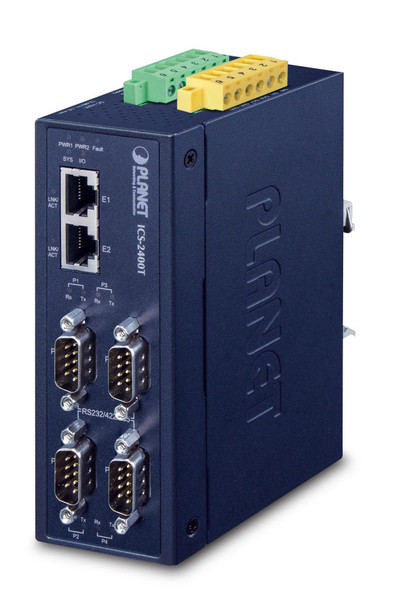

Planet ICS-2400T IP40 Industrial 4-Port RS232 ICS-2400T

Cost-effective Solution for RS232/422/485 Serial-to-Industrial Ethernet Application

PLANET ICS-2400T Serial Device Server is specially designed to convert RS232, RS422 or RS485 serial communication to Industrial Fast Ethernet networking so as to extend the network distance efficiently and inexpensively. There are two 10/100BASE-TX RJ45 ports available in the ICS-2400T for your network needs. The ICS-2400T is a time-saving and cost-effective solution for users and system integrators to quickly transform their serial devices into the Ethernet network with no need of replacing the existing serial devices and software system.

Remote Management
As the ICS-2400T provides an easy serial-to-Ethernet connectivity and connection to a TCP/IP network, the remote network system can thus be managed efficiently via its Web, telnet and VCOM management interfaces. It supports both application and serial operation modes for alarm or IP address connection, which saves the network administrator�s time in detecting and locating network problems without visual inspection of the cabling and devices. Multiple connection options are available for large networking environment as well.

Stable Performance under Difficult Environments
The ICS-2400T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curbside traffic control cabinets. Its operating temperature ranging from -40 to 75 degrees C allows the ICS-2400T to be placed in almost any difficult environment.

The ICS-2400T, equipped with compact IP40 standard metal case, allows either DIN-rail or wall mounting for efficient use of cabinet space. The ICS-2400T also provides an integrated power supply source with a wide range of voltages (12 to 48V DC) ideally suitable for worldwide operation with high availability applications requiring dual or backup power inputs.

Dual Power Input for High Availability Network System
The ICS-2400T features a strong dual power input system with wide-ranging voltages (12V~48V DC) incorporated into customer�s automation network to enhance system reliability and uptime. In the example below, when Power Supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the ICS-2400T via Power Supply 2 without any break of operation.

Effective Alarm Alert for Better Protection
The ICS-2400T comes with a Fault Alarm feature which can alert the users when there is something wrong with the Serial Device Server. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource. The ICS-2400T provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.

Digital Input and Digital Output for External Alarm
With digital input and digital output on its front panel, an external alarm can help users via the digital input to detect and log external device status (such as door intrusion detector), and then immediately send an event alarm to the administrator. The digital output can be used to alarm the administrator if the ICS-2400T serial port shows DCD, changed DSR or power failure.

Design



Certification



FCC 15 A, CE A IEC60068-2-32, IEC60068-2-27, IEC60068-2-6


Housing material



Metal


International Protection (IP) code



IP40


Product colour



Blue


RoHS compliance



Yes


Indication



LED indicators



Activity, Fault, Link, Power


Management features



Management protocols



IPv4, IPv6


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-40 - 75 �C


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Depth (package,cm)



58.5 cm


Gross Weight (Package, kg)



0.82 kg


Height (package,cm)



31.5 cm


Width (package,cm)



23 cm


Ports & interfaces



Cabling technology



10/100Base-T(X)


Ethernet LAN (RJ-45) ports



2


Power



Input voltage



12 - 48 V


Power source type



DC


Product dimensions



Net Weight (Product, kg)



0.66 kg


Product Depth



8.7 cm


Product Height



13.5 cm


Product Width



5 cm


Software



Server operating systems supported



Windows Server 2003


Windows operating systems supported



Windows 10, Windows 7, Windows 8, Windows XP


Sustainability



Sustainability certificates



RoHS


Technical details



Baud rate



921 Kbit/s


Certification



FCC 15 A, CE A IEC60068-2-32, IEC60068-2-27, IEC60068-2-6


Data bits



5, 6, 7, 8


Electrostatic Discharge (ESD) protection



15 kV


Ethernet LAN data rates



10, 100


Flow control support



Yes


Isolation



2 kV


Management protocols



IPv4, IPv6


Networking standards



IEEE 802.3, IEEE 802.3u, IEEE 802.3x


Parity bit



Even, Mark, Odd, Space


RS-232 signals



CTS, DCD, DSR, DTR, GND, RTS, RXD, TXD


RS-422 signals



GND, RxD+, RxD-, SGND, TxD+, TxD-


RS-485 signals



GND, RxD+, RxD-, SGND, TxD+, TxD-


Serial interface type



RS-232/422/485


Serial ports quantity



2


Stop bits



1, 1.5, 2


Surge protection voltage



1 kV


Sustainability certificates



RoHS


Vendor information



Brand Name


Planet


Warranty



5 Year(s)


Weight & dimensions



Dimensions (WxDxH)



50 x 87 x 135 mm
