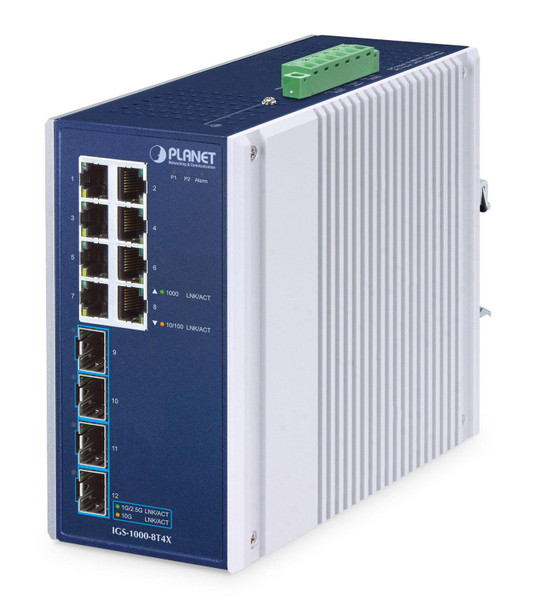

Planet IGS-1000-8T4X IP30 Industrial 8-Port IGS-1000-8T4X

Reliable Industrial Ethernet Networks with 10G Fiber and Plug and Play Configuration

Featuring Plug and Play and 10G SFP+ uplink ports, PLANET IGS-1000-8T4X Industrial-grade, DIN-rail type Unmanaged Gigabit Ethernet Switch is perfect for heavy industrial environments. It features 8 10/100/1000BASE-T ports and 4 1G/2.5G/10GBASE-X SFP+ fiber optic uplink ports that provide long-distance, high-speed and stable data transmission to a remote core network.

The IGS-1000-8T4X is designed with redundant power system and is able to operate reliably, stably and quietly in any hardened environment without affecting its performance and operating temperature ranging from -40 to 75 degrees C in a rugged IP30 metal housing. Though it includes robust features designed for industrial Ethernet networks, its Plug and Play makes configuration easy.


10Gbps Fiber Ports and Multiple Dual Speed Ports Deliver High-speed Networking

Featuring a 10Gbps uplink, the IGS-1000-8T4X is suitable for connecting to an industrial backbone or high-capacity servers. Operating flawlessly across an extensive temperature range, it guarantees a non-blocking switch fabric, delivering astonishing wire-speed throughput of up to 96Gbps. The 10G fiber port serves as a backbone for high-bandwidth applications, such as video streaming, cloud computing, and virtualization, ensuring seamless and swift data transmission. This transformative capability simplifies the process of industrial LAN upgrades, efficiently catering to escalating bandwidth requirements.


10G Fiber-optic Linking Capability Enables Extension of Network Deployment

The SFP+ slot of the IGS-1000-8T4X is compatible with 10GBASE-SR or 10GBASE-LR (Small Form Factor Pluggable) fiber-optic transceivers. The fiber optic uplink capability guarantees the throughput to all nodes hooked into the network and the 10 Gigabit Ethernet distance can be extended from 300 meters (multi-mode fiber cable) to 2/10/20/40/60/70/80 kilometers (single-mode fiber cable).


Dual Power Input for High Availability Network System

The IGS-1000-8T4X features a strong dual power input system with 9~48V DC to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-1000-8T4X via power supply 2 alternatively without any loss of operation.


Environmentally Hardened Design

With the IP30 metal industrial case, the IGS-1000-8T4X provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-1000-8T4X can be placed in almost any difficult environment.


Robust Protection

The IGS-1000-8T4X provides contact discharge of �6KV DC and air discharge of �8KV DC for Ethernet ESD protection. It also supports �6KV surge immunity to improve product stability and protects users� networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.



Learn more: https://www.planet.com.tw/en/product/igs-1000-8t4x

Data transmission



Jumbo frames support



Yes


MAC address table



16000 entries


Store-and-forward



Yes


Switching capacity



96 Gbit/s


Throughput



71.43 Mpps


Design



Certification



FCC Part 15 Class A, CE


DIN rail mounting



Yes


Housing material



Aluminium


International Protection (IP) code



IP30


LED indicators



Y, Yes


Product colour



Aluminium, Blue


Wall mountable



Yes


Management features



Switch type



Unmanaged


Network



Networking standards



IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Operational conditions



Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



-40 - 75 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-40 - 75 �C


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



8


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Installed SFP+ modules quantity



4


Power



DC input voltage



9 - 48 V


Power source



DC


Product dimensions



Net Weight (Product, kg)



1.211 kg


Product Depth



13.5 cm


Product Height



15.2 cm


Product Width



7.6 cm


Vendor information



Brand Name


Planet


Warranty



3 Year(s)
