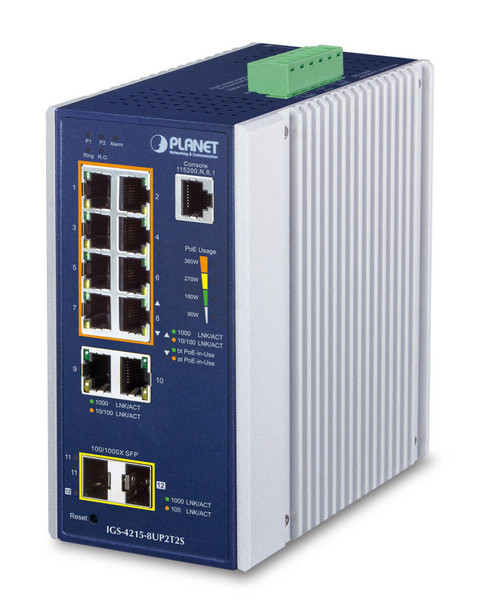

Planet IGS-4215-8UP2T2S IGS-4215-8UP2T2S IGS-4215-8UP2T2S

IP30 Industrial L2/L4 8-Port 10/100/1000T 802.3bt PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch (-40~75 degrees C, 8-port 95W PoE++, 802.3bt/Legacy/Force modes, dual redundant power input on 48~54VDC terminal block, SNMPv3, 802.1Q VLAN, IGMP Snooping, TLS, SSH, ACL, 250m Extend mode, supports ERPS Ring, CloudViewer app, MQTT and Cybersecurity feature)

Data transmission



Jumbo frames support



Yes


MAC address table



8000 entries


Store-and-forward



Yes


Switching capacity



24 Gbit/s


Throughput



17.85 Mpps


Design



Certification



FCC Part 15 Class A EN 55032 EN 55035 ICES-003 issue 7 IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)


DIN rail mounting



Yes


Housing material



Aluminium


International Protection (IP) code



IP30


LED indicators



Y, Yes


Product colour



Aluminium, Blue


Reset button



Yes


Wall mountable



Yes


Management features



ARP inspection



Yes


Cloud-managed



Yes


Quality of Service (QoS) support



Yes


Switch layer



L2/L4


Switch type



Managed


System event log



Yes


Traffic classification



Yes


Web-based management



Yes


Network



10G support



No


Auto MDI/MDI-X



Yes


Broadcast storm control



Yes


Flow control support



Yes


Full duplex



Yes


Link aggregation



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Rate limiting



Yes


Spanning tree protocol



Yes


VLAN support



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-40 - 75 �C


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Gross Weight (Package, kg)



1.101 kg


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



10


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Installed SFP modules quantity



2


Power



Power source



DC/PoE


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



1.091 kg


Product Depth



10.73 cm


Product Height



15.2 cm


Product Width



7.68 cm


Security



DHCP features



DHCP Option 82, DHCP relay, DHCP snooping


IGMP snooping



Yes


Vendor information



Brand Name


Planet
