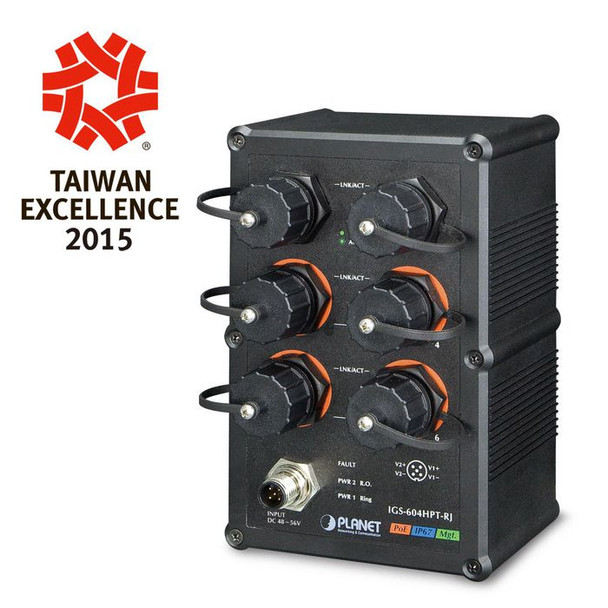

Planet IGS-604HPT-RJ IP67-rated Industrial L2+ IGS-604HPT-RJ

Suitable for Industrial Environment
PLANET IGS-604HPT-RJ, an Industrial Managed Ethernet Switch, comes with an IP67-rated industrial case, 4-port 10/100/1000T 802.3at PoE, 2-port 10/100/1000T, and static Layer 3 routing, providing a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. The IGS-604HPT-RJ can be easily mounted on a DIN rail or wall taking up less space. Each of the four Gigabit PoE+ ports provides 36-watt of power, which means a total power budget of up to 144 watts can be utilized simultaneously without considering the different types of PoE applications being employed. It also provides a quick, safe and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.

Waterproof and Dustproof RJ45 Ethernet Connector and Shielded Plug
The IGS-604HPT-RJ is equipped with a 6-port 10/100/1000BASE-T auto-negotiation waterproof and dustproof RJ45 connector with 4-port IEEE 802.3at PoE+ (Port 3 to port 6); each PoE port provides 36-watt PoE output. These shielded RJ45 plugs can make the general UTP cable waterproof and dustproof. When connected to the waterproof and dustproof RJ45 connector, it provides tight and strong connection, and ensures it comes with the industrial protection rating of IP67 capable of withstanding humidity, dirt, dust, shock, vibrations, heat and cold.

Environmentally Hardened Design
The IGS-604HPT-RJ is able to protect itself from dust and water ingress, and to operate under the temperature range from -40 to 75 degrees C. All these features ensure the highest level of reliability for mission-critical applications in any difficult environment.

Dual Power Input for High Availability Network System
The IGS-604HPT-RJ features a strong dual power input system (Dual 48V~56V DC) incorporated into customer�s automation network to enhance system reliability and uptime. For example, when DC Power 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-604HPT-RJ via DC Power 2 alternatively without any loss of operation.

Centralized Power Management for Gigabit Ethernet PoE Networking
To fulfill the needs of higher power required PoE network applications with Gigabit speed transmission, the IGS-604HPT-RJ features high-performance Gigabit IEEE 802.3af PoE (up to 15.4 watts) and IEEE 802.3at PoE+ (up to 36 watts) on all ports. It perfectly meets the power requirements of PoE VoIP phone, PoE Wireless AP and all kinds of PoE IP cameras such as IR, PTZ, speed dome cameras and even box type IP cameras with a built-in fan and heater for high power consumption.

The IGS-604HPT-RJ�s PoE capabilities also help to reduce deployment costs for network devices as a result of freeing from restrictions of power outlet locations. Power and data switching are integrated into one unit, delivered over a single cable and managed centrally. It thus eliminates cost for additional AC wiring and reduces installation time.

Built-in Unique PoE Functions for Surveillance Management
As a managed PoE Switch for surveillance network, the IGS-604HPT-RJ features intelligent PoE management functions:- PD Alive Check
- Scheduled Power Recycling
- SMTP/SNMP Trap Event Alert
- PoE Schedule

Intelligent Powered Device Alive Check
The IGS-604HPT-RJ can be configured to monitor a connected PD (Powered Device) status in real time via ping action. Once the PD stops working and it is without response, the IGS-604HPT-RJ will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD�s power source, thus reducing administrator management burden.

Scheduled Power Recycling
The IGS-604HPT-RJ allows each of the connected PDs to reboot at a specified time each week. Therefore, it will reduce the chance of PD crash resulting from buffer overflow.

SMTP/SNMP Trap Event Alert
Though most NVR or camera management software offers SMTP email alert function, the IGS-604HPT-RJ further provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, loss of PoE power or the rebooting response by the PD Alive Check process.

PoE Schedule for Energy Saving
Besides being used for IP surveillance, the IGS-604HPT-RJ is certainly applicable to build any PoE network including VoIP and wireless LAN. Under the trend of energy saving worldwide and contributing to the environmental protection on the Earth, the IGS-604HPT-RJ can effectively control the power supply besides its capability of giving high watts power. The �PoE schedule� function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs and enterprises save energy and budget.

Redundant Ring, Fast Recovery for Critical Network Applications
The IGS-604HPT-RJ supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer�s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain, simple Ring network, the recovery time of data link can be as fast as 20ms.

IPv6/IPv4 Dual Stack
Supporting both IPv6 and IPv4 protocols, the IGS-604HPT-RJ helps data centers, campuses, telecoms, and more to experience the IPv6 era with the lowest investment as its network facilities need not be replaced or overhauled if the IPv6 FTTx edge network is set up.

Layer 3 IPv4 and IPv6 VLAN Routing for Secure and Flexible Management
The IGS-604HPT-RJ not only provides ultra high transmission performance, and excellent layer 2 and layer 4 technologies, but also layer 3 IPv4/IPv6 VLAN routing feature which allows to crossover different VLANs and different IP addresses for the purpose of having a highly-secure, flexibly-managed and simple networking application.

Robust Layer 2 Features
The IGS-604HPT-RJ can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control and IGMP/MLD Snooping. Via the link aggregation of supporting ports, the IGS-604HPT-RJ allows the operation of a high-speed trunk to combine with multiple fiber ports and supports fail-over as well.

Powerful Security
The IGS-604HPT-RJ offers a comprehensive layer 2 to layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user, and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The IGS-604HPT-RJ also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

Excellent Traffic Control
The IGS-604HPT-RJ is loaded with powerful traffic management and QoS features to enhance connection services by telecoms and ISPs. The QoS features include wire-speed Layer 4 traffic classifiers and bandwidth limit that are particularly useful for multi-tenant units, multi-business units, Telco and network service providers� applications. It also empowers the industrial environment to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission.

Efficient and Secure Management
With built-in Web-based management interface, the IGS-604HPT-RJ L2+ Managed Switch offers an easy-to-use, platform-independent management and configuration facility which includes Web and SNMP management interfaces. The SNMP can be managed via any management software based on the standard of SNMP Protocol. For reducing product learning time, it offers Cisco-like command via Telnet and customer does not need to learn new console command. Moreover, it also offers secure remote management by supporting SSH, SSL and SNMP v3 connections which encrypt the packet content at each session.

Data transmission



Jumbo frames



9000


Jumbo frames support



Yes


MAC address table



8000 entries


Number of queues



8


Store-and-forward



Yes


Switching capacity



12 Gbit/s


Throughput



8.9 Mpps


Design



Certification



FCC Part 15 Class A, CE


DIN rail mounting



Yes


Housing material



Aluminium


International Protection (IP) code



IP67


LED indicators



Y, Yes


Product colour



Black


Reset button



Yes


Wall mountable



Yes


Management features



ARP inspection



Yes


Quality of Service (QoS) support



Yes


Switch layer



L2+


Switch type



Managed


System event log



Yes


Traffic classification



Yes


Web-based management



Yes


Multicast features



Multicast support



Yes


Network



10G support



No


Auto MDI/MDI-X



Yes


Broadcast storm control



Yes


Copper ethernet cabling technology



10BASE-T, 100BASE-T, 1000BASE-T


Flow control support



Yes


Full duplex



Yes


Link aggregation



Yes


MAC address auto-aging supported



Yes


MAC address auto-learning supported



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x


Number of VLANs



4095


Port mirroring



Yes


Spanning tree protocol



Yes


Virtual LAN features



Private VLAN, Tagged VLAN, Protocol-based VLAN


Operational conditions



Heat dissipation



545.9 BTU/h


Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-40 - 75 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 80 �C


Other features



Input voltage



48 - 56 V


Package dimensions



Depth (package,cm)



61 cm


Gross Weight (Package, kg)



1.54 kg


Height (package,cm)



26 cm


Width (package,cm)



38 cm


Performance



Harmonized System (HS) code



85176990


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



6


Basic switching RJ-45 Ethernet ports type



Gigabit Ethernet (10/100/1000)


Gigabit Ethernet (copper) ports quantity



6


Power



DC input voltage



48 - 56 V


Input voltage



48 - 56 V


Power consumption (max)



160 Watt


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) ports quantity



4


Total Power over Ethernet (PoE) budget



144 Watt


Product dimensions



Net Weight (Product, kg)



1.05 kg


Product Depth



6.83 cm


Product Height



16.3 cm


Product Width



10.3 cm


Security



Access Control List (ACL)



Yes


Authentication



Guest VLAN, MAC-based authentication, Port-based authentication


BPDU filtering/protection



Yes


IGMP snooping



Yes


IP-MAC-Port binding



Yes


Security algorithms



SNMPv3, SSH, SSL/TLS


SSH/SSL support



Yes


Vendor information



Brand Name


Planet


Warranty



5 Year(s)
