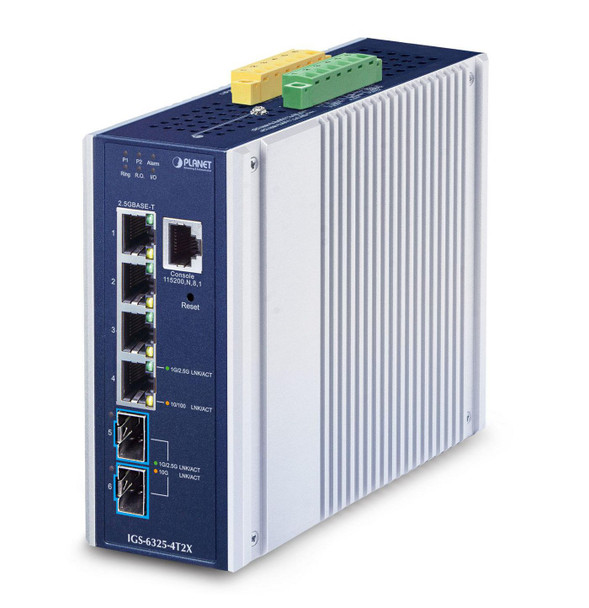

Planet IGS-6325-4T2X IP30 Industrial L3 4-Port IGS-6325-4T2X

IP30 Industrial L3 4-Port 2.5GBASE-T + 2-Port 10GBASE-X SFP+ Managed Ethernet Switch (-40 to 75 C, dual redundant power input on 9~48VDC terminal block, DIDO, ERPS Ring, 1588 PTP TC, Modbus TCP, Cybersecurity features, Layer 3 RIPv1/v2, OSPFv2/v3 dynamic routing, supports MQTT, supports 1000X, 2.5G SFP and 10G SFP+)

Data transmission



Jumbo frames



10000


Jumbo frames support



Yes


MAC address table



8000 entries


Store-and-forward



Yes


Switching capacity



60 Gbit/s


Throughput



44.462 Mpps


Design



Certification



FCC Part 15 Class A CE: ?EN55032 ?EN55035 IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration)


DIN rail mounting



Yes


Housing material



Aluminium


International Protection (IP) code



IP30


LED indicators



Y, Yes


Product colour



Aluminium, Blue


Reset button



Yes


Wall mountable



Yes


Management features



ARP inspection



Yes


Cloud-managed



Yes


Quality of Service (QoS) support



Yes


Switch layer



L3


Switch type



Managed


Web-based management



Yes


Network



10G support



Yes


Auto-negotiation



Yes


Flow control support



Yes


Full duplex



Yes


Half duplex



Yes


Link aggregation



Yes


MAC address auto-aging supported



Yes


MAC address auto-learning supported



Yes


Networking standards



IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ah, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z


Spanning tree protocol



Yes


Virtual LAN features



IP subnet�based VLAN, MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN


VLAN support



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-40 - 75 �C


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Depth (package,cm)



61 cm


Gross Weight (Package, kg)



1.5 kg


Height (package,cm)



26 cm


Width (package,cm)



37 cm


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



4


Basic switching RJ-45 Ethernet ports type



2.5G Ethernet (100/1000/2500)


Installed SFP+ modules quantity



2


Power



AC input voltage



24 V


DC input voltage



9 - 48 V


Power source



AC/DC


Product dimensions



Net Weight (Product, kg)



1.15 kg


Product Depth



13.5 cm


Product Height



13.5 cm


Product Width



6 cm


Security



SSH/SSL support



Yes


Vendor information



Brand Name


Planet
