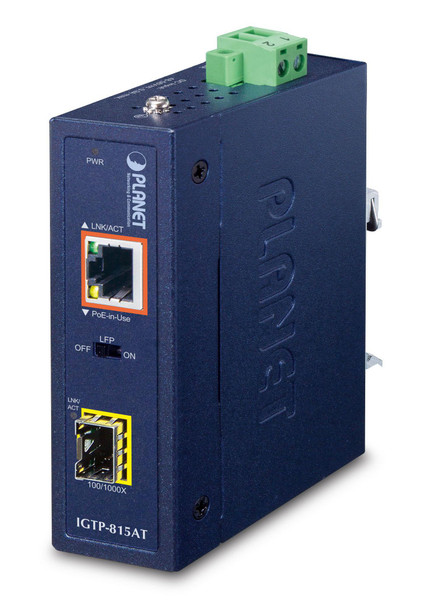

Planet IGTP-815AT IP30 Compact size Industrial IGTP-815AT

Ruggedly Built for Harsh Environments

PLANET IGTP-815AT is the smallest, industrial-grade Gigabit PoE+ Media Converter, featuring one 100/1000BASE-X SFP fiber port and one 10/100/1000BASE-T 802.3at PoE+ copper port in an IP30-rated rugged but compact-size case. Being able to operate under the temperature ranging from -40 to 75 degrees C, the IGTP-815AT provides reliable, stable and continuous long-range data transmission and can be installed in any harsh environment without taking space into consideration.

As the trend for an IIoT (Industrial Internet of Things) infrastructure is gradually in demand, the IGTP-815AT is especially designed to make the deployment of an industrial network easy as it comes with a Plug and Play feature. Besides, it is stable and reliable when it comes to fast data and power transmission.


IEEE 802.3at PoE Plus

Complying with the IEEE 802.3at Power over Ethernet Plus (PoE+) standard, the IGTP-815AT forwards Gigabit speed Ethernet data transmission and provides a maximum of 36-watt power output over an additional 100m UTP cable to a 802.3af/at PoE PD (powered device) installed in a remote area where sufficient and reliable power input is required. Users can easily upgrade their current networks without the need of software configuration.


Fiber-optic Link Capability Extends the Range of Network Deployment

The maximum distance between a PoE PSE (power sourcing equipment) and a PD via Ethernet UTP cable is 100 meters. To flexibly extend the PoE deployment range, the IGTP-815AT�s SFP slot supporting 100BASE-FX/1000BASE-X, SFP modules, and more can reach a transmission distance of up to 120km.


Interactive Network Detection

The IGTP-815AT can support LFP (Link Fault Passthrough) function via its built-in DIP switch. The LFP function includes Link Loss Carry Forward (LLCF) and Link Loss Return (LLR):

-?LLCF means when a device connected to the converter and the TP line loses the link, the converter�s fiber port will disconnect the link of transmission.
-?LLR means when a device connected to the converter and the fiber line loses the link, the converter�s fiber port will disconnect the link of transmission

Both of which can immediately alarm the administrators the issue from the link media and provide efficient solution to monitor the remote network.


Environmentally Hardened Design

The IGTP-815AT is specifically designed with durable components and strong housing case to operate reliably in electrically harsh and climatically demanding environments like plant floors or curbside traffic control cabinets. With wide operating temperature range of -40 to 75 degrees C, the IGTP-815AT is ideal for service providers, campuses and public areas to deploy outdoor PoE wireless access points, outdoor IP cameras or IP phones in any places easily and efficiently.


Robust Protection

The IGTP-815AT provides contact discharge of �6KV DC and air discharge of �8KV DC for Ethernet ESD protection. It also supports �6KV surge immunity to improve product stability and protects users� networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.


Flexible and Easy Installation with Limited Space

The compact sized IGTP-815AT is specially designed to be installed in a narrow environment, such as wall enclosure. It can be installed by fixed wall mounting or DIN rail, thereby making its usability more flexibly and easily in any space-limited location.

Design



Certification



FCC 15 A, CE


DIN rail mounting



Yes


Housing material



Metal


Internal



No


International Protection (IP) code



IP30


LED indicators



PoE, Power, System


Product colour



Blue


Network



Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Cable types supported



Cat3, Cat4, Cat5, Cat5e, Cat6


Converter input interface



10Base-T, 100Base-T, 1000Base-SX, 1000Base-T


Converter output interface



1000Base-BX, 1000Base-LX, 1000Base-SX


Duplex system



Full, Half


Ethernet interface type



Gigabit Ethernet


Ethernet LAN data rates



10, 100, 1000


Flow control support



Yes


Maximum data transfer rate



1000 Mbit/s


Networking standards



IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z


Operational conditions



Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



-40 - 75 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-40 - 85 �C


Package dimensions



Depth (package,cm)



43 cm


Gross Weight (Package, kg)



0.4 kg


Height (package,cm)



28 cm


Width (package,cm)



32 cm


Performance



Maximum transfer distance



100 m


Ports & interfaces



Connectivity technology



Wired


Ethernet LAN (RJ-45) ports



1


Fiber optic connector



SFP


Fiber ports quantity



1


Power over Ethernet (PoE) ports quantity



1


Power



External power adapter



Yes


Input voltage



48 - 56 V


Power consumption (max)



1.12 Watt


Power over Ethernet (PoE)



Yes


Total Power over Ethernet (PoE) budget



36 Watt


Product dimensions



Net Weight (Product, kg)



0.26 kg


Product Depth



7 cm


Product Height



10.4 cm


Product Width



3 cm


Technical details



Harmonized System (HS) code



85176990


Vendor information



Brand Name


Planet


Warranty



5 Year(s)
