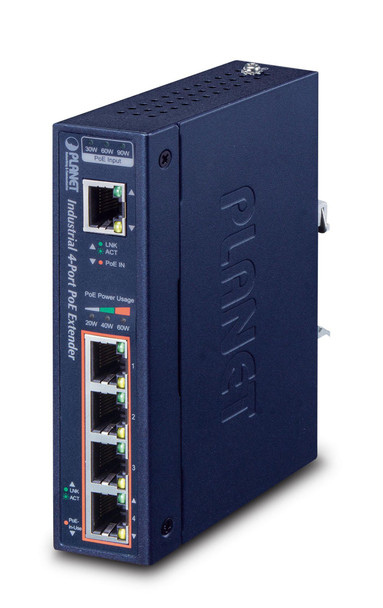

Planet IPOE-E174 IP30 Industrial 1-Port 60W IPOE-E174

PoE Solution for Long-reach Distance

PLANET IPOE-E174 is an industrial 1-Port Ultra PoE to 4-Port 802.3af/at Gigabit PoE Extender designed especially for point to multipoint PoE application. The IPOE-E174 can obtain a maximum of 60-watt PoE power from ultra PoE input port and supplies a maximum of 50-watt PoE power budget for 4 PoE output ports, extending both the reach of Gigabit Ethernet Data and IEEE 802.3at / 802.3af Power over Ethernet over the standard 100m (328 ft.) CAT. 5/5e/6 UTP cable to 200m up to 4 powered devices at the same time. The IPOE-E174 provides a simple solution for adding PoE ports without running more cabling and achieves more flexible network applications without requiring an external power adapter.

Environmentally Hardened Design

With industrial-level IP30 metal case, the IPOE-E174 provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IPOE-E174 can be placed in almost any difficult environment.

Intelligent LED Indicator for Real-time PoE Usage

The IPOE-E174 helps users to monitor the current status of PoE power usage easily by its advanced LED indication. Called �PoE Power Usage� shown in percentage, the front panel of the IPOE-E174 has three LEDs indicating 25, 50 and 75 percent of PoE power usage. With these LED indications, you can monitor the PoE power status of the IPOE-E174 efficiently.

Plug and Play, Easy Cabling Installation

The IPOE-E174 is quite easy to be installed by simple plug and play. It is used between a Power Source Equipment (PSE) and the Powered Device (PD). The IPOE-E174 injects power to the PD without affecting the data transmission performance. The IPOE-E174 offers a cost-effective and quick solution to doubling the standard range of PoE from 100 to 200 meters. The IPOE-E174 is designed in a compact mini box containing 5 RJ45 ports, of which the 1 "PoE IN" port functions as PoE (Data and Power) input and the 4 "PoE OUT" ports on the other side functions as PoE (Data and Power) output. The "PoE OUT" port is also the power injector to transmit DC voltage over the Cat. 5/5e/6 cable and transfer data and power simultaneously between the PSE and PD.

Design



Certification



FCC Part 15 Class A, CE


Housing material



Metal


LED indicators



Power


Product colour



Blue


Features



LED indicators



Power


Logistics data



Harmonized System (HS) code



85176990


Network



Cabling technology



10/100/1000


Ethernet interface type



Fast Ethernet, Gigabit Ethernet


Ethernet LAN data rates



10, 1000, 100


Power over Ethernet (PoE)



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-40 - 75 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 85 �C


Package dimensions (verified)



Depth Verified



15.2 cm


Gross Weight Verified



0.582 kg


Height Verified



5 cm


Width Verified



20.8 cm


Performance



Auto MDIX IEEE



Yes


Auto-negotiation



Yes


Ethernet LAN data rates



10, 1000, 100


MAC address table



2000 entries


Maximum transfer distance



200 m


Type



Network transmitter


Ports & interfaces



Ethernet LAN (RJ-45) ports



5


Power



Power consumption (typical)



60 Watt


Power over Ethernet (PoE)



Yes


Power over Ethernet (PoE) voltage



57 V


Product dimensions



Net Weight (Product, kg)



0.43 kg


Product Depth



8.5 cm


Product Height



13.5 cm


Product Width



3.2 cm


Technical details



Harmonized System (HS) code



85176990


Vendor information



Brand Name


Planet


Warranty



5 Year(s)


Weight & dimensions



Dimensions (WxDxH)



56 x 87.8 x 135 mm
