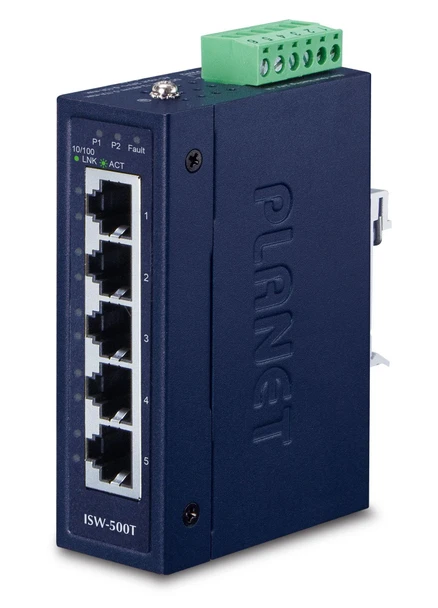

Planet ISW-500T IP30 Compact size 5-Port ISW-500T

Compact Size for More Practicability and Convenience
PLANET ISW-500T Industrial 5-Port 10/100TX Compact Ethernet Switch, suitable for industrial use, features 5 10/100Mbps auto-negotiation ports, IP30-rated rugged but compact case and a wide-ranging redundant power system (12~48V DC or 24V AC). The ISW-500T is able to operate in any harsh environment with operating temperature ranging from -40 to 75 degrees C.

As the trend for an IIoT (Industrial Internet of Things) infrastructure is gradually on demand, the ISW-500T is especially designed to make the deployment of an industrial network easy as it comes with a Plug and Play feature. Besides, it is stable and reliable when it comes to fast data and power transmission.

Low Power Consumption for Green Networking
The ISW-500T, adopting the advanced green networking technology, provides the link-on cable length power saving and link-down power saving methods. These features make the ISW-500T consume very low power in full load operation mode, which helps conserve energy effectively but maintains high performance efficiently.

With the Auto Power Saving and IEEE 802.3az Energy Efficient Ethernet (IEEE) Protocol, the ISW-500T can automatically detect cable link status and network traffic, and thus is able to adjust power consumption accordingly. It enables the switch to consume less power when it is less active.

Dual Power Input for High Availability Network System
The ISW-500T features a strong dual power input system with wide-ranging voltages (12V~48V DC or 24V AC) incorporated into customer�s automation network to enhance system reliability and uptime. In the example below, when power supply 1 fails to work, the hardware failover function will be activated automatically to keep powering the ISW-500T via power supply 2 alternatively without any loss of operation.

Robust Protection
The ISW-500T provides contact discharge of �6KV DC and air discharge of �8KV DC for Ethernet ESD protection. It also supports �4KV surge immunity to improve product stability and protects users� networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.

High Switch Performance
The ISW-500T offers a high-performance switch architecture. With the 5 10/100Mbps Fast Ethernet ports providing non-blocking switch fabric and wire-speed throughput as high as 1Gbps and the 1K MAC address table, the ISW-500T can perform wire-speed packet transfer without the risk of packet loss. The flow control function enables the ISW-500T to provide fast and reliable data transfer.

Plug and Play
All of the RJ45 copper interfaces in the ISW-500T support 10/100Mbps auto negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

Data transmission



MAC address table



1024 entries


Store-and-forward



Yes


Switching capacity



1 Gbit/s


Throughput



0.74 Mpps


Design



Certification



FCC Part 15 Class A, CE


DIN rail mounting



Yes


International Protection (IP) code



IP30


LED indicators



Activity, Fault, Link, Power


Product colour



Blue


Rack mounting



No


Wall mountable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Switch type



Unmanaged


Network



10G support



No


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Copper ethernet cabling technology



10BASE-T, 100BASE-TX


Flow control support



Yes


Full duplex



Yes


MAC address auto-aging supported



Yes


MAC address auto-learning supported



Yes


Networking standards



IEEE 802.3, IEEE 802.3x


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-40 - 75 �C


Storage temperature (T-T)



-40 - 85 �C


Other features



Terminal block port



Yes


Package dimensions (verified)



Depth Verified



15.4 cm


Gross Weight Verified



0.366 kg


Height Verified



5 cm


Width Verified



20.8 cm


Packaging data



Terminal block included



Yes


Wall mounting kit



Yes


Performance



Buffer size



448 KB


Harmonized System (HS) code



85176990


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



5


Basic switching RJ-45 Ethernet ports type



Fast Ethernet (10/100)


Power



AC input voltage



24 V


DC input voltage



12 - 48 V


Power consumption (max)



2 Watt


Power supply included



No


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



0.27 kg


Product Depth



10.4 cm


Product Height



3 cm


Product Width



7 cm


Security



Authentication



Port-based authentication


Vendor information



Brand Name


Planet


Warranty



5 Year(s)
