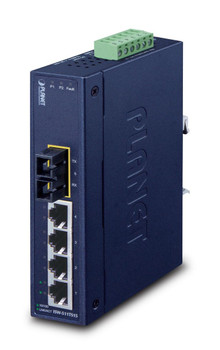

Planet ISW-621T IP30 Slim Type 4-P Industrial ISW-621T

Highly Convenient and Feasible Industrial Robust Switch

PLANET has upgraded two models named ISW-621T and ISW-621TS15 for use in environments with wide operating temperature. The capital �T� (ISW-621T and ISW-621TS15) shown in the model names means that they can support and operate under WIDE-TEMPERATURE environment ranging from -40 up to 75 degrees C. As we know the temperature in many places and countries of the world are lower than -10 degrees C, these two new models, ISW-621T and ISW-621TS15, will be the right products for Transportation, Manufacturing, Security and Surveillance network deployments in those harsh environments. The ISW-621T / ISW-621TS15 also provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets.

Flexibly Extendable Distance

They(the ISW-621T and ISW-621TS15) each include four 10/100Base-TX auto-negotiation ports and two 100Base-FX ports. The ISW-621T is equipped with 100Base-FX multi-mode SC interfaces for transmission distance up to 2km while the ISW-621TS15 is equipped with 100Base-FX single-mode SC interfaces for transmission distance up to 15km. The two 100Base-FX ports provide more flexibility for Transportation, Manufacturing, Security and Surveillance with distance extension without any limitation, making the ISW-621T / ISW-621TS15 suitable either for long distance (ISW-621TS15) or short distance (ISW-621T) network deployment.

Easy Installation and Wide Range of Power Usages

The ISW-621T and ISW-621TS15 are designed with a compact case that allows either DIN rail or panel mounting for the efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs.


Learn more: https://www.planet.com.tw/en/product/isw-621t-isw-621ts15

Data transmission



MAC address table



2048 entries


Store-and-forward



Yes


Switching capacity



1.2 Gbit/s


Throughput



0.89 Mpps


Design



Certification



FCC, CE


DIN rail mounting



Yes


Housing material



Metal


International Protection (IP) code



IP30


LED indicators



Y, Yes


Product colour



Blue


Rack mounting



No


Wall mountable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Switch layer



L2


Switch type



Unmanaged


Network



10G support



No


Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Copper ethernet cabling technology



10BASE-T, 100BASE-TX


Flow control support



Yes


Full duplex



Yes


MAC address auto-aging supported



Yes


MAC address auto-learning supported



Yes


Networking standards



IEEE 802.3, IEEE 802.3u, IEEE 802.3x


Operational conditions



Heat dissipation



54 BTU/h


Operating relative humidity (H-H)



5 - 90 %


Operating temperature (T-T)



-40 - 75 �C


Storage relative humidity (H-H)



5 - 90 %


Storage temperature (T-T)



-40 - 85 �C


Optical fiber



Fiber ethernet cabling technology



100BASE-FX


Fiber type



Multi-mode


RX sensitivity



-32 dB


Transmission distance (max)



2 km


Wavelength



1310 nm


Package dimensions



Depth (package,cm)



43 cm


Gross Weight (Package, kg)



0.64 kg


Height (package,cm)



27 cm


Width (package,cm)



32.5 cm


Performance



Harmonized System (HS) code



85176990


Ports & interfaces



Basic switching RJ-45 Ethernet ports quantity



4


Basic switching RJ-45 Ethernet ports type



Fast Ethernet (10/100)


Fast Ethernet (copper) ports quantity



4


Fiber ports quantity



2


Power



Power consumption (max)



16 Watt


Redundant power supply (RPS) support



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



0.48 kg


Product Depth



9.7 cm


Product Height



3.2 cm


Product Width



13.5 cm


Vendor information



Brand Name


Planet


Warranty



5 Year(s)
