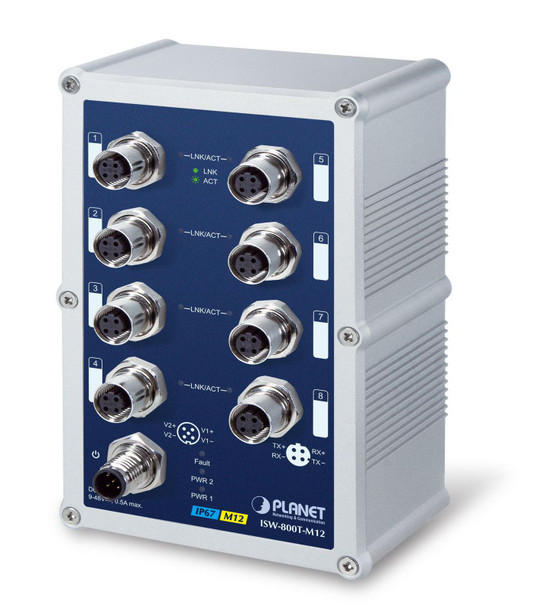

Planet ISW-800T-M12 IP67 rated 8-Port 10/100Mbps ISW-800T-M12

In the last few years, PLANET has launched various IP67 protected industrial products which can be deployed and provide stable Ethernet performance under difficult Industrial environments. To further satisfy some specific industrial environments, PLANET has released the ISW-800T-M12, a new series of Industrial Solutions, to provide higher level protection ability with the following features:
- Industrial Protected IP67 Metal Case
- Robust M12 Ethernet Connector
- Waterproof / Dustproof
- Wide Temperature Support

Industrial IP67 Metal Case and Robust M12 Ethernet Connector Interface
The ISW-800T-M12, the Industrial 8-Port 10/100Mbps M12 Fast Ethernet Switch, is designed with the IP67 industrial case, providing a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb side traffic control cabinets. The compact, IP67 standard metal case of the ISW-800T-M12 allows either DIN rail or wall mounting installation for efficient use of cabinet space.

The ISW-800T-M12 is equipped with eight 10/100Base-TX auto-negotiation ports and M12 connector interfaces. The M12 connector provides tightly, strong connection and guarantees stable Ethernet operation performance under high vibration and shock environment.

Data transmission



MAC address table



2048 entries


Store-and-forward



Yes


Switching capacity



1.6 Gbit/s


Throughput



1.19 Mpps


Design



Certification



FCC, CE


DIN rail mounting



Yes


Housing material



Aluminium


International Protection (IP) code



IP67


LED indicators



Y, Yes


Product colour



Blue, Grey


Rack mounting



No


Wall mountable



Yes


Logistics data



Harmonized System (HS) code



85176990


Management features



Switch layer



L2


Switch type



Unmanaged


Network



10G support



No


Auto-negotiation



Yes


Cable types supported



Cat5, Cat5e, Cat6


Copper ethernet cabling technology



10BASE-T, 100BASE-TX


Flow control support



Yes


Full duplex



Yes


MAC address auto-aging supported



Yes


MAC address auto-learning supported



Yes


Networking standards



IEEE 802.3, IEEE 802.3u, IEEE 802.3x


Operational conditions



Heat dissipation



13 BTU/h


Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-40 - 75 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 75 �C


Package dimensions



Depth (package,cm)



61 cm


Gross Weight (Package, kg)



1.52 kg


Height (package,cm)



27 cm


Width (package,cm)



38 cm


Packaging data



Manual



Yes


Wall mounting kit



Yes


Performance



Harmonized System (HS) code



85176990


Ports & interfaces



Basic switching RJ-45 Ethernet ports type



Fast Ethernet (10/100)


Fast Ethernet (copper) ports quantity



8


Power



Power consumption (typical)



4 Watt


Redundant power supply (RPS) support



Yes


Power over Ethernet (PoE)



Power over Ethernet (PoE)



No


Product dimensions



Net Weight (Product, kg)



1.01 kg


Product Depth



10.3 cm


Product Height



5.3 cm


Product Width



16.3 cm


Vendor information



Brand Name


Planet


Warranty



5 Year(s)
