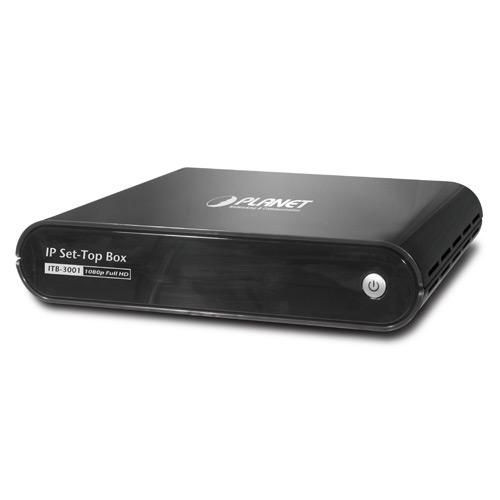

Planet ITB-3001 Cost Effective IP Set-Top Box ITB-3001

PLANET ITB-3001 High Definition IP Set Top Box is its latest IP STB that supports videos up to High Definition (HD) 1080P formats. With the next generation multimedia streaming technology provided by the ITB-3001, home users can enjoy high quality video entertainment without having to go to video rental stores or even use Pay-Per-View.

The ITB-3001 offers DLNA / UPnP AV services based on MPEG-4 / H.264 / DTS compression technology to reach wider audience or achieve higher density of service. It thus increases bandwidth efficiency. The IP STB allows the users to enjoy IP multicast video and home networking service.

IP Set-Top Box is the advanced customer premises equipment (CPE) that delivers streaming video, and audio directly from Internet to Teclos subscribers. The ITB-3001 is designed to meet service provider's deployment requirements of IP-based multimedia service delivery and it even can be installed easily by subscribers. Once the UPnP connection is set up, you can huddle on the sofa using supplied remote controller to search and enjoy your favorite Video, and Music in your home networking.

PLANET IP Set-Top Box guarantees the best multimedia experience for users with the advanced features such as real RMVB and DivX. In addition to its super analog video and audio outputs, the ITB-3001 also provides HDMI component outputs and Dolby digital to bring users high definition video display.

Certificates



Certification



FCC, CE


Digital Living Network Alliance (DLNA) certified



Yes


Features



Audio decoders



DTS 2.0, Dolby Digital Plus


Audio output channels



7.1 channels


Electronic Programme Guide (EPG)



Yes


On Screen Display (OSD)



Yes


Product colour



Black


File formats



Audio formats supported



AAC, AC3, ADPCM, DTS, FLAC, LPCM, MP1, MP2, OGG, RA-Lossless, WAV, WMA


Image formats supported



BMP, GIF, JPG, PNG, TIF


Subtitle formats supported



SMI, SRT, SSA, SUB, SUB+IDX


Video formats supported



AVC, DIVX, H.264, MPEG1, MPEG2, MPEG4, RM, RMVB, VC-1, WMV9, XVID


Network



Ethernet LAN



Yes


Ethernet LAN data rates



10, 100


Wi-Fi



No


Operational conditions



Operating relative humidity (H-H)



0 - 80 %


Operating temperature (T-T)



0 - 45 �C


Storage relative humidity (H-H)



0 - 80 %


Storage temperature (T-T)



-25 - 55 �C


Package dimensions



Depth (package,cm)



55 cm


Gross Weight (Package, kg)



1.02 kg


Height (package,cm)



34 cm


Width (package,cm)



49 cm


Packaging content



AC adapter included



Yes


Batteries included



Yes


Cables included



LAN (RJ-45), RCA


Manual



Yes


Remote control included



Yes


Ports & interfaces



Audio (L/R) out



1


DC-in jack



Yes


Ethernet LAN (RJ-45) ports



1


HDMI ports quantity



1


S/PDIF out port



Yes


USB 2.0 ports quantity



2


Product dimensions



Net Weight (Product, kg)



0.42 kg


Product Depth



14.5 cm


Product Height



4 cm


Product Width



20.4 cm


Storage



Built-in HDD



No


Card reader integrated



No


Technical details



Digital Living Network Alliance (DLNA) certified



Yes


Vendor information



Brand Name


Planet


Warranty



2 Year(s)


Video



Full HD



Yes


HD type



Full HD


Personal Video Recorder (PVR) included



No


Signal source



IPTV


Supported video modes



480p, 720p, 1080i, 1080p
