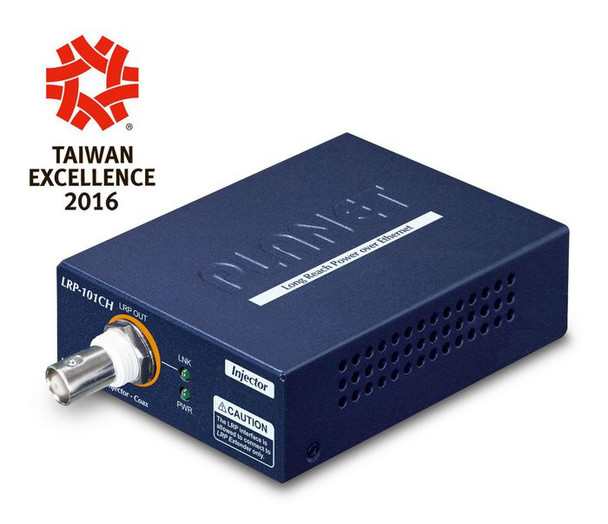

Planet LRP-101CH 1-Port Long Reach POE over LRP-101CH

PLANET Long Reach PoE solution is designed to extend IP Ethernet transmission and inject power simultaneously into a remote 802.3af/at PoE compliant powered device (PD) beyond the 100 meters distance limit of Ethernet.


Convenient PoE over Coaxial Extender in Harsh Environment

The LRP-101C-KIT, a PLANET Long Reach PoE solution, is a Single-port PoE over Coaxial Extender Kit featuring long range data and power transmission for distance up to 1,000m (3,280ft.) over coaxial cable, and another 100m over Ethernet cable to remote PoE IP camera, PoE wireless AP or access control systems complied with 802.3af/at PoE. The LRP-101C-KIT provides point to point application for easy plug-n-play operation and deployment in climatically demanding environments with wide temperature range from -20 to 70 degrees C. Without the problem of power source, it makes the installation of remote PoE powered devices easier and more efficiently.


Composition of Long Reach PoE over Coaxial Extender Kit

The LRP-101C-KIT consists of a Long Reach PoE injector and a Long Reach PoE extender set which can work in pair anywhere on your network infrastructure. It contains two brand-new products:
? LRP-101CH: 1-Port 10/100TX PoE PD + 1-Port Coax Long Reach PoE Injector
? LRP-101CE: 1-Port 10/100TX PoE PSE + 1-Port Coax Long Reach PoE Extender

The LRP-101CH transmits data and power over coaxial cable to the LRP-101CE, which can be located as far as 1,000m away. It will then deliver the data and power output with a maximum of up to 25 watts to a PoE PD over Ethernet cable, thus expediting the IP surveillance network or wireless LAN infrastructure in long distance. Both of the two products come in a compact but rugged metal housing. Their wall-mounted design fits easily in any space-limited location.


IP Ethernet and Power over Long Existing Coaxial Cable

A normal UTP cable can only be extended up to 100 meters, but the LRP-101C-KIT can extend PoE networking up to 1,000 meters (3,280ft.) over existing 75 ohm coaxial cable with stable, high-quality video transmission. It eliminates the need for additional remote site power while allowing a single power source to provide power to both LRP extenders and the PoE IP camera at long range.


Stable Operating Performance under Difficult Environments

PLANET Long Reach PoE Extender Kit is the perfect solution for distance extension for PoE or non-PoE networking for warehouses, parking lots, campuses, casinos, and many more. They can operate stably under temperature ranging from -20 to 70 degrees C to enable the users to conveniently operate the kit in almost any location.


Plug-n-play Installation

With the plug and play feature, PLANET Long Reach PoE Extender Kit can be used immediately without the need of configuration and is also compliant with all kinds of IP network protocols. Moreover, the rich diagnostic LEDs on the front panel show the operating status of the individual port and the whole system, enabling the administrator to efficiently manage the network.

Design



Certification



FCC Part 15 Class A, CE


DIN rail mounting



Yes


LED indicators



Y, Yes


Product colour



Blue


Stackable



Yes


Wall mountable



Yes


Features



Certification



FCC Part 15 Class A, CE


LED indicators



Yes


Product colour



Black


Wall mountable



Yes


Network



Auto MDI/MDI-X



Yes


Auto-negotiation



Yes


Cable standard



Cat5e/Cat6/Cat6a


Cable types supported



Cat5e, Cat6, Cat6a


Ethernet interface type



Fast Ethernet


Ethernet LAN data rates



10, 100


Networking standards



IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u


Power over Ethernet (PoE)



Yes


Operational conditions



Operating relative humidity (H-H)



5 - 95 %


Operating temperature (T-T)



-20 - 70 �C


Storage relative humidity (H-H)



5 - 95 %


Storage temperature (T-T)



-40 - 75 �C


Other features



Ethernet interface type



Fast Ethernet


Ethernet LAN (RJ-45) ports



1


Package dimensions



Depth (package,cm)



58 cm


Gross Weight (Package, kg)



0.4 kg


Height (package,cm)



31 cm


Width (package,cm)



37 cm


Packaging content



Number of products included



1 pc(s)


Performance



Harmonized System (HS) code



85176990


Ports & interfaces



DC-in jack



Yes


Ethernet LAN (RJ-45) ports



1


Power



AC adapter input voltage



48 - 56 V


Power supply included



No


Power over Ethernet (PoE)



Power over Ethernet (PoE)



Yes


Product dimensions



Net Weight (Product, kg)



0.2 kg


Product Depth



7 cm


Product Height



2.6 cm


Product Width



9.4 cm


Vendor information



Brand Name


Planet


Warranty



3 Year(s)


Weight & dimensions



Dimensions (WxDxH)



94 x 70 x 26 mm
