Planet

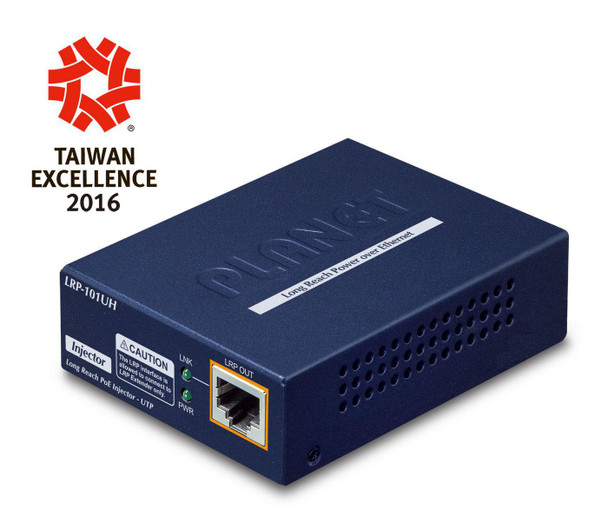

Planet LRP-101UH 1-Port Long Reach POE over LRP-101UH
- UPC:
- 4711605282680
- MPN:
- LRP-101UH
- Condition:
- New
- Availability:
- Available to Order: 3 - 4 weeks leadtime
Description
PLANET Long Reach PoE solution is designed to extend IP Ethernet transmission and inject power simultaneously into a remote 802.3af/at PoE compliant powered device (PD) beyond the 100 meters distance limit of Ethernet.
Convenient PoE over UTP Extender in Harsh Environment
The LRP-101U-KIT, a PLANET Long Reach PoE solution, is a Single-port PoE over UTP Extender Kit featuring long range data and power transmission for distance up to 500m (1,640ft.) over UTP cable, and another 100m over Ethernet cable to remote PoE IP camera, PoE wireless AP or access control systems complied with 802.3af/at PoE. The LRP-101U-KIT provides point to point application for easy plug-n-play operation and deployment in climatically demanding environments with wide temperature range from -20 to 70 degrees C. Without the problem of power source, it makes the installation of remote PoE powered devices easier and more efficiently.
Composition of Long Reach PoE over UTP Extender Kit
The LRP-101U-KIT consists of a Long Reach PoE injector and a Long Reach PoE extender set which can work in pair anywhere on your network infrastructure. It contains two brand-new products:? LRP-101UH: 1-Port 10/100TX PoE PD + 1-Port UTP Long Reach PoE Injector
? LRP-101UE: 1-Port 10/100TX PoE PSE + 1-Port UTP Long Reach PoE Extender
The LRP-101UH transmits data and power over UTP cable to the LRP-101UE, which can be located as far as 500m away. It will then deliver the data and power output with a maximum of up to 25 watts to a PoE PD over Ethernet cable, thus expediting the IP surveillance network or wireless LAN infrastructure in long distance. Both of the two products come in a compact but rugged metal housing. Their wall-mounted design fits easily in any space-limited location.
IP Ethernet and Power over Long UTP or Twisted-pair Cable
A normal UTP cable can only be extended up to 100 meters, but the LRP-101U-KIT can extend PoE networking up to 500 meters (1,640ft.) over long 4-pair UTP cable or up to 300 meters (1,000ft.) over an existing 1-pair twisted-pair cable, such as telephone wire, with stable, high-quality video transmission. It eliminates the need for additional remote site power while allowing a single power source to provide power to both LRP extenders and the PoE IP camera at long range.
Stable Operating Performance under Difficult Environments
PLANET Long Reach PoE Extender Kit is the perfect solution for distance extension for PoE or non-PoE networking for warehouses, parking lots, campuses, casinos, and many more. They can operate stably under temperature ranging from -20 to 70 degrees C to enable the users to conveniently operate the kit in almost any location.
Plug-n-play Installation
With the plug and play feature, PLANET Long Reach PoE Extender Kit can be used immediately without the need of configuration and is also compliant with all kinds of IP network protocols. Moreover, the rich diagnostic LEDs on the front panel show the operating status of the individual port and the whole system, enabling the administrator to efficiently manage the network.
Design
Certification
FCC Part 15 Class A, CE
DIN rail mounting
Yes
LED indicators
Y, Yes
Product colour
Blue
Stackable
Yes
Wall mountable
Yes
Features
Certification
FCC Part 15 Class A, CE
LED indicators
Yes
Product colour
Black
Wall mountable
Yes
Network
Auto MDI/MDI-X
Yes
Cable standard
Cat5e/Cat6/Cat6a
Cable types supported
Cat5e, Cat6, Cat6a
Ethernet interface type
Fast Ethernet
Ethernet LAN data rates
10, 100
Networking standards
IEEE 802.3, IEEE 802.3at, IEEE 802.3u
Power over Ethernet (PoE)
Yes
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-20 - 70 �C
Storage relative humidity (H-H)
5 - 95 %
Storage temperature (T-T)
-40 - 75 �C
Other features
Ethernet LAN (RJ-45) ports
1
Package dimensions (verified)
Depth Verified
13.8 cm
Gross Weight Verified
0.356 kg
Height Verified
7.1 cm
Width Verified
20.5 cm
Packaging content
Number of products included
1 pc(s)
Performance
Harmonized System (HS) code
85176990
Ports & interfaces
DC-in jack
Yes
Ethernet LAN (RJ-45) ports
1
Power
AC adapter input voltage
48 - 56 V
Power supply included
No
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Product dimensions
Net Weight (Product, kg)
0.2 kg
Product Depth
7 cm
Product Height
2.6 cm
Product Width
9.4 cm
Vendor information
Brand Name
Planet
Warranty
3 Year(s)
Weight & dimensions
Dimensions (WxDxH)
94 x 70 x 26 mm
View AllClose
Convenient PoE over UTP Extender in Harsh Environment
The LRP-101U-KIT, a PLANET Long Reach PoE solution, is a Single-port PoE over UTP Extender Kit featuring long range data and power transmission for distance up to 500m (1,640ft.) over UTP cable, and another 100m over Ethernet cable to remote PoE IP camera, PoE wireless AP or access control systems complied with 802.3af/at PoE. The LRP-101U-KIT provides point to point application for easy plug-n-play operation and deployment in climatically demanding environments with wide temperature range from -20 to 70 degrees C. Without the problem of power source, it makes the installation of remote PoE powered devices easier and more efficiently.
Composition of Long Reach PoE over UTP Extender Kit
The LRP-101U-KIT consists of a Long Reach PoE injector and a Long Reach PoE extender set which can work in pair anywhere on your network infrastructure. It contains two brand-new products:? LRP-101UH: 1-Port 10/100TX PoE PD + 1-Port UTP Long Reach PoE Injector
? LRP-101UE: 1-Port 10/100TX PoE PSE + 1-Port UTP Long Reach PoE Extender
The LRP-101UH transmits data and power over UTP cable to the LRP-101UE, which can be located as far as 500m away. It will then deliver the data and power output with a maximum of up to 25 watts to a PoE PD over Ethernet cable, thus expediting the IP surveillance network or wireless LAN infrastructure in long distance. Both of the two products come in a compact but rugged metal housing. Their wall-mounted design fits easily in any space-limited location.
IP Ethernet and Power over Long UTP or Twisted-pair Cable
A normal UTP cable can only be extended up to 100 meters, but the LRP-101U-KIT can extend PoE networking up to 500 meters (1,640ft.) over long 4-pair UTP cable or up to 300 meters (1,000ft.) over an existing 1-pair twisted-pair cable, such as telephone wire, with stable, high-quality video transmission. It eliminates the need for additional remote site power while allowing a single power source to provide power to both LRP extenders and the PoE IP camera at long range.
Stable Operating Performance under Difficult Environments
PLANET Long Reach PoE Extender Kit is the perfect solution for distance extension for PoE or non-PoE networking for warehouses, parking lots, campuses, casinos, and many more. They can operate stably under temperature ranging from -20 to 70 degrees C to enable the users to conveniently operate the kit in almost any location.
Plug-n-play Installation
With the plug and play feature, PLANET Long Reach PoE Extender Kit can be used immediately without the need of configuration and is also compliant with all kinds of IP network protocols. Moreover, the rich diagnostic LEDs on the front panel show the operating status of the individual port and the whole system, enabling the administrator to efficiently manage the network.
Design
Certification
FCC Part 15 Class A, CE
DIN rail mounting
Yes
LED indicators
Y, Yes
Product colour
Blue
Stackable
Yes
Wall mountable
Yes
Features
Certification
FCC Part 15 Class A, CE
LED indicators
Yes
Product colour
Black
Wall mountable
Yes
Network
Auto MDI/MDI-X
Yes
Cable standard
Cat5e/Cat6/Cat6a
Cable types supported
Cat5e, Cat6, Cat6a
Ethernet interface type
Fast Ethernet
Ethernet LAN data rates
10, 100
Networking standards
IEEE 802.3, IEEE 802.3at, IEEE 802.3u
Power over Ethernet (PoE)
Yes
Operational conditions
Operating relative humidity (H-H)
5 - 95 %
Operating temperature (T-T)
-20 - 70 �C
Storage relative humidity (H-H)
5 - 95 %
Storage temperature (T-T)
-40 - 75 �C
Other features
Ethernet LAN (RJ-45) ports
1
Package dimensions (verified)
Depth Verified
13.8 cm
Gross Weight Verified
0.356 kg
Height Verified
7.1 cm
Width Verified
20.5 cm
Packaging content
Number of products included
1 pc(s)
Performance
Harmonized System (HS) code
85176990
Ports & interfaces
DC-in jack
Yes
Ethernet LAN (RJ-45) ports
1
Power
AC adapter input voltage
48 - 56 V
Power supply included
No
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
Product dimensions
Net Weight (Product, kg)
0.2 kg
Product Depth
7 cm
Product Height
2.6 cm
Product Width
9.4 cm
Vendor information
Brand Name
Planet
Warranty
3 Year(s)
Weight & dimensions
Dimensions (WxDxH)
94 x 70 x 26 mm
Additional Information
Shipping: |
Available to Order - Call for ETA |
Delivery: |
Available to Order - Call for ETA |
