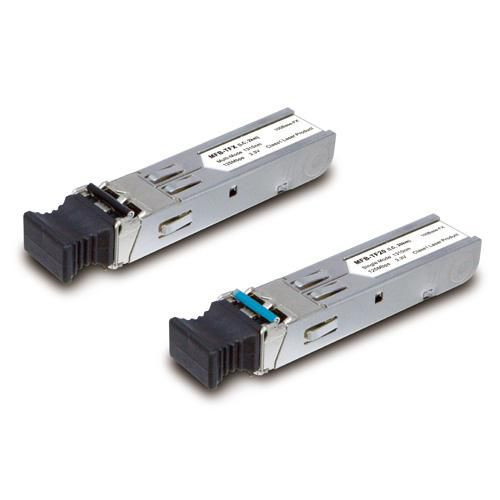

Planet MFB-F40 Single Mode 40KM. 100Mbps MFB-F40

The MFB family consists of Small Form Factor Pluggable (SFP) transceiver modules that are specifically designed for high performance integrated duplex data link over single mode optical fiber. These transceiver modules are compliant with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without the interruption of the host equipment operation.

The MFB SFP transceivers using a long wavelength (1310nm) FP LD enable data transmission up to 2km on a multimode optical fiber and up to 60km on a single mode optical fiber.

To meet the increasing demand of Industrial Ethernet fiber solution, Planet has released the MFB-T 100Base-FX transceiver series that can operate reliably in electrically harsh, climatically demanding, and wide temperature range (-40? to 75?) environment. The MFB-T 100Base-FX transceiver series provides easy and fast 100Base-FX connection for Planet wide temperature industrial equipment.

Operational conditions



Operating temperature (T-T)



0 - 60 �C


Package dimensions



Depth (package,cm)



7 cm


Gross Weight (Package, kg)



0.05 kg


Height (package,cm)



2.65 cm


Width (package,cm)



12.6 cm


Performance



Cabling technology



100Base-FX


Fiber optic connector



LC


Harmonized System (HS) code



85369010


Interface type



SFP


Maximum data transfer rate



100 Mbit/s


Maximum transfer distance



40000 m


Multi-mode fiber (MMF) supported



No


Networking standards



IEEE 802.3, IEEE 802.3u


SFP transceiver type



Fiber optic


Single-mode fiber (SMF) supported



Yes


Wavelength



1310 nm


Product dimensions



Net Weight (Product, kg)



0.04 kg


Vendor information



Brand Name


Planet


Warranty



3 Year(s)
